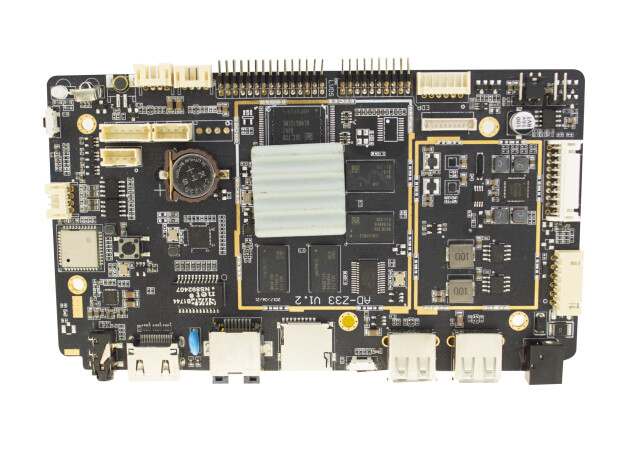

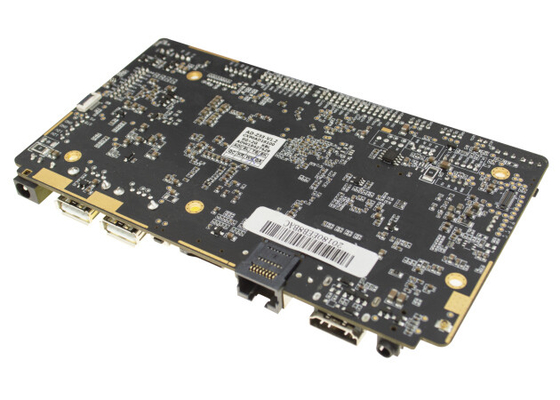

Android system RK3288 embedded board USB/ETHERNET/WIFI/BT/ controller board
Specification
|
CPU
|
Rockchip RK3288 Quad core Cortex-A17, Quad core GPU Mali-T764
|
|
Frequency
|
2.2 GHz
|
|
RAM
|
DDR3 2G/4G optional
|
|
EMMC
|
EMMC 8GB/16G/32G optional(standard 8GB,support NAND FLASH)
|
|
Interface of monitor
|
LVDS(single way,6 bit two-way,8 bit two-way).Resolution max 1920x1080,support 7"-84" monitar
|
|
EDP 2.0, Resolution max:support 2K screen
|
|
Mainboard backlight
|
Support 3.3V/5V/12V(optional)
|
|
Touch Screen
|
I2C interface(support resistive touch, capacitive touch)
Support USB IR multi touch,sonic multi touch,optical multi touch
|
|
Network
|
RJ45 interface, ethernet 10/100/1000M
|
|
Wi-Fi 802.11b/g/n/ ac, BT5.2
|
|
Image rotation
|
Support 0°, 90°, 180°, 270°, manual control or automatic, gravity
|
|
RTC
|
internal battery for Real time clock
|
|
interfaces
|
Support MIPI camera,max 5MP
|
|
Support USB camera, max 2MP
|
|
USB HOST x 5,USB OTG x 1
|
|
Serial ports x 3, support external devices(NFC module, printer, card reader etc.).
|
|
IO ports x 3
|
|
TF card slot, support 32GB max
|
|
D amplifier:3W*2 8Ω,support microphone
|
|
2.0
|
|
Audio
|
MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP
|
|
Video
|
Support H.264,MPEG2,VP6,VP8,MVC, 2160P@24FPS decoding, . on-line video such as YouTube, max support 1080P,HTML5 playback,Flash10.1
playback
|
|
|
Support JPG,BMP,PNG etc. picture formats, browse, orientation, slides, magnify
|
|
Power supply
|
input:AC100-240V.50-60HZ, output: DC12V 3A
|
Applications:
The Sunchip AD-Z33 RK3288 Board is a perfect solution for industrial control boards, android 10 mainboards, all-in-one PCs, and industrial computer boards. With Rockchip RK3288 as the central processing unit, it is able to perform various tasks efficiently and reliably. It can display output with LVDS/EDP/MIPI/HD interface, and features Android 7-10 Version operating system. It also offers 2GB/4GB RAM and DC 12V/2A power supply.
The Sunchip AD-Z33 RK3288 Board has obtained CE, ROHS, FCC, ISO9001 certifications, and is available with minimum order quantity of 2pcs. The price is negotiable, and it is packaged in 60pcs/Carton. Samples sent out 1-7 days, while mass production lead time is 15-30 days. The payment terms are 100% T/T for samples, and negotiable for mass production. The manufacturer claims a supply ability of 10,000pcs/Month.
Support and Services:
RK3288 Board Technical Support and Service
- 24/7 online technical support for customers
- Email and telephone technical support
- Software updates and firmware upgrades
- Hardware repairs and replacements
- On-site repairs and maintenance services
- Training and user manuals
- Free technical advice and troubleshooting
About Sunchip :
SUNCHIP is an OEM / ODM factory, customizing products to tailor your needs is our strength and mission, over 130 employees’ team that including over 70 research and development engineers, who can provide services and solutions in electronic Android mainboard design for digital signage industries and domains as it is becoming a critical function in the product development life cycle, diverse categories of embedded systems such as industrial automation, consumer electronics, embedded digital signage devices and exhibition display screen.
We focus on Rockchip chipsets solution and in-depth development, also deep customization of Android OS; Specialized on LCD Digital Signage & Android ARM Board.
Sunchip is a national high-tech enterprise with various patents. Our factory runs under the ISO 9001 & ISO 14001 certification. Our products fully completely with CE, RoHS and FCC certifications.
Sunchip has become the ODM / OEM partner of a number of world-class companies. Our products have been exported to over eighty worldwide countries.We do the best we can consistently to provide excellent quality products and one-stop services for all customers.
We are looking forward to cooperating, developing and growing with you sincerely.
[you can also tell us your requirements, so that we advise you a matched solution]
1) Q: Is SUNCHIP a factory or simply a trading company?
A: We are a TRUE OEM/ODM factory. Please read our COMPANY PROFILE, for more information on this issue.
2) Q: What payment methods are available to me?
A: We accept most of the payment methods: accept VISA, Pay Later,T/T,Western Union,Paypal and Cash.
3) Q: How long is the warranty time?
A: 1 Year.
4) Q: What are the shipment terms and delivery times of your company?
A: Delivery / production time is directly affected by the size of the order. Also depending in which season you are shipping.
5) Q: Do you give any discounts ?
A: Prices are directly affected by the quantity. We have many ways to help our partners when starting the sample processes. Make sure to ask our sales on how we can make you save some charges.
6) Q: I would like to add my company logo on your products, is this possible?
A: SURE.We customize on a regular basis products for many large retailers and brands. If your order is at the below 10 units, we can consider this as a SAMPLE order, some fees might apply for the logo prints.Different methods are used for logos, please ask our sales for more information this issue, we will surely find the right solution for you!
