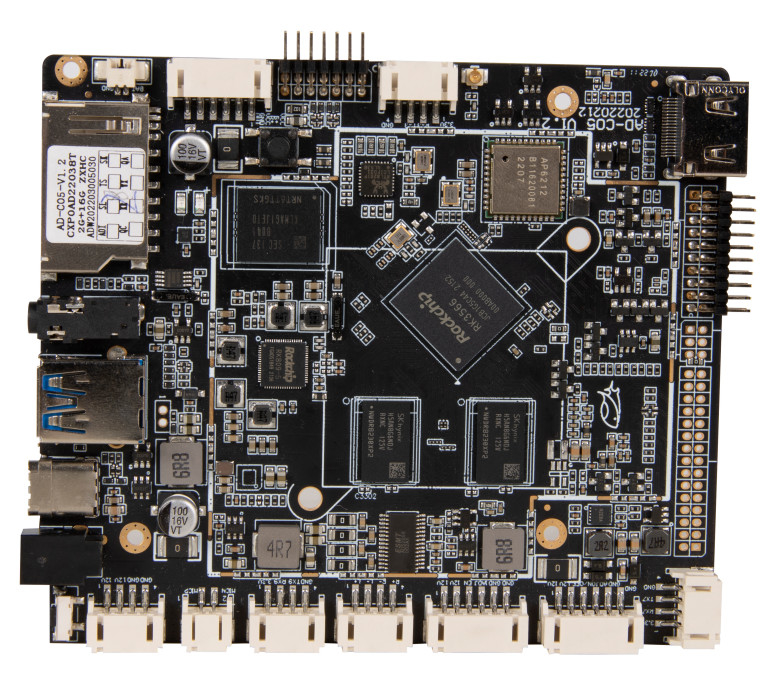

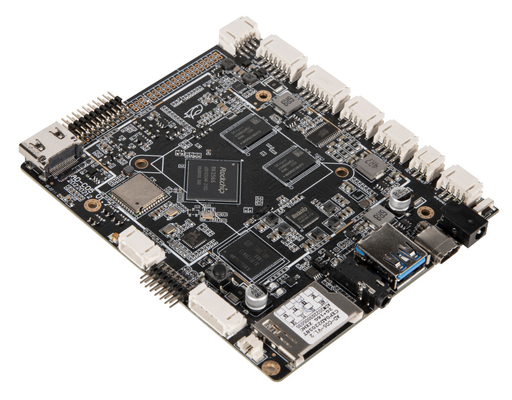

RK3566 Android 11 Embedded System Board WIFI Ethernet PoE Optional 7"-84" Display

RK3566 Android 11 Embedded System Board WIFI Ethernet PoE Optional 7"-84" Display
RK3566 Android 11 Embedded System Board WIFI Ethernet PoE Optional 7"-84" Display RK3566 Android 11 Embedded System Board WIFI Ethernet PoE Optional 7"-84" Display RK3566 Android 11 Embedded System Board WIFI Ethernet PoE Optional 7"-84" Display RK3566 Android 11 Embedded System Board WIFI Ethernet PoE Optional 7"-84" Display

Large Image :  RK3566 Android 11 Embedded System Board WIFI Ethernet PoE Optional 7"-84" Display

Product Details:
Place of Origin: China
Brand Name: ADW
Model Number: AD-C05
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: USD40~60/pc
Packaging Details: 1pc/bubble bag, proper qty in a carton
Delivery Time: 1~3 days if have stock, 30days if no stock
Payment Terms: T/T, Western Union
Supply Ability: 1,000,000pcs per month

RK3566 Android 11 Embedded System Board WIFI Ethernet PoE Optional 7"-84" Display

Description
CPU: Rockchip RK3566 Quad-core 64-bit Cortex-A55 GPU Mali-G52 RAM: LPDDR3 1G/2G Optional
EMMc: 8GB/16G/32G/64G Optional Diaplay Interface: LVDS,EDP,MIPI
Touch Screen: I2C Interface Main Frequency: Up To 1.8GHz
The Internet: RJ45,WIFI,BT
High Light:

embedded computer boards

,

embedded cpu boards

,

rk3399 4g lte embedded board

RK3566 Android 11 Embedded System Board WIFI Ethernet PoE Optional 7"-84" Display

Overview for Embedded System Board:

Intelligent industrial board, using Rockchip RK3399 six-core chip program to support Google Android 7.0 above system. Powerful computing power. Support H.265 4K video playback. Rich interface, enhanced power management circuit. For intelligent remote network control: industrial, medical, large advertising machine, educational video terminals and other equipment.

Characteristic for Embedded System Board:

  • Support 7-inch to 84-inch LVDS interface display (point-to-point full HD display 1920 * 1080).
  •  A variety of interactive mode interface: capacitive touch, infrared touch, infrared remote control, USB mouse and keyboard, multi-point optical touch.
  •  A variety of network interfaces: Ethernet, wireless WiFi, Bluetooth.
  •  Multi-channel USB interface, serial port, IO port output.
  •  Support 4K video play.
  •  Strong anti-electromagnetic interference and electromagnetic compatibility.

Sunchip has more than 10-year experience on PCBA design and mass-production, also passed the ISO9001 certification. Our office &factory have more than 3500 square meters.

Sunchip can provide one-stop service, from PCB layout, prototype, production, PCBA SMT, testing, housing design, assembly, software customization, QC control, after-sale etc.



Basic hardware specifications for Embedded System Board:

CPU Rockchip RK3566 Quad-core 64-bit Cortex-A55 GPU Mali-G52
Main frequency Up to 1.8GHz
RAM LPDDR3 1G/2G Optional
Built-in storage capacity EMMC 8GB/16G/32G/64G Optional

Display interface





LVDS screen interface (single channel, 6-digit dual-channel, 8-digit dual-channel). Support maximum resolution 1920x1080, support 7"-84" display
EDP screen interface
MIPI screen interface
Screen voltage Support 3.3V/5V/12V optional
Touch screen

Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch).

Support USB multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch.

The internet



With RJ45 interface, support 10/100 Ethernet.
Equipped with Wifi&BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0
Image rotation Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation, support gravity sensor function
Real Time Clock External real-time clock power supply battery
Interface device Support MIPI interface camera, up to 500W pixels
2 USB HOST (secondary board), 1 USB 3.0 (support usb camera @500W usb printer, U disk, mouse, keyboard, standard USB peripherals)
3 groups of serial ports. Support external serial port device module (3G module, NFC module, printer, card reader, etc.)
SD card, maximum support 32GB
Class D power amplifier: 3W*2 8 ohms, support microphone
HDMI 2.0 output
Audio MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP formats
Video Support 4K 60fps H.265/H.264/VP9 video decoding; support 1080P 100fps H.265/H.264 video encoding; support 8M ISP
Picture Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function
Power Adapter Input: AC100-240V.50-60HZ, output: DC12V 3A

Basic software for Embedded System Board:

Operating system Android 11
Basic software functions Web browsing, web chat, email, e-book, resource manager
Sound effect mode Clock, alarm clock, calculator, recording
Language support Multi-lingual
Recording Support MP3, WMA format recording
Tool Calendar
Alarm Clock
Calculator
Note
Weather + clock
Recording
Word processing EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT
Ebook PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2
Schedule Calendar
Input Standard Andriod keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.)
Network Browser -ChromeLite
GOOGLE Market
Email
Gmail
Google talk
System Management APK installer
Original ecological Android system, open root permission, can carry out product customization development
Real-time remote monitoring, self-recovery from system crashes, 7*24 hours unattended
System setting
Google Maps
Global time
Support OTA remote upgrade

RK3566 Android 11 Embedded System Board WIFI Ethernet PoE Optional 7"-84" Display 0RK3566 Android 11 Embedded System Board WIFI Ethernet PoE Optional 7"-84" Display 1RK3566 Android 11 Embedded System Board WIFI Ethernet PoE Optional 7"-84" Display 2

FAQ for Embedded System Board:

Q: Are you trading company or manufacturer?
A: We are original manufacturer Of Embedded System Board

We can do OEM/ODM business.

Q: How long is your delivery time?
A: Group buying delivery time: 30-60 days; General delivery time: 20 days.
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.

Q: What is the warranty ?
A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.
