Unattended System ARM Processor Board , Media Player ARM Computer Board

Unattended System ARM Processor Board , Media Player ARM Computer Board
Unattended System ARM Processor Board , Media Player ARM Computer Board Unattended System ARM Processor Board , Media Player ARM Computer Board Unattended System ARM Processor Board , Media Player ARM Computer Board

Large Image :  Unattended System ARM Processor Board , Media Player ARM Computer Board

Product Details:
Place of Origin: China
Brand Name: ADW
Model Number: AD-Z33L
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD45~USD70/pc
Packaging Details: 1pc/bubble bag, proper qty in a carton
Delivery Time: 1~3days if have stock, 30 days if out of stock
Payment Terms: T/T, Western Union
Supply Ability: 1,000,000pcs per month

Unattended System ARM Processor Board , Media Player ARM Computer Board

Description
CPU: Rockchip3188 Quad Core Diaplay Interface: LVDS(single, 6 Dual, 8 Dual
EDP Screen Interface: Support Resolution 1920*1080P Touch Screen: I2C Interface
Internet: RJ45 Interface, Support 10M/100M Ethernet OS: Android 4.4 Or Above
USB: USB2.0 RAM: 1GB,2GB Optional
EMMC: 8GB,16GB,32GB Optional
High Light:

arm computer board

,

custom arm board

,

Media Player ARM Computer Board

Embedded ARM Board 7 * 24H Working Unattended System for Media Player



Summary:

RK3188 Android all in one board, using Rockchip RK3188 quad-core chip program, support Google Android 4.4 system. Support the mainstream audio and video formats and picture decoding. Dual 8-bit LVDS interface 1920 * 1080, can drive 7 "to 82" display. Exclusive support for 3G module Internet access, rich interface, so that products become more common, widely used in advertising machines, one machine, security, industrial control, and so on intelligent control. Because of its hardware platform, Android intelligent features, in the need for human-computer interaction, network equipment, interactive, intelligent terminal platform can be used.

Feature:

  •  High performance. RK3188 chip using quad-core A9 program, is currently on the market one of the most powerful quad-core chip. Using the chip RK3188 motherboard program, compared to the common market of single-core, dual-core, quad-core program, a qualitative leap in performance, able to play a variety of formats high-definition video, can handle complex interactive operation.



  •  High stability. RK3188 Andrews board, in hardware, software, to increase their own unique technology to ensure product stability, can make the final product to 7 * 24 hours unattended.



  •  Highly integrated. RK3188 Andrews integrated board integrated Ethernet, wifi, Bluetooth, amplifier, SD card, 3G data interface, backlight power supply and so on, greatly simplifying the machine design. Ultra-thin motherboard design, make the machine design more beautiful.



  •  High scalability. 4 USB HOST, 3 serial ports, can expand more peripherals.

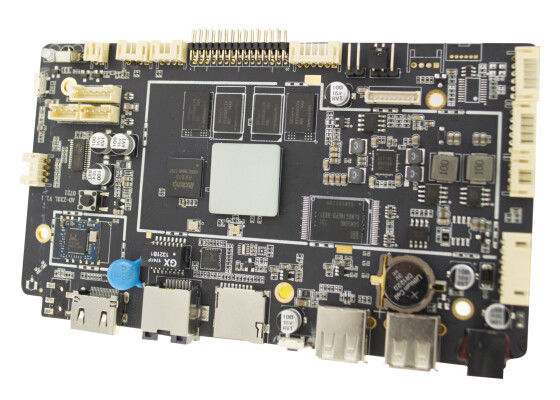

Product picture

Unattended System ARM Processor Board , Media Player ARM Computer Board 0Unattended System ARM Processor Board , Media Player ARM Computer Board 1



Basic hardware specifications:

CPU Rockchip RK3188 quad core Cortex-A9 quad core GPU Mail-400 @ 533MHz
Frequency 1.6 GHz
RAM DDR3 1G/2G Optional
Built-in storage capacity EMMC FLASH 8GB/16G/32G Optional(Label 8GB, available NAND)
Display interface LVDS interface (single, 6-way, 8-bit dual). Support maximum resolution 1920x1080, support 7 "-82" display
Mainboard backlight Support 3.3V / 5V / 12V optional
Touch screen

Provides I2C interface (can support multi-point resistance touch, multi-point capacitive touch).

Support USB multi-point infrared touch, multi-point sound wave touch, multi-point optical touch.

Internet With RJ45 interface, support Ethernet.
With wifi & BT module, support Wi-Fi 802.11b / g / n protocol. Support BT4.0
Image rotation Support 0 degrees, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, support gravity sensing function
Real Time Clock Built-in real-time clock powered battery
System watchdog Support software, hardware watchdog
Interface device Support DVP interface camera, the maximum support 500W pixels
Support USB camera
4 USB HOST,1 USB OTG
3 groups of serial ports. Support external serial device module (3G module, NFC module, printer, card reader, etc.)
4 IO detection port
SD card, maximum support 32GB
D class Large built-in speaker,3W*2 8R
Support microphones
Audio MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP format
Video Support H.264, VP8, RV, WMV, AVS, H.263, MPEG4 and other video formats 1080P decoding, YouTube and other online video, up to 1080P, HTML5 video playback, Flash10.1 play
Picture Support JPG, BMP, PNG and other picture formats to browse and support the rotation / slide show / picture zoom
Power Adapter Input:AC100-240V.50-60HZ, Output: DC12V 3A






Basic software specifications:

Operating system Google Android 4.4
Basic software functions Web browsing, web chat, e-mail, e-books, and resource managers
Sound mode Clock, alarm clock, calculator, recording
Language support Multi-lingual
Recording Support MP3, WMA format recording
Tool Calendar
Alarm Clock
Calculator
Note
Weather + clock
Record
Document processing EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT
Ebook PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2
Schedule Calendar
Input method Standard Andriod keyboard, optional third party input method (Chinese, Korean, Japanese, etc.)
Internet Browser -ChromeLite
GOOGLE Market
Email
Gmail
Google talk
System Management APK Installer
The original eco-Android system, open root privileges, can be customized product development
Real-time remote monitoring, system crash since recovery, 7 * 24 hours unattended
System setting
Google Maps
Global time
Support OTA remote upgrade
