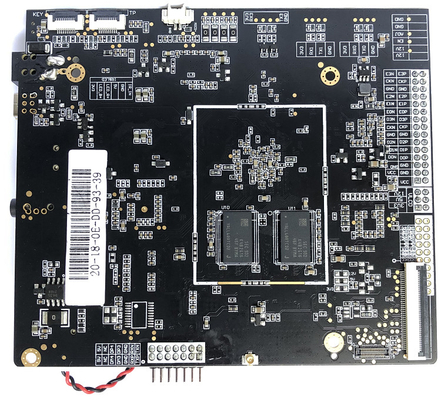

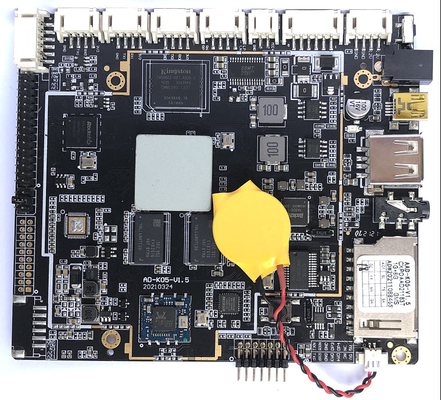

Motherboard Development Board PX30
Quad-core RK-PX30 Android decoding driver all-in-one board
Model: AD-K05 V1.1
Product Overview:
Intelligent industrial all-in-one board with Rockchip RK-PX30 quad-core chip solution, supporting Android 8.0 system. Powerful computing capability. Rich interface, enhanced power management circuit. Suitable for intelligent remote network control: class industrial, medical, large advertising machines, educational video terminals and other equipment.
Feature:
* Support all kinds of LVDS interface displays from 7" to 84" (point to point full HD display 1920*1080).
* Support EDP interface display.
* Support MIPI interface display.
* Multiple interaction mode interface: capacitive touch, infrared touch, infrared remote control, USB keyboard and mouse, multi-point optical touch.
* Multiple network interfaces: Ethernet, wireless Wifi, Bluetooth.
* Multiple USB ports, serial ports.
* Strong resistance to electromagnetic interference and electromagnetic compatibility.
Basic hardware specifications:
| CPU |
Rockchip RK-PX30 Quad-core Cortex-A35 Mali-G31 MP2 GPU |
| Frequency |
1.5GHz |
| RAM |
DDR3 1G/2G optional |
| EMMC |
8GB/16G/32G/64G optional |
| Screen interfaces |
LVDS interface (single, 6-bit dual, 8-bit dual) Support maximum resolution 1920x1080, support 7"-84" display |
| MIPI interface |
| Screen voltage |
3.3V/5V/12V optional |
| Touch screen |
Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch)
Support USB multi-point infrared touch, multi-point acoustic touch, multi-point optical touch.
|
| Network |
With RJ45 port, support 10/100 Ethernet. |
| Wifi&BT module with Wi-Fi 802.11b/g/n/protocol support. Support BT4.0 (optional WIFI 802.11 a/b/g/n/ac 5G&2.4G) |
| Image rotation |
Support 0 degrees, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, support gravity sensing function |
| Real Time Clock |
External real time clock powered battery |
| Interface Devices |
Support MIPI interface camera, up to 500W pixels |
| 3 USB HOST, 1 USB OTG (supports usb camera @ 500W usb printer, USB stick, mouse, keyboard standard usb peripherals) |
| 3 groups of serial ports. Support external serial device modules (3G module, NFC module, printer, card swiper, etc.) |
| Support SD card, up to 32GB |
| Class D amplifier: 5W*2 8 ohms, microphone support |
| Audio |
MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP |
| Video |
Multi-format 1080P 60fps video decoding (H.265,H.264,VC-1, MPEG-1/2/4, VP8), 1080P video encoding, support H.264,VP8 |
| Picture |
Support JPG, BMP, PNG and other image formats to browse and support rotation / slideshow / picture zoom function |
| Power adapter |
Input:AC100-240V.50-60HZ, Output: DC12V /3A |
Basic software specifications:
| Operating System |
Android 8.0 |
| Basic Software Features |
Web browsing, Web Chat, e-mail, e-books, resource management |
| Sound Mode |
Clock, alarm clock, calculator, recording |
| Language |
Multilingual |
| Recording |
Support MP3, WMA format recording |
| Tool |
Calendar |
| Alarm Clock |
| Calculator |
| Note |
| Weather+clock |
| Recording |
| File processing |
EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
| E-book |
PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 |
| Schedule |
Calendar |
| Input |
Standard Andriod keyboard with optional third-party input methods (Chinese, Korean, Japanese, etc.) |
| Internet |
Browser -ChromeLite |
| GOOGLE Market |
| Email |
| Gmail |
| Google talk |
| System Management |
APK installer |
| Original Android system with open root access for product customization and development |
| Real-time remote monitoring, system crash self-recovery, 7*24 hours unattended |
| System setting |
| Google Maps |
| Global time |
| Support OTA remote upgrade |
