Intelligent Industrial All In One Board Rockchip RK3588 Octa-core Solution And Supports Android12 OS

Intelligent Industrial All In One Board Rockchip RK3588 Octa-core Solution And Supports Android12 OS
Intelligent Industrial All In One Board Rockchip RK3588 Octa-core Solution And Supports Android12 OS
Intelligent Industrial All In One Board Rockchip RK3588 Octa-core Solution And Supports Android12 OS Intelligent Industrial All In One Board Rockchip RK3588 Octa-core Solution And Supports Android12 OS Intelligent Industrial All In One Board Rockchip RK3588 Octa-core Solution And Supports Android12 OS

Large Image :  Intelligent Industrial All In One Board Rockchip RK3588 Octa-core Solution And Supports Android12 OS

Product Details:
Place of Origin: CN
Brand Name: SUNCHIP & ADW
Certification: CE FCC ROHS ISO9001 ISO14001
Model Number: AD-C58 (RK3588)
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: bubble bag + carton
Delivery Time: Samples: 1-3 days; MP: 15-25 days;
Payment Terms: T/T, Western Union, PayPal, L/C
Supply Ability: 60000PCS/Month
Contact Now

Intelligent Industrial All In One Board Rockchip RK3588 Octa-core Solution And Supports Android12 OS

Description
CPU: RK3588 8-core 4 Cortex-A76 And 4 Cortex-A55 GPU: ARM Mali G610 MC4
OS: Android 12 4G LTE: Optional
LAN: Support 1000M Wired Network Network RAM: 4GB/8GB/16G (optional)
NPU: 6TOPS AI Computing Power, Triple-core Architecture, Support Int4/int8/int16/FP16/BF16/TF32, Enabling Various AI Scenarios Main Frequency: 2.4 GHz
Display: LVDS , EDP, MIPI, HD IN, HD Out Camera: MIPI / USB Type
Network Interfaces: Ethernet, Wireless WiFi, Bluetooth TF Card: Support
Screen Size Support: 7-inch To 84-inch Expansion Slots: TF Card, USB
Test Condition: 100% Tested Warranty: 1 Year
Touch Panel: Support Touch: IIC / USB Port
Rtc: Real Time Clock Supported Max Resolution: 8K
Mipi: Support Resolution 1920*1080P Edp Screen Interface: Support Resolution 1920*1080P
Highlight:

Intelligent Industrial All In One Board

,

Rockchip RK3588 All In One Board

,

Android12 OS RK3588 Octa-core Solution



RK3588 Industrial 6 Tops NPU Industrial Board: 8-Core 8K For Medical, Advertising, Intelligent Control & More





Main Features:

  • Support LVDS, MIPI, EDP interface display three-screen simultaneous/different display + HD OUT (up to 8K@60FPS), HD IN (up to 8K@60FPS).

  •

  • Various interactive mode interfaces: capacitive touch, infrared touch, USB keyboard and mouse, multi-point optical touch.

  •

  • Multiple network interfaces: Ethernet (Gigabit), Wireless Wifi (Wifi6), BT 5.0.

  •

  • Multi-channel USB interface, serial port.

  •

  • Strong anti-electromagnetic interference and electromagnetic compatibility.



Product Parameter
CPU
Rockchip RK3588 octa-core 64-bit size core architecture,4*Cortex-A76 + 4*Cortex-A55
Main frequency
The main frequency of the large core is 2.1GHz, and the main frequency of the small core is 1.7GHz
GPU
ARM Mali-G610 MC4
OpenGL ES 1.1/2.0/3.1/3.2
Vulkan 1.1,1.2
OpenCL 1.1,1.2,2.0
Embedded high-performance 2D image acceleration module
NPU
6TOPS AI computing power, triple-core architecture, support int4/int8/int16/FP16/BF16/TF32, enabling various AI scenarios
Memory
4GB/8GB/16GB(Up to 32GB)64bit LPDDR4/LPDDR4x
Built-in storage capacity
EMMC 32G/64G/128G/256G(optional)
Display interface
HDMI OUT(Up to 8K@60FPS)
HDMI IN(Up to 8K@60FPS)
LVDS display interface
EDP display interface
MIPI display interface
Screen voltage
Support 3.3V/5V/12V optional
Touch screen
Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch).Support USB multi-point infrared
touch, multi-point acoustic wave touch, multi-point optical touch.
Network
With RJ45 interface, support 10/100/1000M Ethernet.
Equipped with AP6275S industrial WiFi-6 module SIDO/PCIE dual-channel Bluetooth WiFi module 2T2R 802.11 ax/ac/a/b/g/n Wi-Fi + BT
5.0 Module
Image rotation
Support 0 degree, 90 degree, 180 degree, 270 degree manual/automatic rotation, support gravity sensing function
Real Time Clock
Built-in real-time clock powered by battery
Interface device
Support MIPI interface camera, support 500W pixels
3 USB HOST 2.0 (4PIN2.0 spacing connectors)
All support usb camera@500W usb printer, U disk, mouse, keyboard, standard usb peripherals
All support usb camera@500W usb printer, U disk, mouse, keyboard, standard usb peripherals

All support usb camera@500W usb printer, U disk, mouse, keyboard, standard usb peripherals

3 sets of serial ports, support external serial device modules (NFC module, printer, card reader, etc.)
TF card, maximum support 128GB
Class D power amplifier: default 3W*2 8 ohms, support microphone
Audio
MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP Format
Video
Support H.265/H.264/AV1/VP9/AVS2 video decoding, up to 8K60FPS
Support H.264/H.265 video encoding, up to 8K30FPS
Support JPG, BMP, PNG and other image formats to browse and support rotation/slide show/image enlargement functions
Power Adapter
Input: AC100-240V.50-60HZ, Output: DC12V 3A (positive inside and negative outside)

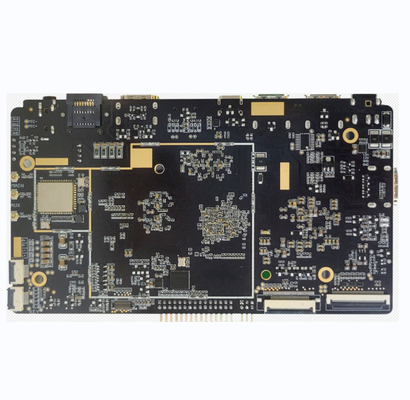

Intelligent Industrial All In One Board Rockchip RK3588 Octa-core Solution And Supports Android12 OS 0

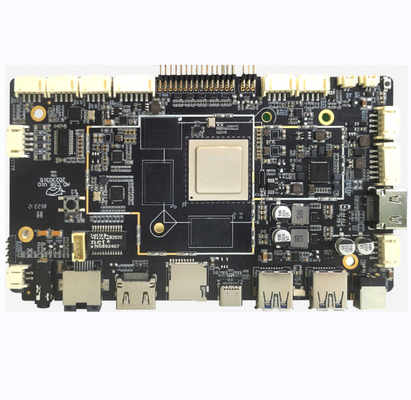

Intelligent Industrial All In One Board Rockchip RK3588 Octa-core Solution And Supports Android12 OS 1

Payment and Delivery
1.Packing: carton box or wood case
2.Payment methods: accept T/T,Western Union,Paypal and Cash.
3.RMA Policy: customer bear all the freight and duty charge to factory,and the factory afford return freight charge.
4.Warranty: 12 months warranty. Paid maintenance over 12 months.
5.Remark: ROHS, CE & FCC certificates in e-file format are available.
6.MOQ: 1pc, sample order are welcome for your evaluation.
Intelligent Industrial All In One Board Rockchip RK3588 Octa-core Solution And Supports Android12 OS 2





FAQ

1) Q: Is SUNCHIP a factory or simply a trading company?

A: We are a TRUE OEM/ODM factory. Please read our COMPANY PROFILE, for more information on this issue.



2) Q: What payment methods are available to me?

A: We accept most of the payment methods: accept VISA, Pay Later,T/T,Western Union,Paypal and Cash.



3) Q: How long is the warranty time?

A: 1 Year.



4) Q: What are the shipment terms and delivery times of your company?

A: Delivery / production time is directly affected by the size of the order. Also depending in which season you are shipping.



5) Q: Do you give any discounts ?

A: Prices are directly affected by the quantity. We have many ways to help our partners when starting the sample processes. Make sure to ask our sales on how we can make you save some charges.



6) Q: I would like to add my company logo on your products, is this possible?

A: SURE.We customize on a regular basis products for many large retaillers and brands. If your order is at the below 10 units, we can consider this as a SAMPLE order, some fees might apply for the logo prints.



About Sunchip :



SUNCHIP is an OEM / ODM factory, customizing products to tailor your needs is our strength and mission, over 130 employees’ team that including over 70 research and development engineers, who can provide services and solutions in electronic Android mainboard design for digital signage industries and domains as it is becoming a critical function in the product development life cycle, diverse categories of embedded systems such as industrial automation, consumer electronics, embedded digital signage devices and exhibition display screen.



We focus on Rockchip chipsets solution and in-depth development, also deep customization of Android OS; Specialized on LCD Digital Signage & Android ARM Board.



Sunchip is a national high-tech enterprise with various patents. Our factory runs under the ISO 9001 & ISO 14001 certification. Our products fully completely with CE, RoHS and FCC certifications.







Intelligent Industrial All In One Board Rockchip RK3588 Octa-core Solution And Supports Android12 OS 3
