Product Details:
|
CPU: | RK3588 8-core 4 Cortex-A76 And 4 Cortex-A55 | GPU: | ARM Mali G610 MC4 |
---|---|---|---|
OS: | Android 12 | 4G LTE: | Optional |
LAN: | Support 1000M Wired Network Network | RAM: | 4GB/8GB/16G (optional) |
NPU: | 6TOPS AI Computing Power, Triple-core Architecture, Support Int4/int8/int16/FP16/BF16/TF32, Enabling Various AI Scenarios | Main Frequency: | The Main Frequency Of The Large Core Is 2.4GHz, And The Main Frequency Of The Small Core Is 1.7GHz |
Display: | LVDS , EDP, MIPI, HD IN, HD Out | Camera: | MIPI / USB Type |
Touch: | I2C / USB Port | Network Interfaces: | Ethernet, Wireless WiFi, Bluetooth |
TF Card: | Support | Screen Size Support: | 7-inch To 84-inch |
Expansion Slots: | TF Card, USB | Test Condition: | 100% Tested |
Warranty: | 1 Year | ||
Highlight: | RK3588 Industrial Board,Advertising Intelligent Control Industrial Board,6 Tops NPU Industrial Board |

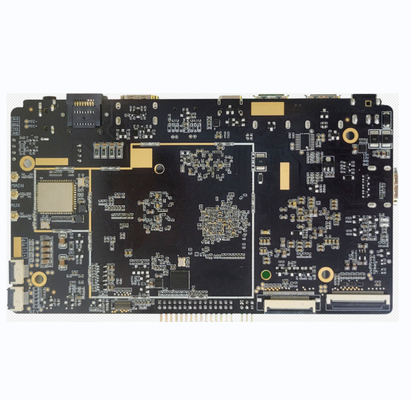

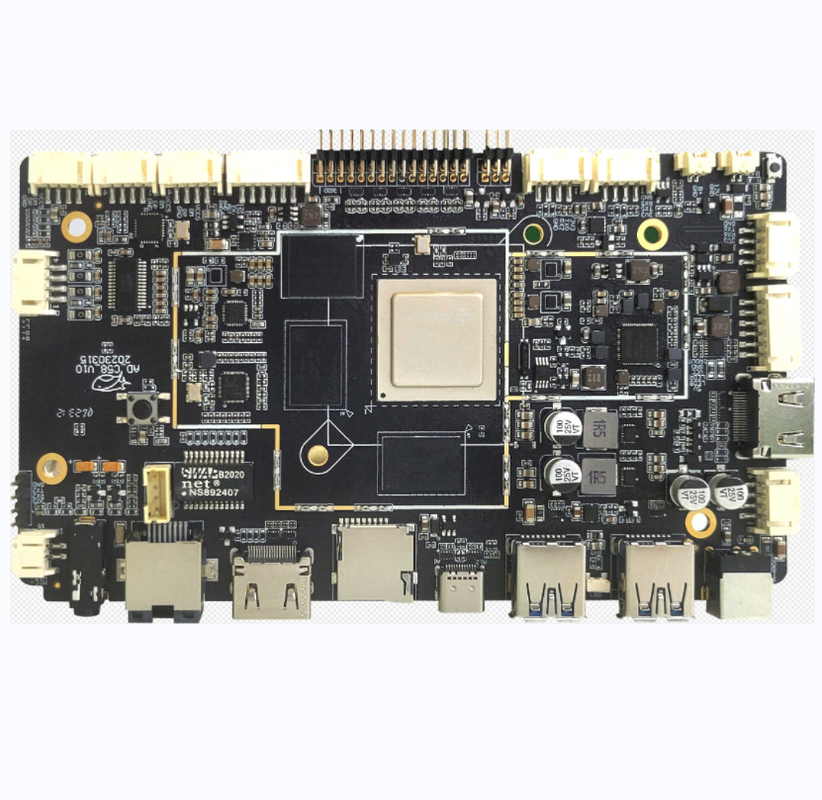

RK3588 Industrial 6 Tops NPU Industrial Board: 8-Core 8K For Medical, Advertising, Intelligent Control & More
Main Features:
Support LVDS, MIPI, EDP interface display three-screen simultaneous/different display + HD OUT (up to 8K@60FPS), HD IN (up to 8K@60FPS).
Various interactive mode interfaces: capacitive touch, infrared touch, USB keyboard and mouse, multi-point optical touch.
Multiple network interfaces: Ethernet (Gigabit), Wireless Wifi (Wifi6), BT 5.0.
Multi-channel USB interface, serial port.
Strong anti-electromagnetic interference and electromagnetic compatibility.
Product Specification:
CPU |
Rockchip RK3588 octa-core 64-bit size core architecture,4*Cortex-A76 + 4*Cortex-A55 |
Main frequency |
The main frequency of the large core is 2.1GHz, and the main frequency of the small core is 1.7GHz |
GPU |
ARM Mali-G610 MC4 |
|
OpenGL ES 1.1/2.0/3.1/3.2 |
|
Vulkan 1.1,1.2 |
|
OpenCL 1.1,1.2,2.0 |
|
Embedded high-performance 2D image acceleration module |
NPU |
6TOPS AI computing power, triple-core architecture, support int4/int8/int16/FP16/BF16/TF32, enabling various AI scenarios |
Memory |
4GB/8GB/16GB(Up to 32GB)64bit LPDDR4/LPDDR4x |
Built-in storage capacity |
EMMC 32G/64G/128G/256G(optional) |
Display interface |
HD OUT(Up to 8K@60FPS) |
|
HD IN(Up to 8K@60FPS) |
|
LVDS display interface |
|
EDP display interface |
|
MIPI display interface |
Screen voltage |
Support 3.3V/5V/12V optional |
Touch screen |
Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch).Support USB multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch. |
Network |
With RJ45 interface, support 10/100/1000M Ethernet. |
|
Equipped with AP6275S industrial WiFi-6 module SIDO/PCIE dual-channel Bluetooth WiFi module 2T2R 802.11 ax/ac/a/b/g/n Wi-Fi + BT 5.0 Module |
Image rotation |
Support 0 degree, 90 degree, 180 degree, 270 degree manual/automatic rotation, support gravity sensing function |
Real Time Clock |
Built-in real-time clock powered by battery |
Interface device |
Support MIPI interface camera, support 500W pixels |
|
|
3 USB HOST 2.0 (4PIN2.0 spacing connectors) |
All support usb camera@500W usb printer, U disk, mouse, keyboard, standard usb peripherals |
|
2 USB HOST3.0 (standard interface) |
|
|
1 full-featured Type-C interface (OTG) |
|
|
3 sets of serial ports, support external serial device modules (NFC module, printer, card reader, etc.) |
|
|
TF card, maximum support 128GB |
|
|
Class D power amplifier: default 3W*2 8 ohms, support microphone |
Audio |
MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP Format |
Video |
Support H.265/H.264/AV1/VP9/AVS2 video decoding, up to 8K60FPS Support H.264/H.265 video encoding, up to 8K30FPS |
Picture |
Support JPG, BMP, PNG and other image formats to browse and support rotation/slide show/image enlargement functions |
Power Adapter |
Input: AC100-240V.50-60HZ, Output: DC12V 3A (positive inside and negative outside) |
Basic Software Specification :
Operating system |
Android 12 and above |
Basic software function |
Web browsing, web chat, email, e-books, explorer |
Sound mode |
Clock, Alarm Clock, Calculator, Recording |
Language support |
Multi-lingual |
Recording |
Support MP3, WMA format recording |
Tools |
Calendar |
|
Alarm Clock |
|
Calculator |
|
Note |
|
Weather+clock |
|
recording |
Word processing |
EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
E-book |
PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 |
Schedule |
Calendar |
Input method |
Standard Andriod keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.) |
Network |
Browser -ChromeLite |
|
GOOGLE Market |
|
|
|
Gmail |
|
Google talk |
System Management |
Support OTA remote upgrade, U disk upgrade, SD upgrade (silent installation) |
|
Original ecological Android system, open root permission, and can carry out product customization development |
|
Customizable local or remote server management system |
|
Support multiple third-party Android remote advertising publishingsystems |
|
Support multiple serial devices, USB devices, IO control devices |
About Sunchip :
SUNCHIP is an OEM / ODM factory, customizing products to tailor your needs is our strength and mission, over 130 employees’ team that including over 70 research and development engineers, who can provide services and solutions in electronic Android mainboard design for digital signage industries and domains as it is becoming a critical function in the product development life cycle, diverse categories of embedded systems such as industrial automation, consumer electronics, embedded digital signage devices and exhibition display screen.
We focus on Rockchip chipsets solution and in-depth development, also deep customization of Android OS; Specialized on LCD Digital Signage & Android ARM Board.
Sunchip is a national high-tech enterprise with various patents. Our factory runs under the ISO 9001 & ISO 14001 certification. Our products fully completely with CE, RoHS and FCC certifications.
