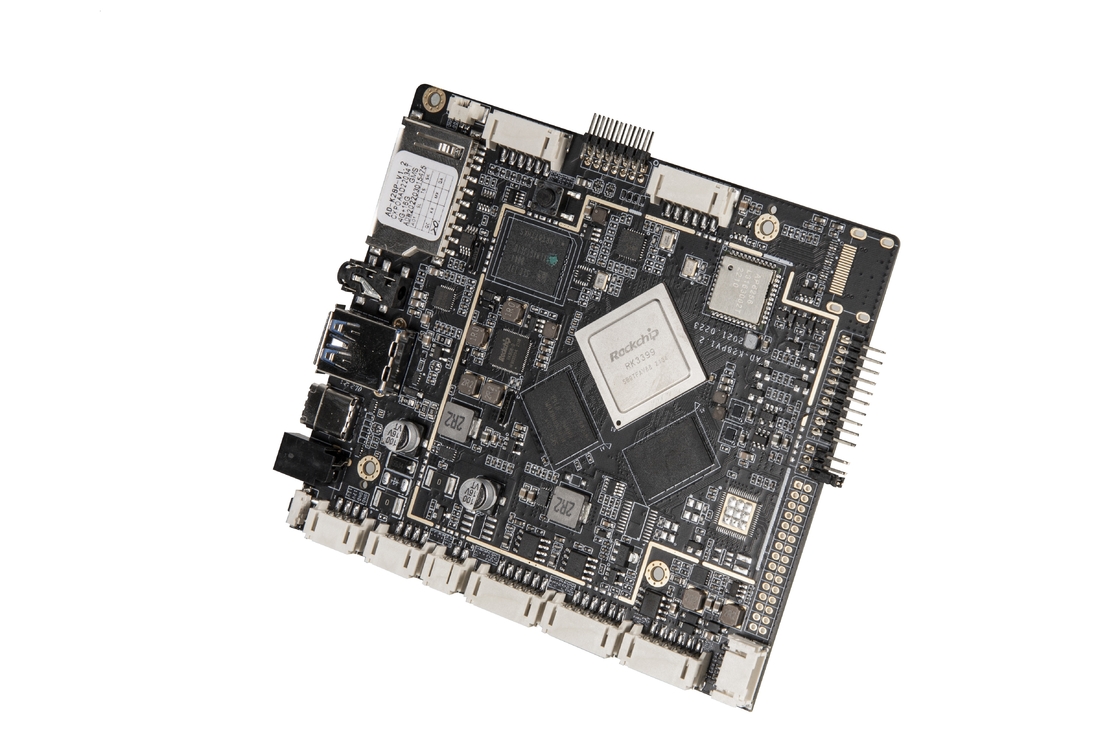

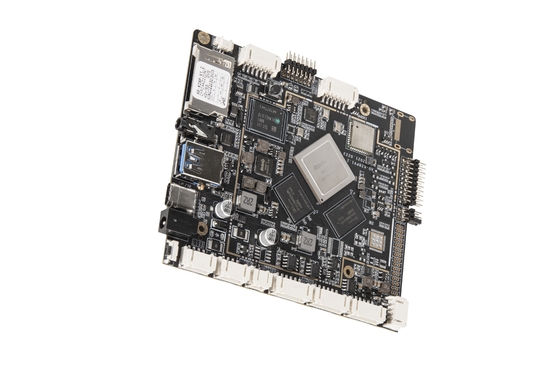

Rockchip ARM Embedded Mainboard RK33399 Digital Signage Android Control Board With LVDS Output

Rockchip ARM Embedded Mainboard RK33399 Digital Signage Android Control Board With LVDS Output
Rockchip ARM Embedded Mainboard RK33399 Digital Signage Android Control Board With LVDS Output
Rockchip ARM Embedded Mainboard RK33399 Digital Signage Android Control Board With LVDS Output Rockchip ARM Embedded Mainboard RK33399 Digital Signage Android Control Board With LVDS Output Rockchip ARM Embedded Mainboard RK33399 Digital Signage Android Control Board With LVDS Output

Large Image :  Rockchip ARM Embedded Mainboard RK33399 Digital Signage Android Control Board With LVDS Output

Product Details:
Place of Origin: China
Brand Name: ADW Sunchip
Certification: CE,RoSH,FCC
Model Number: K28P
Payment & Shipping Terms:
Minimum Order Quantity: 2pcs
Price: $60-$90/pcs
Packaging Details: 1pc/bubble bag, proper qty in a carton
Delivery Time: Samples: 3-5 days, MP 15-20 days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 60,000pcs/Month
Contact Now

Rockchip ARM Embedded Mainboard RK33399 Digital Signage Android Control Board With LVDS Output

Description
Cpu Solution: RK3399 Quad-Core Operating System: Android7.1/9.0/10.0/11.0/12.0
Frequency: 1.8GHz Power Adapter: AC100-240V.50-60HZ
Real Time Clock: Built-in Real-time Clock Powered Battery Screen Interfaces: LVDS, EDP, MIPI
Power: 12V Expansion Slots: SD, USB
Emmc: 16GB,32GB,64GB Optional Ram: 4GB
Ports: 3 UART / TTL /GPIO SD Card: Support
On Board Backlight: Support 3.3V/5V/12V Optional Chipset Manufacturer: Rockchip
CPU: RK3399 Video Play: Support 4K Video Play
Usb: USB *6 , Including USB 3.0*1 Camera: Support USB / MIPI
The Internet: RJ45,WIFI,BT Mainboard Backlight: Support 3.3V/5V/12V Optional
Working Performance: 7*24 Hours Non-stopping Display Size: 7inch, 8inch, 10.1inch, Etc.
Lan: 10/100/1000M Ethernet Connectivity: Ethernet, Wi-Fi, Bluetooth
Highlight:

RK33399 Embedded Mainboard

,

LVDS Output Embedded Mainboard

,

Digital Signage Android Control Board

Rk3399 Six-core Industrial Android PCB Board



Product Parameter
CPU
Rockchip RK3399 dual-core Cortex-A72+ quad-core Cortex-A53 CPU
Main frequency
ARM Mali-T860MP4 GPU
Deposit
LPDDR4 4G
Built-in storage capacity
EMMC 8GB/16G/32G/64G optional (label 16GB)
Display interface
LVDS interface (single-channel, 6-bit dual-channel, 8-bit dual-channel). Support maximum resolution 1920x1080, support 7"-84"
display
MIPI screen interface, maximum resolution 1920*1080
Screen voltage
Support 3.3V/5V/12V optional
Touch screen
Provide I2C interface (multi-point capacitive touch)
Support USB multi-point capacitive touch, multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch
Network
With RJ45 interface, support 10/100 Ethernet
Equipped with Wifi&BT module, supporting Wi-Fi 802.11a/b/g/n/ ac protocol. Support BT4.0
Image rotation
Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation, gravity sensor function (optional)
Real Time Clock
External real-time clock power supply battery
Interface device
Support MIPI interface camera
6 USB HOST (support usb camera@500W usb printer, U disk, mouse, keyboard and standard usb peripherals)
2 groups of UART, 1 group of SPI or 1 group of UART, 2 groups of SPI. Support external serial devices (NFC module, printer, card
reader, etc.)
SD card, maximum support 64GB
Class D power amplifier: 3W*2 8 ohms, support microphone
HDMI 2.0 output
Audio
MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP Format
Video
Support H.264, MPEG2, VP6, VP8, MVC and other video formats 2160P@24FPS decoding. YouTube and other online videos, up to 4K, HTML5
video playback, Flash 10.1 playback
Support JPG, BMP, PNG, GIF and other image formats to browse and support rotation/image enlargement function
Power Adapter
Input: AC100-240V.50-60HZ, output: DC12V 3A





Products Description
Rockchip ARM Embedded Mainboard RK33399 Digital Signage Android Control Board With LVDS Output 0
Rockchip ARM Embedded Mainboard RK33399 Digital Signage Android Control Board With LVDS Output 1
Rockchip ARM Embedded Mainboard RK33399 Digital Signage Android Control Board With LVDS Output 2
Rockchip ARM Embedded Mainboard RK33399 Digital Signage Android Control Board With LVDS Output 3
Rockchip ARM Embedded Mainboard RK33399 Digital Signage Android Control Board With LVDS Output 4


Customization
Rockchip ARM Embedded Mainboard RK33399 Digital Signage Android Control Board With LVDS Output 5
Rockchip ARM Embedded Mainboard RK33399 Digital Signage Android Control Board With LVDS Output 6



About Sunchip



1. 12 years experience in PCBA
2. Strong R&D team over 70 people
3. Factory passed ISO9001 quality system certification
4. Big workshop area of over 3500 square meters with more than 200 employees.
5. Have a senior R&D team, with hardware engineers, software engineers, product engineers and so on, can undertake all kinds of OEM/ODM orders processing and production;
6. One-stop production of the factory, from PCB patch. Plug-in. Test. Assembly. Packaging and shipment are completed in this factory, reducing the flow of intermediate links;
7.We can support drop-shipping for 1pcs, welcome to order, and welcome to visit the factory.



Rockchip ARM Embedded Mainboard RK33399 Digital Signage Android Control Board With LVDS Output 7

Rockchip ARM Embedded Mainboard RK33399 Digital Signage Android Control Board With LVDS Output 8



Payment and Delivery
1.Packing: carton box or wood case
2.Payment methods: accept T/T,Western Union,Paypal and Cash.
3.RMA Policy: customer bear all
the freight and duty charge to factory,and the factory afford return freight charge.
4.Warranty: 12 months warranty. Paid
maintenance over 12 months.
5.Remark: ROHS, CE & FCC certificates in e-file format are available.
6.MOQ: 1pc, sample order are
welcome for your evaluation.
Rockchip ARM Embedded Mainboard RK33399 Digital Signage Android Control Board With LVDS Output 9


FAQ
1) Q: Is SUNCHIP a factory or simply a trading company?
A: We are a TRUE OEM/ODM factory. Please read our COMPANY PROFILE, for more information on this issue.

2) Q: What payment methods are available to me?
A: We accept most of the payment methods: accept VISA, Pay Later,T/T,Western Union,Paypal and Cash.

3) Q: How long is the warranty time?
A: 1 Year.

4) Q: What are the shipment terms and delivery times of your company?
A: Delivery / production time is directly affected by the size of the order. Also depending in which season you are shipping.

5) Q: Do you give any discounts ?
A: Prices are directly affected by the quantity. We have many ways to help our partners when starting the sample processes. Make sure to ask our sales on how we can make you save some charges.

6) Q: I would like to add my company logo on your products, is this possible?
A: SURE.We customize on a regular basis products for many large retaillers and brands. If your order is at the below 10 units, we can consider this as a SAMPLE order, some fees might apply for the logo prints.Different methodes are used for logos, please ask our sales for more information on this issue, we will surely find the right solution for you!
New Arrival!!!

Rockchip ARM Embedded Mainboard RK33399 Digital Signage Android Control Board With LVDS Output 10
8K RK3588 AIot Edge Computing industrial board with rich interfaces, which suitable for intelligent remote network control: AIoT , industrial, medical, large advertising, educational video terminals and other equipment.
