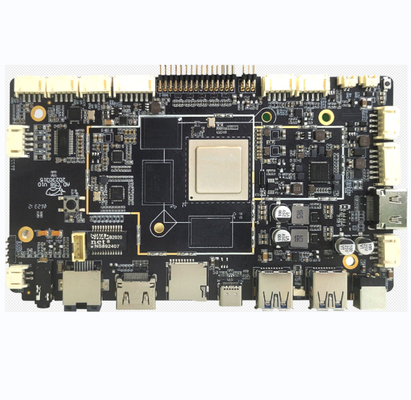

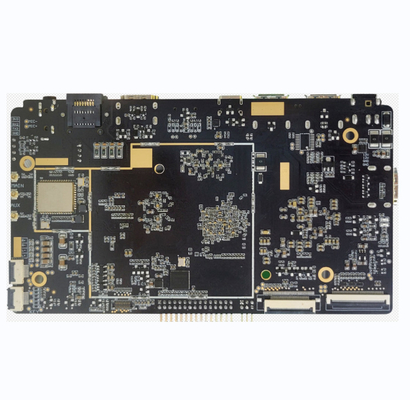

Octa Core 8K Video AI Rk3588 Motherboard 8g Ram Android 12 Rockchip Embedded System Board

Octa Core 8K Video AI Rk3588 Motherboard 8g Ram Android 12 Rockchip Embedded System Board
Octa Core 8K Video AI Rk3588 Motherboard 8g Ram Android 12 Rockchip Embedded System Board
Octa Core 8K Video AI Rk3588 Motherboard 8g Ram Android 12 Rockchip Embedded System Board Octa Core 8K Video AI Rk3588 Motherboard 8g Ram Android 12 Rockchip Embedded System Board Octa Core 8K Video AI Rk3588 Motherboard 8g Ram Android 12 Rockchip Embedded System Board

Large Image :  Octa Core 8K Video AI Rk3588 Motherboard 8g Ram Android 12 Rockchip Embedded System Board

Product Details:
Place of Origin: China
Brand Name: SUNCHIP
Certification: ISO 9001 , ISO 14001, ISO 27001
Model Number: AD-C58
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: 1pc/bubble bag, proper qty in a carton
Delivery Time: 1~3 days if have stock, 30days if no stock
Payment Terms: T/T, Western Union
Supply Ability: 1,000,000pcs per month

Octa Core 8K Video AI Rk3588 Motherboard 8g Ram Android 12 Rockchip Embedded System Board

Description
CPU: RK3588 Android 12 Board GPU: ARM Mali G610 MP4 GPU
NPU: 6Tops,int4/int8/int16/FP16 MCU: For Low Power Contro
RAM: 4G/8GB/16G (optional) Internal Memory: 32GB/64GB/128GB/256GB(optional)
Operating System: Android 12 Dual Wired Network: Dual Gigabit Ethernet
WiFi: IEEE 802.11a/b/g/n/ac Mobile Network: Supports Wireless 4G Network
Bluetooth: Bluetooth 5.0 TYPE_C: USB Type_C*1
DC Holder*1: DC_12V Input 5.5*2.5mm Plug Image Rotation: Support G-sensor
Socket Type: SocketA Display: HDMI, LVDS
Storage: 16GB EMMC Support: LVDS,EDP Panel And HD
Product Type: Embedded LCD Module Display Ports: LVDS, EDP
Application Scenario: Industrial-control Applicaiton System: Android 7.1
Memory Type: DDR3 2G/4G Optional Frequency: 2.2 GHz
Temperature Range: -40°C To 85°C Video Play: Support 4K Video Play
Internal Memorizer: EMMC8G/16G(Options)
Highlight:

8K Video AI Rk3588 Motherboard

,

Octa Core Rk3588 Motherboard

,

Android 12 Embedded System Board

RK3588 Octa Core  Motherboard , Android 12 Rockchip Embedded System Board

Octa Core 8K Video AI Rk3588 Motherboard 8g Ram Android 12 Rockchip Embedded System Board 0Octa Core 8K Video AI Rk3588 Motherboard 8g Ram Android 12 Rockchip Embedded System Board 1





Product OverView:

-1. Intelligent industrial all-in-one large board, using Rockchip RK3588 octa-core chip solution.

-2. Support Android 12 system. Enhanced power management circuit, support common external devices, rich interface, stable performance.

-3. Suitable for intelligent remote network control: class industrial, medical, large advertising machines, educational video terminals and other equipment.



Basic hardware specifications:

CPU

Rockchip RK3588 octa-core 64-bit size core architecture,4*Cortex-A76 + 4*Cortex-A55

Main frequency

The main frequency of the large core is 2.1GHz, and the main frequency of the small core is 1.7GHz

GPU

ARM Mali-G610 MC4

OpenGL ES 1.1/2.0/3.1/3.2

Vulkan 1.1,1.2

OpenCL 1.1,1.2,2.0

Embedded high-performance 2D image acceleration module

NPU

6TOPS AI computing power, triple-core architecture, support int4/int8/int16/FP16/BF16/TF32, enabling various AI scenarios

Memory

4GB/8GB/16GB(Up to 32GB)64bit LPDDR4/LPDDR4x

Built-in storage capacity

EMMC 32G/64G/128G/256G(optional)

Display interface

HDMI OUT(Up to 8K@60FPS)

HDMI IN(Up to 8K@60FPS)

LVDS display interface

EDP display interface

 MIPI display interface

Screen voltage

Support 3.3V/5V/12V optional

Touch screen

Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch).Support USB multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch.

Network

With RJ45 interface, support 10/100/1000M Ethernet.

Equipped with AP6275S industrial WiFi-6 module SIDO/PCIE dual-channel Bluetooth WiFi module 2T2R 802.11 ax/ac/a/b/g/n Wi-Fi + BT 5.0 Module

Image rotation

Support 0 degree, 90 degree, 180 degree, 270 degree manual/automatic rotation, support gravity sensing function

Real Time Clock

Built-in real-time clock powered by battery



Interface device

Support MIPI interface camera, support 500W pixels

3 USB HOST 2.0 (4PIN2.0 spacing connectors)

All support usb camera@500W usb printer, U disk, mouse, keyboard, standard usb peripherals

2 USB HOST3.0 (standard interface)

1 full-featured Type-C interface (OTG)

3 sets of serial ports, support external serial device modules (NFC module, printer, card reader, etc.)

TF card, maximum support 128GB

Class D power amplifier: default 3W*2 8 ohms, support microphone

Audio

MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP Format

Video

Support H.265/H.264/AV1/VP9/AVS2 video decoding, up to 8K60FPS

Support H.264/H.265 video encoding, up to 8K30FPS


Support JPG, BMP, PNG and other image formats to browse and support rotation/slide show/image enlargement functions

Power Adapter

Input: AC100-240V.50-60HZ, Output: DC12V 3A (positive inside and negative outside)

Main Feature::

1. Octa-Core, 8K output, 4K hardware decoding;

2. Main frequency up to 2.4GHz;

3. RK3588 performance is higher 3.3 times than RK3399

4. Android 12 OS;

5. Rich interfaces, including RS232,RS485, USB 3.0, HD -MI, DP, etc.

6. Network: 2.4G & 5G WIFI; Bluetooth 5.0; 4G LTE Optional; Dual Gigabit Ethernet ;

7. Build-in M.2 SSD Extended interface (SSD optional)



About Sunchip :




Sunchip has obtained National High-Tech Enterprise, SRDI (Specialized Refinement Differential Innovation), ISO9001, ISO 14001 ,ISO27001, Intellectual Property Management system, AAA credit rating qualification certification and perfect IT management system.

At present, the products include industry motherboards, metaverse smart terminal, industrial box, cloud advertising information release systems, etc.
With an excellent R&D team, Sunchip has mastered a complete set of ultra-high-definition video decode & encode solutions and mass production technologies, who can provide global customers with one-stop services, such as product definition, software and hardware design and development, manufacturing and after-sales support.
The delivery methods include PCBA, integrate hardware & software , software customization, cloud system, complete machine, OEM/ODM, etc. The simple and fast process brings mature and cost-effective products to the industry.



Sunchip can provide one-stop service, from PCB layout, prototype, production, PCBA SMT, testing, housing design, assembly, software customization, QC control, after-sale etc.





Octa Core 8K Video AI Rk3588 Motherboard 8g Ram Android 12 Rockchip Embedded System Board 2





FAQ

1) Q: Is SUNCHIP a factory or simply a trading company?

A: We are a TRUE OEM/ODM factory. Please read our COMPANY PROFILE, for more information on this issue.



2) Q: What payment methods are available to me?

A: We accept most of the payment methods: accept VISA, Pay Later,T/T,Western Union,Paypal and Cash.



3) Q: How long is the warranty time?

A: 1 Year.



4) Q: What are the shipment terms and delivery times of your company?

A: Delivery / production time is directly affected by the size of the order. Also depending in which season you are shipping.



5) Q: Do you give any discounts ?

A: Prices are directly affected by the quantity. We have many ways to help our partners when starting the sample processes. Make sure to ask our sales on how we can make you save some charges.



6) Q: I would like to add my company logo on your products, is this possible?

A: SURE.We customize on a regular basis products for many large retaillers and brands. If your order is at the below 10 units, we can consider this as a SAMPLE order, some fees might apply for the logo prints.

Different methodes are used for logos, please ask our sales for more information on this issue, we will surely find the right solution for you!
