Quad-core RK3288 Android decoding driver integrated board
Product Description:
Overview:

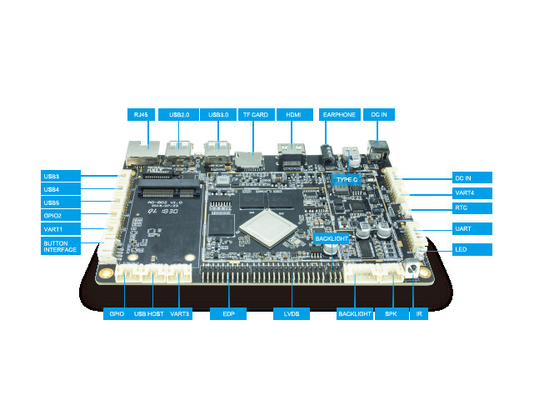

RK3288 Android Embedded ARM integrated board, using Rockchip RK3288 quad-core chip solution.
--Support Android 5.1 to Android 10 OS version
--Supports the decoding of the popular audio&video formats and images
--Support EDP@4K, dual 8-bit LVDS interface 1920*1080, can drive 7" to 82" display
--With HD interface, support 4K video playing
--The multi interface makes the product in common use and is widely used in intelligent control fields
such as advertising machines, all-in-one PC, security, industrial and so on.
Hardware specifications
| CPU |
Rockchip RK3288 Cortex-A17 Quad core GPU Mali-T764 |
| Frequency |
1.8 GHz |
| RAM |
LPDDR3 2G/4G optional |
| ROM |
EMMC 16G/32G/64G optional |
| Display interface |
LVDS(single way,6 bit dual-way, 8 bit dual-way), Resolution max 1920x1080, support 7"-84" display |
| EDP interface, Resolution max 4K |
| Screen voltage |
Support 3.3V/5V/12V(optional) |
| Touch Screen |
I2C interface(support resistive touch, capacitive touch)
Support USB IR multi touch,sonic multi touch,optical multi touch
|
| Network |
RJ45 interface, ethernet 10/100/1000M |
| Wi-Fi 802.11b/g/n, BT4.0 |
| Support 4G LTE |
| Image rotation |
Support 0°, 90°, 180°, 270°, manual control or automatic, gravity (optional) |
| RTC |
Built in internal battery for Real time clock |
| interfaces |
Support MIPI camera,max 5MP |
| Support USB camera, max 2MP |
| HDMI out |
| 6*USB HOST(Support usb camera @500w, usb printer, usb stick, mouse, keyboard, standard usb peripherals) |
| Serial ports x 3(1*UART+2*UART or RS232), support external devices(NFC module, printer, card reader etc.) |
| 6*IO |
| TF card slot |
| D classamplifier,5W*2 8R |
| support microphone |
| Audio |
MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP format |
| Video |
Support H.264,MPEG2,VP6,VP8,MVC, 2160P@24FPS decoding, . on-line video such as YouTube, max support 4K,HTML5 playback,Flash10.1 playback |
| image |
Support JPG,BMP,PNG etc. picture formats, browse, orientation, slides, magnify |
| Power supply |
input:AC100-240V.50-60HZ, output: DC12V 3A |
RK3288: Model No.: AD-B02
RK3288 Board Technical Support and Service
- 24/7 online technical support for customers
- Email and telephone technical support
- Software updates and firmware upgrades
- Hardware repairs and replacements
- On-site repairs and maintenance services
- Training and user manuals
- Free technical advice and troubleshooting
Packing and Shipping:
Packaging and Shipping for RK3288 Board
The RK3288 Board is packaged in a standard cardboard box. All components inside the package are securely packed and labeled with the product name and model number. The contents of the package are as follows:
The RK3288 Board is shipped via a reputable courier service. Tracking details will be provided once the order is confirmed. The estimated delivery time is 7-14 business days depending on the destination.
SUNCHIP product list:
1, Android industrial Embedded board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android media player box for digital signage advertising: RK3399, RK3288, RK3328.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Stretched lcd Display signage, support ODM.
5, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
6, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
7, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
8, Embedded touch desk: such as 32inch.
9, Face recognition temperature detection terminal machine: such as 8inch.
1) Q: Is SUNCHIP a factory or simply a trading company?
A: We are a TRUE OEM/ODM factory. Please read our COMPANY PROFILE, for more information on this issue.
2) Q: What payment methods are available to me?
A: We accept most of the payment methods: accept VISA, Pay Later,T/T,Western Union,Paypal and Cash.
3) Q: How long is the warranty time?
A: 1 Year.
4) Q: What are the shipment terms and delivery times of your company?
A: Delivery / production time is directly affected by the size of the order. Also depending in which season you are shipping.
5) Q: Do you give any discounts ? A: Prices are directly affected by the quantity. We have many ways to help our partners when starting the sample processes. Make sure to ask our sales on how we can make you save some charges.
6) Q: I would like to add my company logo on your products, is this possible?
A: SURE.We customize on a regular basis products for many large retaillers and brands. If your order is at the below 10 units, we can consider this as a SAMPLE order, some fees might apply for the logo prints.Different methodes are used for logos, please ask our sales for more information on this issue, we will surely find the right solution for you.
you can also tell us your requirements, so that we advise you a matched solution
