RK3399 Android Main Board EDP LVDS MIPI 10/100/1000M Ethernet Embedded System Board

RK3399 Android Main Board EDP LVDS MIPI 10/100/1000M Ethernet Embedded System Board
RK3399 Android Main Board EDP LVDS MIPI 10/100/1000M Ethernet Embedded System Board
RK3399 Android Main Board EDP LVDS MIPI 10/100/1000M Ethernet Embedded System Board RK3399 Android Main Board EDP LVDS MIPI 10/100/1000M Ethernet Embedded System Board RK3399 Android Main Board EDP LVDS MIPI 10/100/1000M Ethernet Embedded System Board RK3399 Android Main Board EDP LVDS MIPI 10/100/1000M Ethernet Embedded System Board RK3399 Android Main Board EDP LVDS MIPI 10/100/1000M Ethernet Embedded System Board

Large Image :  RK3399 Android Main Board EDP LVDS MIPI 10/100/1000M Ethernet Embedded System Board

Product Details:
Place of Origin: China
Brand Name: ADW
Model Number: AD-K28P
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD50~USD70/pc
Packaging Details: 1pc/bubble bag, proper qty in a carton
Delivery Time: 1~3days if have stock, 30 days if out of stock
Payment Terms: T/T, Western Union
Supply Ability: 1,000,000pcs per month

RK3399 Android Main Board EDP LVDS MIPI 10/100/1000M Ethernet Embedded System Board

Description
CPU: Rockchip RK3399 Dual-core Cortex-A72+ Quad-core Cortex-A53 CPU RAM: LPDDR4 4G
ROM: EMMC 8GB/16G/32G/64G Optional (label 16GB) Display Interface: LVDS,EDP,MIPI
Touch Screen: Support USB IR Multi Touch, Sonic Multi Touch, Optical Multi Touch,Provide I2C Interface Network: RJ45 Interface, Ethernet 10/100M
WIFI& BT: Support Wi-Fi 802.11b/g/n/, And Support BT4.0 Support (optional WIFI 802.11 A/b/g/n/ac 5G&2.4G) GPU: ARM Mali-T860MP4 GPU
Screen Voltage: Support 3.3V/5V/12V Optional
Highlight:

EDP LVDS MIPI Embedded System Board

,

RK3399 Android Main Board

,

10/100/1000M Embedded System Board

RK3399 Android Board, EDP LVDS MIPI 10/100/1000M Ethernet embedded system Board

Summary for embedded system Board:


The intelligent industrial all-in-one board adopts the Rockchip RK3399 six-core chip solution and supports the Android9.0 system. Powerful computing power. Support H.265 4K video playback. Rich interface, enhanced power management circuit. It is suitable for intelligent remote network control: equipment such as industrial, medical, large advertising machine, educational video terminal and so on.

Feature for embedded system Board:

  • Support 7-inch to 84-inch various LVDS interface displays (point-to-point full HD display 1920*1080).
  • Support EDP interface display screen.
  • Support MIPI interface display screen.
  • Multiple interactive mode interfaces: capacitive touch, infrared touch, infrared remote control, USB keyboard and mouse, multi-point optical touch.
  • Multiple network interfaces: Ethernet, wireless Wifi, Bluetooth.
  • Multi-channel USB interface, serial port, IO port output.
  • Support 4K video playback and HDMI 2.0 high-definition output.
  • Strong anti-electromagnetic interference and electromagnetic compatibility.

Basic hardware specification for embedded system Board:


CPU Rockchip RK3399 dual-core Cortex-A72+ quad-core Cortex-A53 CPU
GPU ARM Mali-T860MP4 GPU
Run and save LPDDR4 4G
Built-in storage capacity EMMC 8GB/16G/32G/64G optional (label 16GB)
Display interface LVDS interface (single-channel, 6-bit dual-channel, 8-bit dual-channel). Support maximum resolution 1920x1080, support 7"-84" display
  EDP screen interface, maximum resolution 4K
  MIPI screen interface, maximum resolution 1920*1080
Screen voltage Support 3.3V/5V/12V optional
Touch screen

Provide I2C interface (multi-point capacitive touch)

Support USB multi-point capacitive touch, multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch

Network With RJ45 interface, support 10/100 Ethernet
  Equipped with Wifi&BT module, supporting Wi-Fi 802.11a/b/g/n/ ac protocol. Support BT4.0
Image rotation Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation, gravity sensor function (optional)
Real Time Clock External real-time clock power supply battery
Interface device Support MIPI interface camera
  6 USB HOST (support usb camera@500W usb printer, U disk, mouse, keyboard and standard usb peripherals)
  2 groups of UART, 1 group of SPI or 1 group of UART, 2 groups of SPI. Support external serial devices (NFC module, printer, card reader, etc.)
  SD card, maximum support 64GB
  Class D power amplifier: 3W*2 8 ohms, support microphone
  HDMI 2.0 output
Audio MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP Format
Video Support H.264, MPEG2, VP6, VP8, MVC and other video formats 2160P@24FPS decoding. YouTube and other online videos, up to 4K, HTML5 video playback, Flash 10.1 playback
Picture Support JPG, BMP, PNG, GIF and other image formats to browse and support rotation/image enlargement function
Power Adapter Input: AC100-240V.50-60HZ, output: DC12V 3A


Basic software specification for embedded system Board:


Operating system Android 9.0
Basic software functions Web browsing, email, e-book, resource manager
Sound effect mode Clock, alarm clock, calculator, recording
Voice support Multinational voice
Recording Support MP3, WMA format recording
Tool Calendar
  Alarm Clock
  Calculator
  Note
  Weather + clock
  Recording
File processing EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT
Ebook PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2
Schedule Calendar
Input Standard Andriod keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.)
Network Browser -ChromeLite
  Email
  Gmail
System Management APK installer
  The original ecological Android system, open root permissions, can be customized product development
  Real-time remote monitoring, self-recovery from system crashes, 7*24 hours unattended
  Support OTA remote upgrade
  System setting
  Google Maps
  Global time

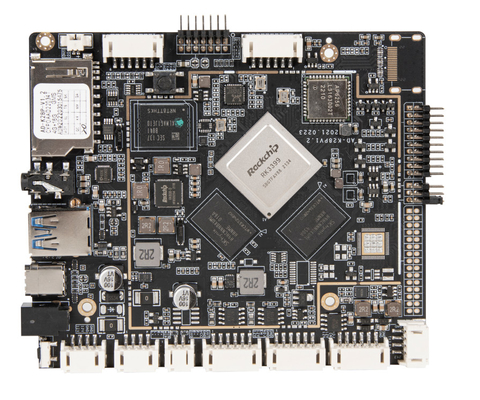

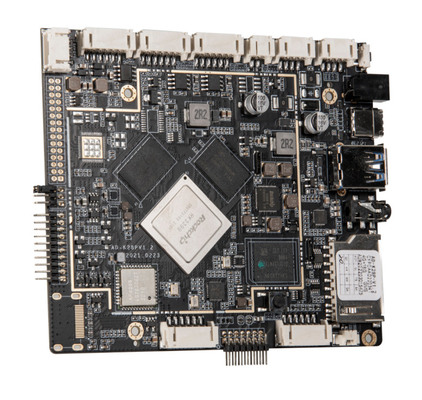

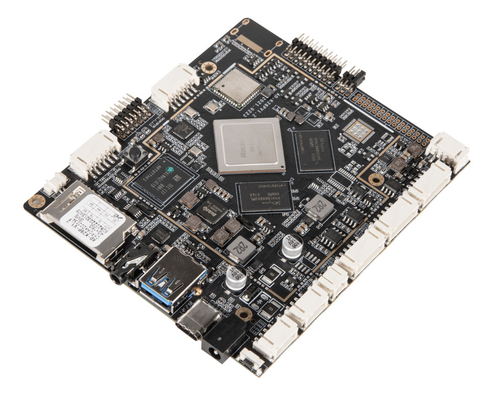

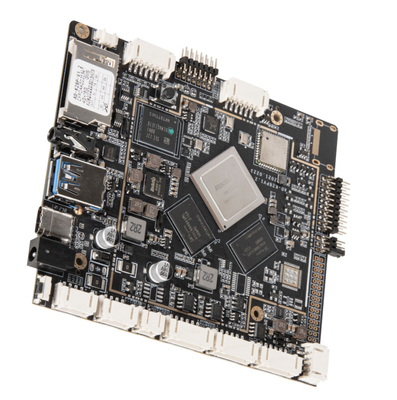

Product picture for Android board:
RK3399 Android Main Board EDP LVDS MIPI 10/100/1000M Ethernet Embedded System Board 0RK3399 Android Main Board EDP LVDS MIPI 10/100/1000M Ethernet Embedded System Board 1
RK3399 Android Main Board EDP LVDS MIPI 10/100/1000M Ethernet Embedded System Board 2RK3399 Android Main Board EDP LVDS MIPI 10/100/1000M Ethernet Embedded System Board 3
