Product Description:
Overview:
The intelligent industrial all-in-one machine features a large board that utilizes the Rockchip RK3568 quad-core chip solution. It is capable of supporting the Android 11 operating system and comes equipped with an enhanced power management circuit. Additionally, the machine supports commonly used external devices and boasts rich interfaces with stable performance.
Applications for the intelligent industrial all-in-one machine include intelligent remote network control. It is especially suitable for use with equipment such as industrial machinery, medical devices, large advertising machines, educational video terminals, and other similar equipment.
Main specifications:
| Operating system |
Android 11 system |
| Basic software functions |
Web browsing, web chat, email, e-book, resource manager |
| Sound effect mode |
Clock, alarm clock, calculator, recording |
| Language support |
Multi-lingual |
| Recording |
Support MP3, WMA format recording |
|
Tool
|
Calendar |
| Alarm Clock |
| Calculator |
| Note |
| Weather + clock |
| Recording |
| Word processing |
EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
| E-book |
PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 |
| Schedule |
Calendar |
| Input |
Standard Android keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.) |
|
Network
|
Browser -Chrome Lite |
| GOOGLE Market |
| Email |
| Gmail |
| Google talk |
| System Management |
Support OTA remote upgrade, U disk upgrade, SD upgrade (silent installation) |
| Original ecological Android system, open root permission, can carry out product customization development |
| Customizable local or remote server management system |
| Support a variety of third-party Android remote advertising systems |
| Support multiple serial devices, USB devices |
| Support dual-screen different display |
| CPU |
Rockchip RK3568 quad-core 64-bit Cortex-A55, GPU Mali-G52 |
| Main frequency |
Up to 2.0 GHz |
| RAM |
DDR4 2G/4G optional |
| Built-in storage capacity |
EMMC 8GB/16G/32G/64G optional (label 16GB) |
|
Display interface
|
LVDS interface (LVDS and MIPI are Only one of them can be selected) |
| MIPI interface (LVDS and MIPI are Only one of them can be selected) |
| EDP interface |
| Screen voltage |
Support 3.3V/5V/12V optional |
| Touch screen |
Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch).
Support USB multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch.
|
|
The internet
|
With RJ45 interface, support 10/100/1000M Ethernet. |
| Equipped with WIFI &BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0 |
| Image rotation |
Support 0-degree, 90-degree, 180-degree, 270-degree manual/auto rotation, support gravity sensor function |
| Real Time Clock |
External real-time clock power supply battery |
|
Interface device
|
Support MIPI interface camera, up to 500W pixels |
| 4 USB HOST, 1 USB OTG (support usb camera@500W usb printer, U disk, mouse, keyboard, standard usb peripherals) |
| 3 groups of serial ports. Support external serial device module (NFC module, printer, card reader, etc.) |
| TF card, maximum support 32GB |
| Class D power amplifier: 3W*2 8 ohms, support microphone |
| HDMI 2.0 output |
| Audio |
MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP format |
| Video |
Support 4K 60fps H.265/H.264/VP9 video decoding. Support 1080P 100fps H.265/H.264 video encoding. Support 8M ISP, support HDR. |
| Picture |
Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function |
| Power Adapter |
Input: AC100-240V.50-60HZ, output: DC12V 3A |
Applications:
Retail Digital Signage:
Digital menu boards have become increasingly popular in retail shops. They allow retailers to promote their products and services in a dynamic and engaging way. Digital signage provides an interactive and immersive experience for customers, which not only enhances the overall shopping experience but also encourages customers to make purchases.
Retail digital signage is a powerful marketing tool that allows businesses to create and distribute content in real-time across multiple locations. With the ability to update content instantly, retailers can provide up-to-date information on products and prices, seasonal promotions, and even social media feeds.
Digital menu boards offer retailers flexibility and the ability to change content quickly and easily. They can be used to display menu items, daily specials, and promotions. By using high-quality images and videos, retailers can create a visually engaging experience that captures customers' attention and encourages them to engage with the brand.
With the rise of online shopping, it has become more important than ever for retailers to create a unique and memorable in-store experience. Digital menu boards provide an opportunity for retailers to differentiate themselves from their competitors and create a lasting impression on their customers.
Customization:

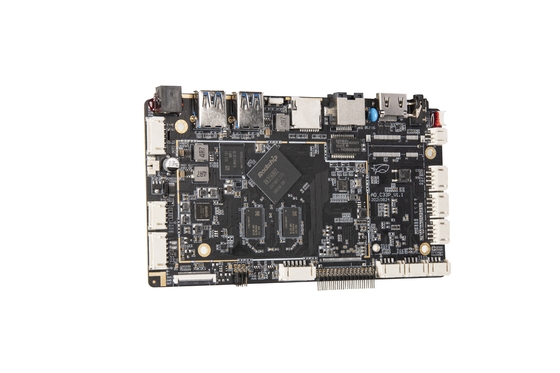

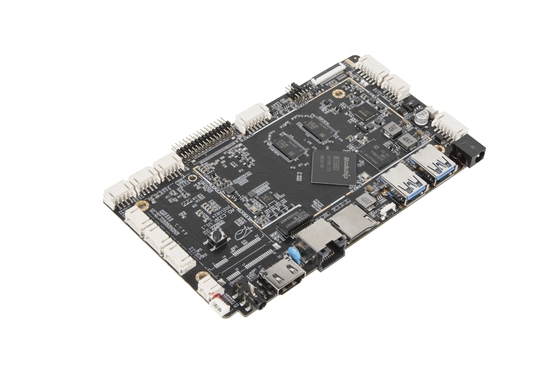

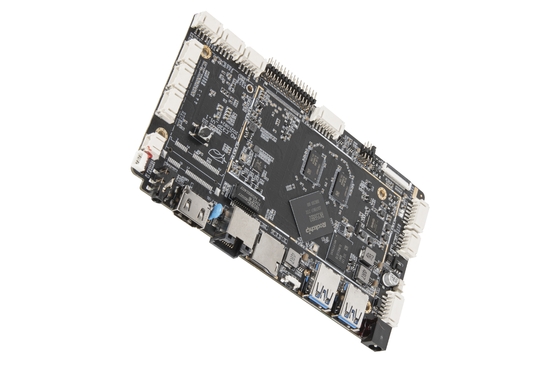

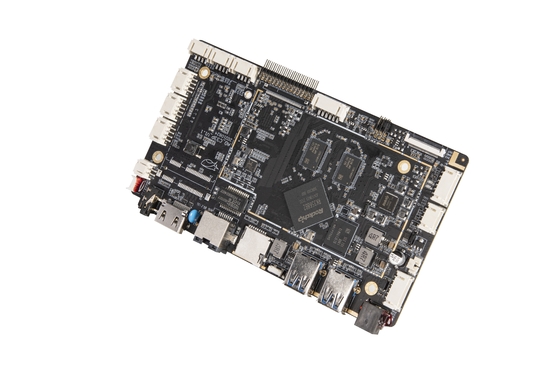

Product Name: RK3568 Android 11 Embedded System Board
Brand Name: Sunchip
Model Number: AD-C33P
Place of Origin: China
Minimum Order Quantity: 2pcs
Price: Negotiated
Packaging Details: 60pcs/Carton
Delivery Time: Samples sent out 1-7 days, MP lead time 15-30 days
Payment Terms: 100% T/T for samples, Negotiated for MP
Supply Ability: 10,000pcs/Month
Storage: EMMC 16GB/32GB Optional
Warranty: 1 Year
Serial ports: UART X3 / GPIO
Display: LVDS , EDP , MIPI , HD
Sunchip offers product customization services for the RK3568 Android 11 Embedded System Board, an industrial board that is perfect for various applications. We can modify the storage capacity, add or remove serial ports, and customize the display according to your specific requirements. Contact us to discuss your customization needs and we will provide you with a quote.
Support and Services:
Available Customization that from Sunchip:
Regarding software:
1. Booting logo/animation
2. Model number of the Android System
3. Build number of the Android System
4. Pre-install APK
5. Delete APK
6. Set defaulted time zone
7. Set defaulted language
8. Virtual Keyboard (the current defaulted is English Keyboard)
9. Other requirements etc.
Regarding hardware: ODM layout
……More customization is waiting for your checking.
Packing and Shipping:
FAQ:
Q: Are you trading company or factory?
A: We are OED & ODM factory, and we have own hardware and software R&D team.
Q: How can I pay for samples and bulk order?
A: bank T/T,PayPal, Alibaba platform,West link,all of them are acceptable.
Q: What is the warranty time?
A: Defaulted 1-year. If need to add the warranty time, price will be increased.
Q: Do you have any discount?
A: Based on the different quantities, better prices if better quantities.
Q: How about the lead time?
A: Samples 1-7 days, MP 25-30 days.
Q: What kinds of customization do you support?
A: Hardware customization, software customization, product silkscreen and label customization.
Contact: Ms. Peki Chen
SHENZHEN SUNCHIP TECHNOLOGY CO., LTD
WeChat: yanzi051624, Skype: peki_99
Email: peki@sunchip-tech.com
Mob/WhatsApp: +86-18617109639
