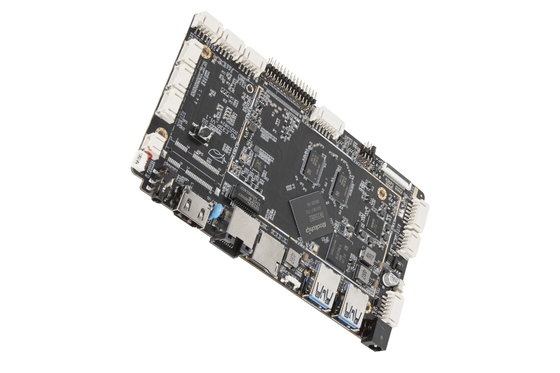

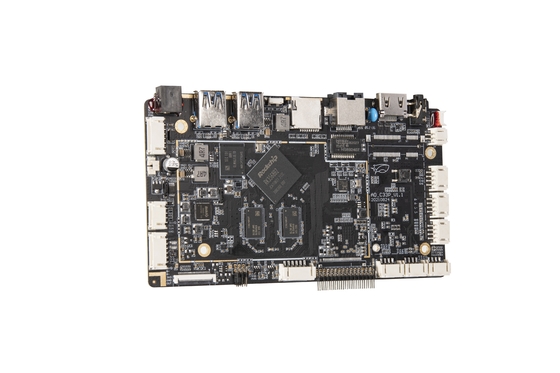

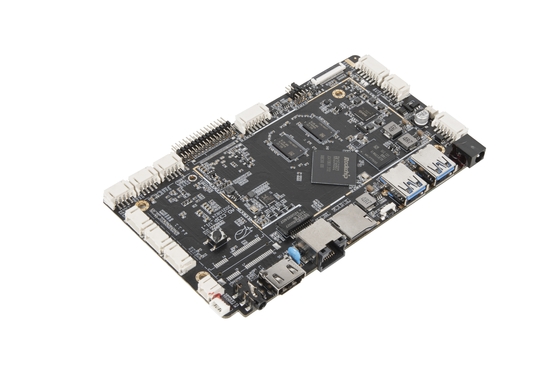

Customized RK3568 Android 11 DDR4 Embedded System Board with Ethernet/Wi-Fi/BT DC 12v PCBA Industrial Development Board
Model NO.: AD-C33P
Product Description:
Overview:
The intelligent industrial all-in-one machine features a large board powered by the Rockchip RK3568 quad-core chip solution. It supports the Android 11 system and boasts an enhanced power management circuit. The machine is also designed to support commonly used external devices. With its rich interfaces and stable performance, the intelligent industrial all-in-one machine is especially suitable for intelligent remote network control. It can be used with various types of equipment, such as industrial, medical, large advertising machines, educational video terminals and other equipment.
The Rockchip RK3568 quad-core chip solution is a high-performance and energy-efficient chip that provides the intelligent industrial all-in-one machine with the computing power it needs to run a variety of industrial applications. The Android 11 system is a modern and user-friendly operating system that ensures a stable and consistent user experience.
The enhanced power management circuit of the intelligent industrial all-in-one machine is designed to ensure optimal power efficiency and to extend the machine's lifespan. This is critical for industrial applications, where machines need to be reliable and durable.
The intelligent industrial all-in-one machine is equipped with a variety of interfaces that provide flexibility and versatility. This includes USB, HDMI, LAN, and serial ports, as well as audio and video input/output. These interfaces allow the machine to be easily integrated with other devices and ensure seamless communication and data transfer.
In summary, the intelligent industrial all-in-one machine is an excellent choice for industrial applications that require remote network control. Its stable performance, energy efficiency, and flexible interfaces make it a reliable and versatile solution for a wide range of industrial, medical, advertising, and educational applications.
Features:
| CPU |
Rockchip RK3568 quad-core 64-bit Cortex-A55, GPU Mali-G52 |
| Main frequency |
Up to 2.0 GHz |
| RAM |
DDR4 2G/4G optional |
| Built-in storage capacity |
EMMC 8GB/16G/32G/64G optional (label 16GB) |
|
Display interface
|
LVDS interface (LVDS and MIPI are Only one of them can be selected) |
| MIPI interface (LVDS and MIPI are Only one of them can be selected) |
| EDP interface |
| Screen voltage |
Support 3.3V/5V/12V optional |
| Touch screen |
Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch).
Support USB multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch.
|
|
The internet
|
With RJ45 interface, support 10/100/1000M Ethernet. |
| Equipped with WIFI &BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0 |
| Image rotation |
Support 0-degree, 90-degree, 180-degree, 270-degree manual/auto rotation, support gravity sensor function |
| Real Time Clock |
External real-time clock power supply battery |
|

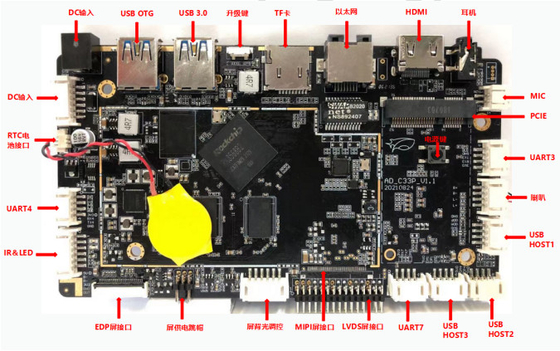

Interface device
|
Support MIPI interface camera, up to 500W pixels |
| 4 USB HOST, 1 USB OTG (support usb camera@500W usb printer, U disk, mouse, keyboard, standard usb peripherals) |
| 3 groups of serial ports. Support external serial device module (NFC module, printer, card reader, etc.) |
| TF card, maximum support 32GB |
| Class D power amplifier: 3W*2 8 ohms, support microphone |
| HDMI 2.0 output |
| Audio |
MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP format |
| Video |
Support 4K 60fps H.265/H.264/VP9 video decoding. Support 1080P 100fps H.265/H.264 video encoding. Support 8M ISP, support HDR. |
| Picture |
Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function |
| Power Adapter |
Input: AC100-240V.50-60HZ, output: DC12V 3A |
| Operating system |
Android 11 system |
| Basic software functions |
Web browsing, web chat, email, e-book, resource manager |
| Sound effect mode |
Clock, alarm clock, calculator, recording |
| Language support |
Multi-lingual |
| Recording |
Support MP3, WMA format recording |
|
Tool
|
Calendar |
| Alarm Clock |
| Calculator |
| Note |
| Weather + clock |
| Recording |
| Word processing |
EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
| E-book |
PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 |
| Schedule |
Calendar |
| Input |
Standard Android keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.) |
|
Network
|
Browser -Chrome Lite |
| GOOGLE Market |
| Email |
| Gmail |
| Google talk |
| System Management |
Support OTA remote upgrade, U disk upgrade, SD upgrade (silent installation) |
| Original ecological Android system, open root permission, can carry out product customization development |
| Customizable local or remote server management system |
| Support a variety of third-party Android remote advertising systems |
| Support multiple serial devices, USB devices |
| Support dual-screen different display |
Applications:
.
Product Name: Android Embedded ARM Board
Application Scenario: Industrial, Medical, Advertising machine, LCD digital signage, Education etc.
Application products:
It can be directly applied to a variety of products. Such as Computing Storage, Smart Robot, Game Equipment, Commercial Display, Medical Equipment, Vending Machine, Intelligent POS, Interactive Printer etc.
Customization:
Available Customization that from Sunchip:
Regarding software:
1. Booting logo/animation
2. Model number of the Android System
3. Build number of the Android System
4. Pre-install APK
5. Delete APK
6. Set defaulted time zone
7. Set defaulted language
8. Virtual Keyboard (the current defaulted is English Keyboard)
9. Other requirements etc.
Regarding hardware: ODM layout
……More customization is waiting for your checking.
Support and Services:
1, More than 10 years of PCBA design and production experience.
2, A R&D team of more than 80 people, including hardware engineers (layout, debugging) and software engineers (drivers, kernels, testing, apk engineers).
ID Design engineer, Mechanical Design engineer, -> Support OEM/ODM.
3, Team of more than 160 people.
4, One-stop service: PCB design, prototype, production, PCBA SMT, testing, shell design, assembly, software customization, QC control, after-sales.
5, Got ISO9001 factory certification.
6, More than 3500 square meters of office and factory area
Packing and Shipping:
FAQ:
Q: Are you trading company or factory?
A: We are OED & ODM factory, and we have own hardware and software R&D team.
Q: How can I pay for samples and bulk order?
A: bank T/T,PayPal, Alibaba platform,West link,all of them are acceptable.
Q: What is the warranty time?
A: Defaulted 1-year. If need to add the warranty time, price will be increased.
Q: Do you have any discount?
A: Based on the different quantities, better prices if better quantities.
Q: How about the lead time?
A: Samples 1-7 days, MP 25-30 days.
