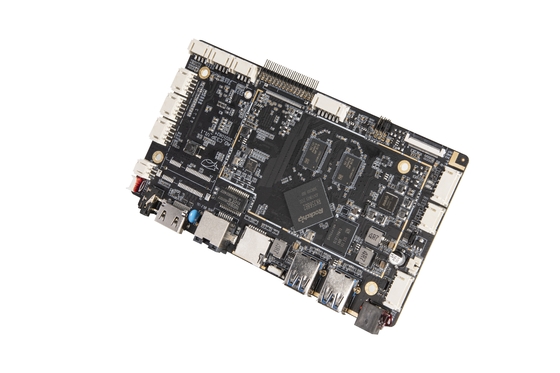

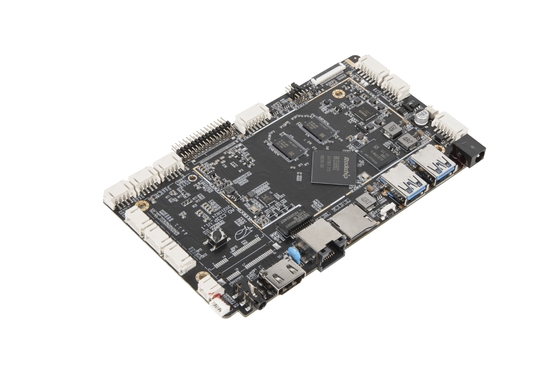

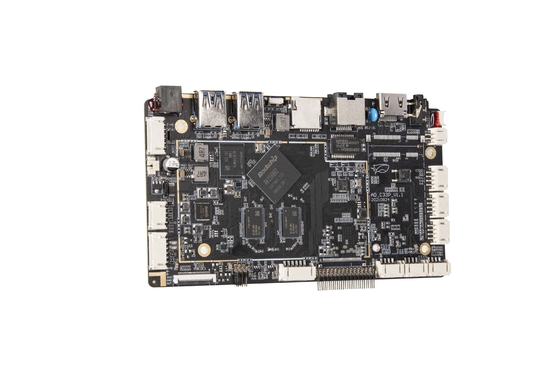

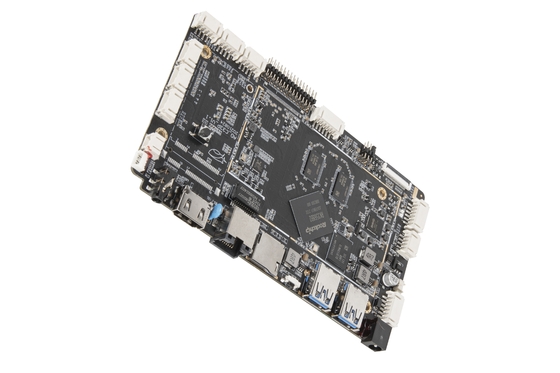

Rockchip RK3568 Android 11 OS Embedded Board DC 12v For Vending Machine / Digital Menu / Signage Board

Rockchip RK3568 Android 11 OS Embedded Board DC 12v For Vending Machine / Digital Menu / Signage Board
Rockchip RK3568 Android 11 OS Embedded Board DC 12v For Vending Machine / Digital Menu / Signage Board
Rockchip RK3568 Android 11 OS Embedded Board DC 12v For Vending Machine / Digital Menu / Signage Board Rockchip RK3568 Android 11 OS Embedded Board DC 12v For Vending Machine / Digital Menu / Signage Board Rockchip RK3568 Android 11 OS Embedded Board DC 12v For Vending Machine / Digital Menu / Signage Board Rockchip RK3568 Android 11 OS Embedded Board DC 12v For Vending Machine / Digital Menu / Signage Board Rockchip RK3568 Android 11 OS Embedded Board DC 12v For Vending Machine / Digital Menu / Signage Board

Large Image :  Rockchip RK3568 Android 11 OS Embedded Board DC 12v For Vending Machine / Digital Menu / Signage Board

Product Details:
Place of Origin: China
Brand Name: Sunchip
Certification: ISO9001, ISO4001, ISO27001
Model Number: AD-C33P
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: 60pcs/box
Delivery Time: 2-8days
Payment Terms: T/T, Western Union, PayPal

Rockchip RK3568 Android 11 OS Embedded Board DC 12v For Vending Machine / Digital Menu / Signage Board

Description
Storage: EMMC 16GB/32GB Optional Memory: DDR4 2GB/4GB Optional
Internet: Ethernet/Wi-Fi/BT/3G/4G Temperature Range: -20-60℃
Operating System: Android 11 Warranty: 1 Year
USB: USB 3.0 X1, USB OTG X1, USB Host X3 Size: 150*85mm
Highlight:

Embedded Board for Digital Menu

,

Vending Machine Embedded Board

,

Android 11 OS Embedded Board



Rockchip Reliable Solution RK3568 Android 11 OS Embedded Board DC 12v For Vending Machine digital menu or signage board



Model NO.: AD-C33P



Product Description:

Embedded System Board

The large board of the intelligent industrial all-in-one machine adopts the Rockchip RK3568 quad-core chip solution. Support Android 11 system. Enhanced power management circuit. Support commonly used external devices. Rich interfaces and stable performance. Suitable for intelligent remote network control: equipment such as industrial, medical, large advertising machines, educational video terminals and other equipment.

Rockchip RK3568 Android 11 OS Embedded Board DC 12v For Vending Machine / Digital Menu / Signage Board 0Rockchip RK3568 Android 11 OS Embedded Board DC 12v For Vending Machine / Digital Menu / Signage Board 1

  1. Support 7-inch to 84-inch various LVDS interface displays (point-to-point full HD display 1920*1080).
  2. Support EDP interface display screen.
  3. Support MIPI interface display screen.
  4. Multiple network interfaces: Ethernet, wireless Wifi, Bluetooth, 4G.Multiple interactive mode interfaces: capacitive touch, infrared touch, infrared remote control, USB keyboard and mouse, multi-point optical touch.
  5. Multi-channel USB interface, serial port.
  6. Strong anti-electromagnetic interference and electromagnetic compatibility.



Basic Hardware Information

CPU Rockchip RK3568 quad-core 64-bit Cortex-A55, GPU Mali-G52
Main frequency Up to 2.0 GHz
RAM DDR4 2G/4G optional
Built-in storage capacity EMMC 8GB/16G/32G/64G optional (label 16GB)

Display interface





LVDS interface (single-channel, 6-bit dual-channel, 8-bit dual-channel). Support maximum resolution 1920x1080, support 7"-84" display
  MIPI interface
  EDP interface
Screen voltage Support 3.3V/5V/12V optional
Touch screen

Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch).

Support USB multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch.

The internet



With RJ45 interface, support 10/100/1000M Ethernet.
  Equipped with Wifi&BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0
Image rotation Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation, support gravity sensor function
Real Time Clock External real-time clock power supply battery





Interface device







Support MIPI interface camera, up to 500W pixels
  4 USB HOST, 1 USB OTG (support usb camera@500W usb printer, U disk, mouse, keyboard, standard usb peripherals)
  3 groups of serial ports. Support external serial device module (NFC module, printer, card reader, etc.)
  TF card, maximum support 32GB
  Class D power amplifier: 3W*2 8 ohms, support microphone
  HDMI 2.0 output
Audio MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP format
Video Support 4K 60fps H.265/H.264/VP9 video decoding. Support 1080P 100fps H.265/H.264 video encoding. Support 8M ISP, support HDR.
Picture Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function
Power Adapter Input: AC100-240V.50-60HZ, output: DC12V 3A


Basic software specifications:

Operating system Android 11 system
Basic software functions Web browsing, web chat, email, e-book, resource manager
Sound effect mode Clock, alarm clock, calculator, recording
Language support Multi-lingual
Recording Support MP3, WMA format recording





Tool







Calendar
Alarm Clock
Calculator
Note
Weather + clock
Recording
Word processing EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT
Ebook PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2
Schedule Calendar

Input Standard Andriod keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.)



Network





Browser -ChromeLite
  GOOGLE Market
  Email
  Gmail
  Google talk
System Management Support OTA remote upgrade, U disk upgrade, SD upgrade (silent installation)
  Original ecological Android system, open root permission, can carry out product customization development
  Customizable local or remote server management system
  Support a variety of third-party Android remote advertising systems
  Support multiple serial devices, USB devices
  Support dual-screen different display






Applications:

The Sunchip AD-C33P RK3568 Android 11 Embedded System Board is the perfect solution for any edge computing or digital signage application.

Product Name: Android Embedded ARM Board

Application Scenario: Industrial, Medical, Advertising machine, LCD digital signage, Education etc.



Application products:

It can be directly applied to a variety of products. Such as Computing Storage, Smart Robot, Game Equipment, Commercial Display, Medical Equipment, Vending Machine, Intelligent POS, Interactive Printer etc.

Rockchip RK3568 Android 11 OS Embedded Board DC 12v For Vending Machine / Digital Menu / Signage Board 2





CustomizationOther service in customization :

1. PCBA design

2. Housing design

3. Software and hardware customization

4. Logo print on housing

5. Software customization: Booting image, Boot animation,UI, Launcher, APP, Function

6. Good quality products

7. full after-sales service with technology support

8.100% QC check before shipping



Support and Services:



Rockchip RK3568 Android 11 OS Embedded Board DC 12v For Vending Machine / Digital Menu / Signage Board 3

Packing and Shipping:



Rockchip RK3568 Android 11 OS Embedded Board DC 12v For Vending Machine / Digital Menu / Signage Board 4

Packaging and Shipping for Embedded System Board

  • Packaging:
    • The board will be placed in an ESD-safe bag.
    • The board will be placed in a bubble wrap for additional protection.
    • The board will be placed in a cardboard box with cushioning material.
  • Shipping:
    • The board will be shipped via an express delivery service.
    • The board will be shipped with a tracking number.
    • The board will be shipped with full insurance coverage.
