Product Details:
|
| CPU: | RK3588 8-core CPU 8nm Process 4 Cortex-A76 And 4 Cortex-A55 | GPU: | ARM Mali G610 MP4 GPU |
|---|---|---|---|
| OS: | Android 12 | 4G LTE: | Support Wireless 4G Network |
| LAN: | Support 1000M Wired Network Network | RAM: | 8GB/16G (optional) |
| Material: | Metal Case | NPU: | 6.0 TOPs |
| Main Frequency: | The Main Frequency Of The Large Core Is 2.1GHz, And The Main Frequency Of The Small Core Is 1.7GHz | Display: | HD / LVDS /MIPI /EDP |
| Audio: | 3.5mm | Camera: | 5MP |
| Network: | WiFi/BT/Ethernet | Power: | 12V/2A |
| Temperature: | 0-70°C | USB: | 2 X USB 2.0 |

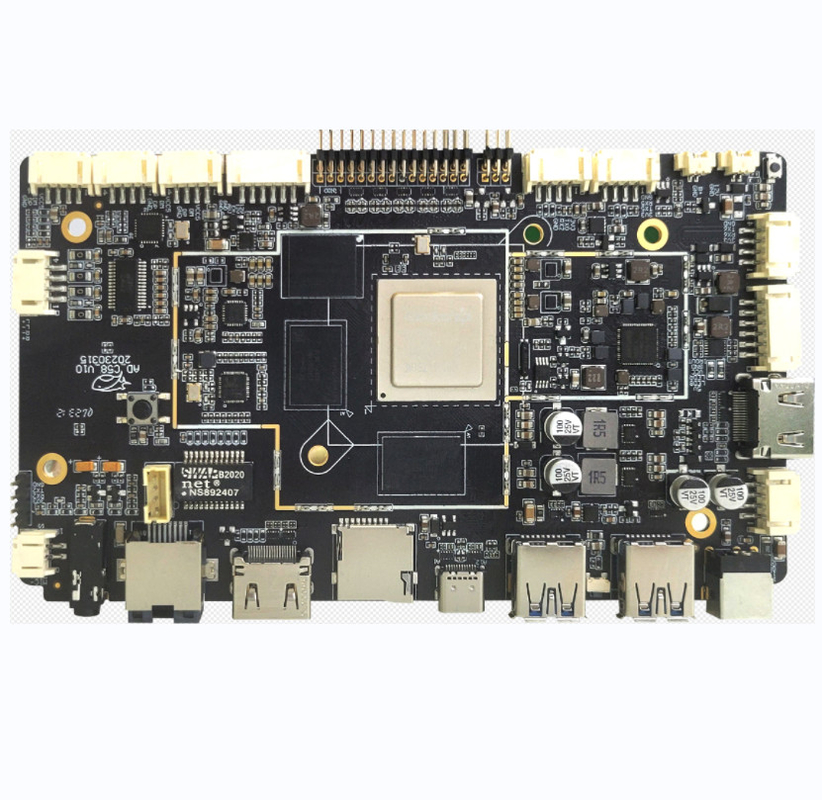

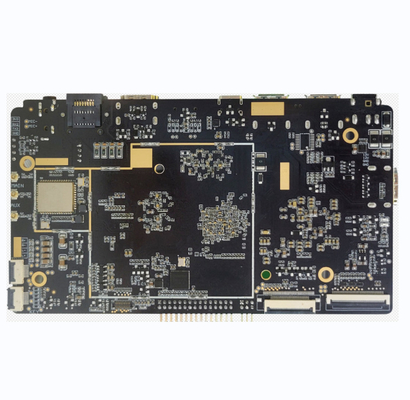

Embedded system Board Rk3588 8K Android Controller Board For touch screen kiosk
Product Model: AD-C58
Product Name: RK3588 Android Board
Brife information :
RK3588 ARM Quad Cortex-A76 and Quad Cortex-A55 2.4 GHz
▪ Onboard 4/8/16GB LPDDR4 memory and 32/64/128GB eMMC(Option)
▪ 1 x HD Out (8K 60fps), 1 x HD IN (4K 60fps), 1 x MIPI DSI, 1x LVDS
▪ 6T NPU support
▪ 2 x USB3.0, 2 x USB2.0 , mutiple ports for different devices
▪ WIFI 6/BT support
▪ RTC support
▪ Android12 support
Main Features:
1. High integration. Integrate USB / LVDS / Ethernet / HD / WIFI in one, simplify the whole
machine With SD card slot
2. High definition. Support 1080P / H.265 (4K2K) video decoding and various LVDS signal LCD
display / eDP signal interface
3. Built in power amplifier.
4. Rich interface. Support USB / serial port / GPIO / ADC interface expansion to meet
mainstream p eripherals on the market.
5. Complete functions. Support horizontal and vertical screen playback, video split screen,
scrolling subtitles, timer switch, USB data import and other functions.
6. Convenient management: humanized playlist making software, easy to manage and controladvertising.
Play log, easy to understand the playback situation.
Product Specification:
| CPU | Rockchip RK3588 octa-core 64-bit size core architecture,4*Cortex-A76 + 4*Cortex-A55 |
| Main frequency | The main frequency of the large core is 2.1GHz, and the main frequency of the small core is 1.7GHz |
| GPU | ARM Mali-G610 MC4 |
| OpenGL ES 1.1/2.0/3.1/3.2 | |
| Vulkan 1.1,1.2 | |
| OpenCL 1.1,1.2,2.0 | |
| Embedded high-performance 2D image acceleration module | |
| NPU | 6TOPS AI computing power, triple-core architecture, support int4/int8/int16/FP16/BF16/TF32, enabling various AI scenarios |
| Memory | 4GB/8GB/16GB(Up to 32GB)64bit LPDDR4/LPDDR4x |
| Built-in storage capacity | EMMC 32G/64G/128G/256G(optional) |
| Display interface | HD OUT(Up to 8K@60FPS) |
| HD IN(Up to 8K@60FPS) | |
| LVDS display interface | |
| EDP display interface | |
| MIPI display interface | |
| Screen voltage | Support 3.3V/5V/12V optional |
| Touch screen | Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch).Support USB multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch. |
| Network | With RJ45 interface, support 10/100/1000M Ethernet. |
|
Equipped with AP6275S industrial WiFi-6 module SIDO/PCIE dual-channel Bluetooth WiFi module 2T2R 802.11 ax/ac/a/b/g/n Wi-Fi + BT 5.0 Module
|
| Image rotation | Support 0 degree, 90 degree, 180 degree, 270 degree manual/automatic rotation, support gravity sensing function |
| Real Time Clock | Built-in real-time clock powered by battery |
|
Interface device |
Support MIPI interface camera, support 500W pixels | |
| 3 USB HOST 2.0 (4PIN2.0 spacing connectors) | All support usb camera@500W usb printer, U disk, mouse, keyboard, standard usb peripherals | |
| 2 USB HOST3.0 (standard interface) | ||
| 1 full-featured Type-C interface (OTG) | ||
| 3 sets of serial ports, support external serial device modules (NFC module, printer, card reader, etc.) | ||
| TF card, maximum support 128GB | ||
| Class D power amplifier: default 3W*2 8 ohms, support microphone | ||
| Audio | MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP Format |
| Video |
Support H.265/H.264/AV1/VP9/AVS2 video decoding, up to 8K60FPS Support H.264/H.265 video encoding, up to 8K30FPS |
| Picture |
Support JPG, BMP, PNG and other image formats to browse and support rotation/slide show/image enlargement functions |
| Power Adapter | Input: AC100-240V.50-60HZ, Output: DC12V 3A (positive inside and negative outside) |
Basic Software Specification :
|
Operating system |
Android 12 and above |
|
Basic software function |
Web browsing, web chat, email, e-books, explorer |
|
Sound mode |
Clock, Alarm Clock, Calculator, Recording |
|
Language support |
Multi-lingual |
|
Recording |
Support MP3, WMA format recording |
|
Tools |
Calendar |
|
|
Alarm Clock |
|
|
Calculator |
|
|
Note |
|
|
Weather+clock |
|
|
recording |
|
Word processing |
EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
|
E-book |
PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 |
|
Schedule |
Calendar |
|
Input method |
Standard Andriod keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.) |
|
Network |
Browser -ChromeLite |
|
|
GOOGLE Market |
|
|
|
|
|
Gmail |
|
|
Google talk |
|
System Management |
Support OTA remote upgrade, U disk upgrade, SD upgrade (silent installation) |
|
|
Original ecological Android system, open root permission, and can carry out product customization development |
|
|
Customizable local or remote server management system |
|
|
Support multiple third-party Android remote advertising publishingsystems |
|
|
Support multiple serial devices, USB devices, IO control devices |
