Embedded System Board RK3566 Quad Core Android Board For Self-service Touch Screen Kiosk

Embedded System Board RK3566 Quad Core Android Board For Self-service Touch Screen Kiosk
Embedded System Board RK3566 Quad Core Android Board For Self-service Touch Screen Kiosk
Embedded System Board RK3566 Quad Core Android Board For Self-service Touch Screen Kiosk Embedded System Board RK3566 Quad Core Android Board For Self-service Touch Screen Kiosk Embedded System Board RK3566 Quad Core Android Board For Self-service Touch Screen Kiosk Embedded System Board RK3566 Quad Core Android Board For Self-service Touch Screen Kiosk

Large Image :  Embedded System Board RK3566 Quad Core Android Board For Self-service Touch Screen Kiosk

Product Details:
Place of Origin: Shenzhen, China
Brand Name: ADW, SUNCHIP
Certification: CE, ROHS, FCC, ISO9001
Model Number: AD-C36-V1.1
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: $39USD~$56USD
Packaging Details: Carton / Wooden case
Delivery Time: Samples: 1-3 days; MP: 25 days;
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 6000 Units per Month
Contact Now

Embedded System Board RK3566 Quad Core Android Board For Self-service Touch Screen Kiosk

Description
CPU: Rockchip RK3566 Quad-core A55 OS: Android 11 And Above
Main Frequency: 1.8 GHz NPU: 1TOPS Computing Power, Support Int8/int16
RAM: 2G DDR4 Built-in Storage Capacity: EMMC 16G/32G/64G Optional
Display Interface: HD, MIPI, LVDS, EDP(optional) Screen Voltage: 3.3V/5V/12V Optional
TOUCH: USB OR I2C Network: WIFI, BT, LAN, 4G Optional
G-Sensor: Yes RTC: Real Time Clock Supported
Products Status: Stock Application: Audio Player;ultrathin AIO;embedded Industrial System;etc,digital Signage
Highlight:

Self-service Kiosk Embedded System Board

,

Touch Screen Kiosk Android Board

,

RK3566 Quad Core Android Board

Embedded system Board RK3566 Quad Core android board with MIPI LVDS EDP HD For self-service touch screen Kiosk



Application Scenario: Industrial, Medical, Advertising machine, LCD digital signage, Education etc.

Embedded System Board Overview:

  • Intelligent industrial all-in-one large board, using Rockchip RK3566 quad-core chip solution.
  • Support Android 11 system. Enhanced power management circuit.
  • Support common external devices. Rich interface and stable performance.
  • Suitable for intelligent remote network control: class industrial, medical, large advertising machines, educational video terminals and other equipment.

Embedded System Board Characteristic:

  • Support MIPI interface display + EDP interface display + LVDS interface display + HD 2.0 (4K display)
  • Multiple interaction mode interface: capacitive touch, infrared touch, USB keyboard and mouse, multi-point optical touch.
  • Multiple network interfaces: Ethernet, wireless Wifi, Bluetooth.
  • Multiple USB ports, serial ports.
  • Strong resistance to electromagnetic interference and electromagnetic compatibility.

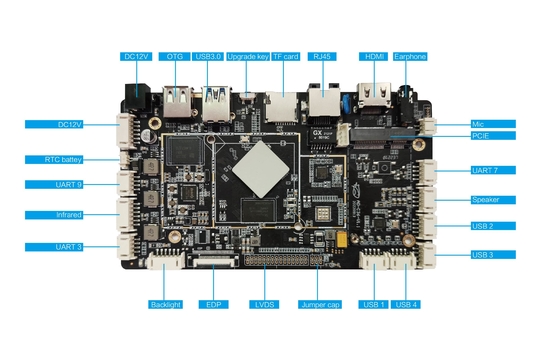

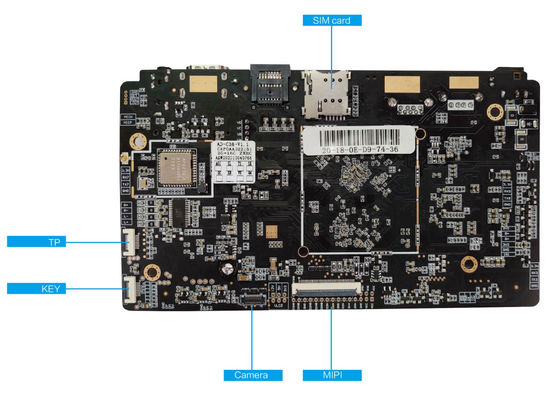

Embedded System Board Pictures:

Embedded System Board RK3566 Quad Core Android Board For Self-service Touch Screen Kiosk 0Embedded System Board RK3566 Quad Core Android Board For Self-service Touch Screen Kiosk 1



Basic hardware specifications:



CPU Rockchip RK3566 Quad-core A55 architecture
Main frequency 1.8GHz
GPU ARM Mali-G52 2EE
OpenGL ES 1.1/2.0/3.2
Vulkan 1.1
OpenCL 2.0
Embedded with high performance 2D acceleration hardware
NPU 1TOPS computing power, support int8/int16
RAM 2G DDR4
Built-in storage capacity EMMC 16G/32G/64G optional
Display Interface HD 2.0(maximum support 4K@60FPS)
MIPI display interface (MIPI and LVDS can only be selected as one)
LVDS display interface (MIPI and LVDS can only be selected as one)
EDPdisplay interface
Screen voltage 3.3V/5V/12V optional
Touch screen

Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch)

Support USB multi-point infrared touch, multi-point acoustic touch, multi-point optical touch.
Network With RJ45 interface, support 10/100M Ethernet.
With Wifi & BT module, support Wi-Fi 802.11b/g/n protocol. Support BT4.0
Image rotation Support 0 degrees, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, support gravity sensing function
Real-time clock Built-in real-time clock powered battery
Interface device Support MIPI interface camera, support up to 500W pixels
4 USB HOST 2.0, 1 USB HOST3.0, 1 USB OTG (support usb camera @ 500W usb printer , USB stick , mouse , keyboard standard usb peripherals)
2 groups of serial ports, support external serial device modules (NFC modules, printers, card swipes, etc.)
TF card, supports up to 32GB
Class D amplifier: 3W*2 8 ohms, microphone support
Audio MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP
Video

Support H.265/H.26/VP9 video decoding, up to 4K60FPS

Support H.264/H.265 video encoding, up to 4K30FPS
Picture Support JPG, BMP, PNG and other image formats to browse and support rotation / slideshow / image zoom function
Power adapter Input:AC100-240V.50-60HZ, output: DC12V 3A(Internal positive and external negative)



Basic software specifications:



Operating system Android 11 and above
Basic software functions Web browsing, web chat, email, e-book, resource manager
Sound mode Clock, alarm clock, calculator, recording
Language multi-lingual
recording Support MP3, WMA format recording
Tool Calendar
Alarm Clock
Calculator
Note
Weather + clock
Recording
Word processing EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT
E-book PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2
schedule Calendar
Input Standard Android keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.)
Internet Browser -ChromeLite
GOOGLE Market
Email
Gmail
Google talk
System Management Support OTA remote upgrade, U disk upgrade, SD upgrade (silent installation)
Original Android system with open root access for product customization and development
Customizable local or remote server management system
Support multiple third-party Android remote ad distribution systems
Support multi-channel serial devices, USB devices, IO control devices



Applicaiton Scenarios:
Embedded System Board RK3566 Quad Core Android Board For Self-service Touch Screen Kiosk 2Embedded System Board RK3566 Quad Core Android Board For Self-service Touch Screen Kiosk 3
Embedded System Board RK3566 Quad Core Android Board For Self-service Touch Screen Kiosk 4Embedded System Board RK3566 Quad Core Android Board For Self-service Touch Screen Kiosk 5

Sunchip Office:
Embedded System Board RK3566 Quad Core Android Board For Self-service Touch Screen Kiosk 6
Embedded System Board RK3566 Quad Core Android Board For Self-service Touch Screen Kiosk 7

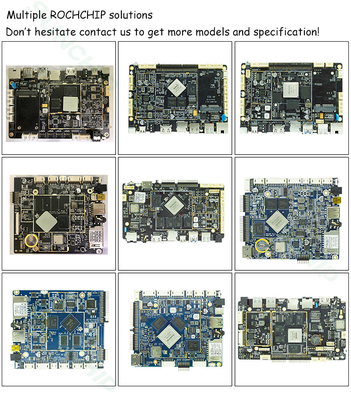

More recommendations of Android Embedded ARM Motherboard from Sunchip:
Embedded System Board RK3566 Quad Core Android Board For Self-service Touch Screen Kiosk 8
