Product Details:
|
| Serial Ports: | UART X3 / GPIO | USB: | USB 3.0 X1, USB OTG X1, USB Host X3 |
|---|---|---|---|
| Power Supply: | DC 12v | Processor: | RK3568 |
| Temperature Range: | -20-60℃ | Display: | LVDS , EDP , MIPI , HD |
| Operating System: | Android 11 | Product Name: | RK3568 Android 11 Embedded System Board |
| CPU: | Rockchip RK3568 Quad-core 64-bit Cortex-A55 | GPU: | GPU Mali-G52 |
| NPU: | 1.0 Tops | Screen Voltage: | Support 3.3V/5V/12V Optional |
| High Light: | RK3568 Android11 Embedded System Board,2.0 GHz Embedded System Board,1.0TOPs NPU RK3568 Board |
||

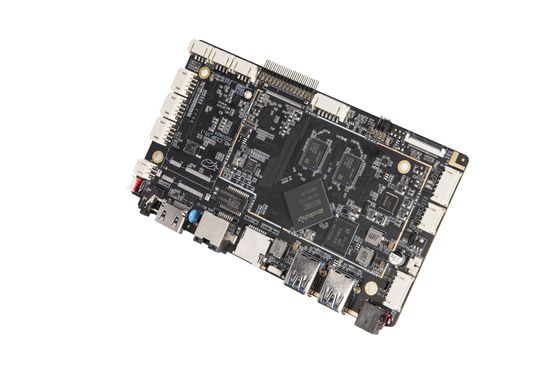

The RK3568 Android 11 Embedded System Board is an advanced Android motherboard. It is powered by a robust RK3568 processor, and offers a range of I/O ports, including USB, GPIO, UART and I2C.
It also offers three UART serial ports and GPIO ports. It is designed to be a reliable and efficient solution for a wide range of applications, and is powered by a DC 12V power supply.
The RK3568 Android 11 Embedded System Board is ideal for a variety of applications, including consumer electronics, automotive, industrial control, medical and other industries. It is highly customizable, and can be tailored to meet specific requirements. It also offers a flexible and efficient platform for development, and is suitable for both novice and experienced users.
The RK3568 Android 11 Embedded System Board is an ideal choice for developers looking for a reliable and powerful platform. It is backed by a strong support network, and offers a wide range of features, making it an ideal choice for any application. This board is the perfect solution for those who need a reliable, powerful and efficient embedded system board.
Basic hardware specifications:
| CPU | Rockchip RK3568 quad-core 64-bit Cortex-A55, GPU Mali-G52 |
| Main frequency | Up to 2.0 GHz |
| RAM | DDR4 2G/4G optional |
| Built-in storage capacity | EMMC 8GB/16G/32G/64G optional (label 16GB) |
|
Display interface
|
LVDS interface (single-channel, 6-bit dual-channel, 8-bit dual-channel). Support maximum resolution 1920x1080, support 7"-84" display |
| MIPI interface | |
| EDP interface | |
| Screen voltage | Support 3.3V/5V/12V optional |
| Touch screen |
Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch). Support USB multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch. |
Internet communication
|
The internet
|
With RJ45 interface, support 10/100/1000M Ethernet. |
| Equipped with Wifi&BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0 |
| Image rotation | Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation, support gravity sensor function |
| Real Time Clock | External real-time clock power supply battery |
|
Interface device
|
Support MIPI interface camera, up to 500W pixels |
| 4 USB HOST, 1 USB OTG (support usb camera@500W usb printer, U disk, mouse, keyboard, standard usb peripherals) | |
| 3 groups of serial ports. Support external serial device module (NFC module, printer, card reader, etc.) | |
| TF card, maximum support 32GB | |
| Class D power amplifier: 3W*2 8 ohms, support microphone | |
| HDMI 2.0 output |
| Audio | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP format |
| Video | Support 4K 60fps H.265/H.264/VP9 video decoding. Support 1080P 100fps H.265/H.264 video encoding. Support 8M ISP, support HDR. |
| Picture |
Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function |
Basic software specifications:
| Operating system | Android 11 system |
| Basic software functions | Web browsing, web chat, email, e-book, resource manager |
| Sound effect mode | Clock, alarm clock, calculator, recording |
| Language support | Multi-lingual |
| Recording | Support MP3, WMA format recording |
|
Tool
|
Calendar |
| Alarm Clock | |
| Calculator | |
| Note | |
| Weather + clock | |
| Recording |
| Word processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
| Ebook | PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 |
| Schedule | Calendar |
| Input | Standard Andriod keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.) |
| System Management | Support OTA remote upgrade, U disk upgrade, SD upgrade (silent installation) |
| Original ecological Android system, open root permission, can carry out product customization development | |
| Customizable local or remote server management system | |
| Support a variety of third-party Android remote advertising systems | |
| Support multiple serial devices, USB devices | |
| Support dual-screen different display |
|
Network
|
Browser -ChromeLite |
| GOOGLE Market | |
| Gmail | |
| Google talk |
■ Commercial advertising display machine
■ POS machine
■ Digital photo frame advertising machine
■ Touch all-in-one machine
■ Self-service vending machine
Sunchip AD-C33P Embedded System Board is designed for various applications and scenarios, such as digital signage, industrial automation and more. It is an Android motherboard with a powerful combination of USB 3.0 X1, USB OTG X1, USB Host X3, USB/GPIO/UART/I2C, Android 11, DC 12v and UART X3/GPIO. It is a perfect choice for those who need a reliable and cost-effective embedded system board.
With its low power consumption and high performance, Sunchip AD-C33P Embedded System Board is capable of providing stable and reliable operation even in extreme environments. Its Android 11 operating system provides users with an intuitive user interface and a large number of features. Its USB/GPIO/UART/I2C ports allow users to easily connect various external devices and peripherals. Furthermore, its DC 12v power supply ensures a reliable and efficient operation.
Sunchip AD-C33P Embedded System Board is an ideal solution for those looking for an affordable and reliable Android motherboard for digital signage, industrial automation and more. It is an excellent choice for those who need a cost-effective embedded system board with high performance and low power consumption.
1. PCBA design
2. Housing design
3. Software and hardware customization
4. Logo print on housing
5. Software customization: Booting image, Boot animation,UI, Launcher, APP, Function
6. Good quality products
7. full after-sales service with technology support
8.100% QC check before shipping
We are committed to providing our customers with the best quality and most cost-effective embedded system board solutions. If you have any other requirements, please feel free to contact us.
We offer a wide range of technical support and services for our embedded system board, including but not limited to:
Our technical support team is available 24/7 and can be contacted via phone, email or online chat. We also offer an online support portal where customers can find support documents, FAQs, tutorials and more.
Packaging and Shipping of Embedded System Board:
About Sunchip :
SUNCHIP is an OEM / ODM factory, customizing products to tailor your needs is our strength and mission, over 130 employees’ team that including over 70 research and development engineers, who can provide services and solutions in electronic Android mainboard design for digital signage industries and domains as it is becoming a critical function in the product development life cycle, diverse categories of embedded systems such as industrial automation, consumer electronics, embedded digital signage devices and exhibition display screen.
We focus on Rockchip chipsets solution and in-depth development, also deep customization of Android OS; Specialized on LCD Digital Signage & Android ARM Board.
Sunchip is a national high-tech enterprise with various patents. Our factory runs under the ISO 9001 & ISO 14001 certification. Our products fully completely with CE, RoHS and FCC certifications.
Sunchip has become the ODM / OEM partner of a number of world-class companies. Our products have been exported to over eighty worldwide countries.We do the best we can consistently to provide excellent quality products and one-stop services for all customers.
We are looking forward to cooperating, developing and growing with you sincerely.
