Product Details:
|
| Size: | 150*85mm | Operating System: | Android 11 |
|---|---|---|---|
| USB: | USB 3.0 X1, USB OTG X1, USB Host X3 | Display: | LVDS , EDP , MIPI , HD |
| Temperature Range: | -20-60℃ | Storage: | EMMC 16GB/32GB Optional |
| Memory: | DDR4 2GB/4GB Optional | Warranty: | 1 Year |
| CPU: | Rockchip RK3568 Quad-core 64-bit Cortex-A55 | GPU: | GPU Mali-G52 |
| NPU: | 1.0 TOPS | Main Frequency: | Up To 2.0 GHz |
| Highlight: | RK3568 Android Motherboard,RK3568 Board for digital signage,150*85mm RK3568 Board |
||
Embedded System Board, based on the latest RK3567 processor, is a high-performance embedded system board specifically designed for digital signage applications.
This board is equipped with a low-power and high performance DDR4 memory that can be configured with up to 4GB, and provides rich I/O ports such as USB, GPIO, UART, and I2C for easy connection to other peripherals. In addition, the board is also integrated with multiple Internet protocols such as Ethernet, Wi-Fi, BT, 3G, and 4G, and supports the Android 11 operating system, and takes power from a DC 12v power supply.
All these features make the Embedded System Board an ideal solution for digital signage applications.

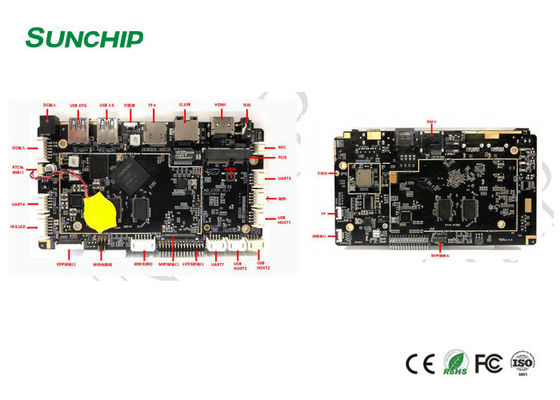

The Sunchip AD-C33P Embedded System Board is designed for various application scenarios, such as digital signage board, edge computing board and 8K video decode board.
It is with a 150*85mm size and powered by the Android 11 operating system. The DDR4 memory can be 2GB or 4GB optional, it also offers USB 3.0 X1, USB OTG X1, USB Host X3 and multiple I/O ports including USB/GPIO/UART/I2C.
The Sunchip AD-C33P Embedded System Board is an ideal solution for digital signage, edge computing, 8K video decoding, and other application requirements.
Brand Name: Sunchip
Model Number: AD-C33P
Place of Origin: China
Internet: Ethernet/Wi-Fi/BT/3G/4G
Operating System: Android 11
Serial ports: UART X3 / GPIO
USB: USB 3.0 X1, USB OTG X1, USB Host X3
Size: 150*85mm
This Sunchip AD-C33P arm board is a powerful RK3588 embedded system board, which supports Android 11 and has Ethernet/Wi-Fi/BT/3G/4G Internet, UART X3 / GPIO serial ports, USB 3.0 X1, USB OTG X1, USB Host X3 and a size of 150*85mm.
| CPU | Rockchip RK3568 quad-core 64-bit Cortex-A55, GPU Mali-G52 |
| Main frequency | Up to 2.0 GHz |
| RAM | DDR4 2G/4G optional |
| Built-in storage capacity | EMMC 8GB/16G/32G/64G optional (label 16GB) |
|
Display interface
|
LVDS interface (single-channel, 6-bit dual-channel, 8-bit dual-channel). Support maximum resolution 1920x1080, support 7"-84" display |
| MIPI interface | |
| EDP interface | |
| Screen voltage | Support 3.3V/5V/12V optional |
| Touch screen |
Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch). Support USB multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch. |
|
The internet
|
With RJ45 interface, support 10/100/1000M Ethernet. |
| Equipped with Wifi&BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0 | |
| Image rotation | Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation, support gravity sensor function |
| Real Time Clock | External real-time clock power supply battery |
|
Interface device
|
Support MIPI interface camera, up to 500W pixels |
| 4 USB HOST, 1 USB OTG (support usb camera@500W usb printer, U disk, mouse, keyboard, standard usb peripherals) | |
| 3 groups of serial ports. Support external serial device module (NFC module, printer, card reader, etc.) | |
| TF card, maximum support 32GB | |
| Class D power amplifier: 3W*2 8 ohms, support microphone | |
| HDMI 2.0 output | |
| Audio | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP format |
| Video | Support 4K 60fps H.265/H.264/VP9 video decoding. Support 1080P 100fps H.265/H.264 video encoding. Support 8M ISP, support HDR. |
| Picture | Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function |
| Power Adapter | Input: AC100-240V.50-60HZ, output: DC12V 3A |
Embedded System Board Technical Support and Services
The Embedded System Board will be packaged in a sturdy cardboard box, and all necessary components will be securely packed inside. The box will be sealed with a tamper-proof tape and labeled with the product information.
The Embedded System Board will be shipped via a reliable courier service. Tracking information and insurance will be provided, and our customer support team will be available to answer any questions or concerns.
About Sunchip :
SUNCHIP is an OEM / ODM factory, customizing products to tailor your needs is our strength and mission, over 130 employees’ team that including over 70 research and development engineers, who can provide services and solutions in electronic Android mainboard design for digital signage industries and domains as it is becoming a critical function in the product development life cycle, diverse categories of embedded systems such as industrial automation, consumer electronics, embedded digital signage devices and exhibition display screen.
We focus on Rockchip chipsets solution and in-depth development, also deep customization of Android OS; Specialized on LCD Digital Signage & Android ARM Board.
Sunchip is a national high-tech enterprise with various patents. Our factory runs under the ISO 9001 & ISO 14001 certification. Our products fully completely with CE, RoHS and FCC certifications.
Sunchip has become the ODM / OEM partner of a number of world-class companies. Our products have been exported to over eighty worldwide countries.We do the best we can consistently to provide excellent quality products and one-stop services for all customers.
We are looking forward to cooperating, developing and growing with you sincerely.
We mainly manufacture
1, Android industrial Embedded board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android media player box for digital signage advertising: RK3399, RK3288, RK3328.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Stretched lcd Display signage, support ODM.
5, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
6, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
7, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
8, Embedded touch desk: such as 32inch.
9, Face recognition temperature detection terminal machine: such as 8inch.
[you can also tell us your requirements, so that we advise you a matched solution]
SUNCHIP: Digital Signage manufacturer in Shenzhen, China.
Our main products include Android ARM Board, Floor Standing Display, Wall Mounted Display, Stretched LCD Display, Open Frame Display and Android Media Player Advertising Box.
Contact: Zoe
Tel: +86 13823275318
Whatsapp:+86 18165515965
Email/Skype: zoe@sunchip-tech.com
Hope to get your kindly advice and let's work together to create something amazing !
