Product Details:
|
| Memory: | DDR4 2GB/4GB Optional | Display: | LVDS , EDP , MIPI , HD |
|---|---|---|---|
| Temperature Range: | -20-60℃ | Internet: | Ethernet/Wi-Fi/BT/3G/4G |
| Size: | 150*85mm | Storage: | EMMC 16GB/32GB Optional |
| Serial Ports: | UART X3 / GPIO | Power Supply: | DC 12v |
| High Light: | RK3568 Arm Board OEM,32GB Optional Embedded System Board,16GB Optional Embedded System Board |
||

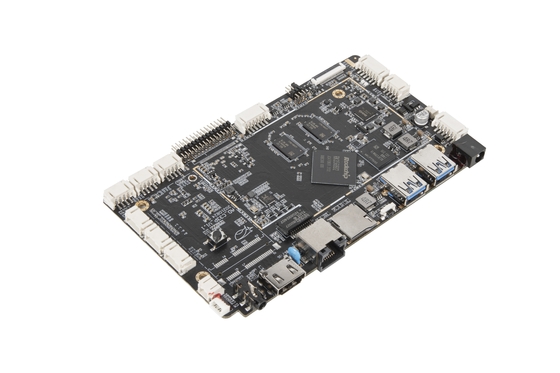

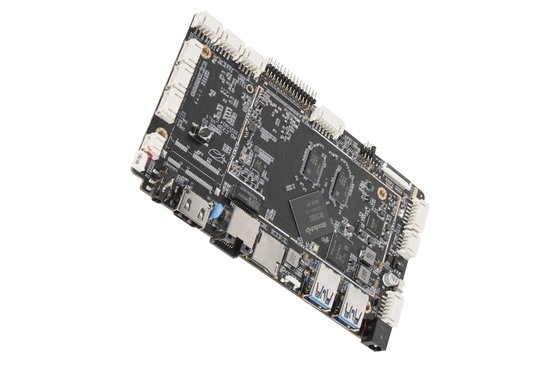

Embedded System Board AD-C33P is a high-end 4K video decode Android motherboard which is a great combination of an embedded board with an advanced RK3568 processor. It is a powerful embedded board with a variety of I/O options, including USB, GPIO, UART and I2C, as well as a DC 12v power supply. This board has a small size of 150*85mm, and offers a reliable 1-year warranty, making it a great choice for embedded system applications. With its superior performance and dependable quality, Embedded System Board is the ideal choice for any embedded system requirements.
The large board of the intelligent industrial all-in-one machine adopts the Rockchip RK3568 quad-core chip solution. Support Android 11 system. Enhanced power management circuit. Support commonly used external devices. Rich interfaces and stable performance. Suitable for intelligent remote network control: equipment such as industrial, medical, large advertising machines, educational video terminals and other equipment.
■ Commercial advertising display machine
■ POS machine
■ Digital photo frame advertising machine
■ Touch all-in-one machine
■ Self-service vending machine
■ AI objective recognition machine
■ IP speaker
■ Access controller
Sunchip AD-C33P is an industrial grade embedded system board, with a size of 150*85mm, powered by a DC 12v power supply. It is equipped with a RK3568 processor, EMMC 16GB/32GB (optional) storage and three UART/GPIO serial ports. It is designed to provide customers with high reliability and performance for their embedded system projects.
The Sunchip AD-C33P embedded system board is ideal for a wide range of applications, such as industrial automation, robotics, machine vision, transportation, and more. It is designed to be highly reliable and stable, with a low power consumption and long-term stability. The board also features multiple I/Os for easy integration and communication.
The Sunchip AD-C33P embedded system board is a perfect choice for any industrial or commercial application. It is a reliable, cost-effective, and powerful solution for your embedded system projects. Whether you need a board for your factory automation, robotics, machine vision, or any other industrial application, the Sunchip AD-C33P embedded system board is the perfect choice.
1. PCBA design
2. Housing design
3. Software and hardware customization
4. Logo print on housing
5. Software customization: Booting image, Boot animation,UI, Launcher, APP, Function
6. Good quality products
7. full after-sales service with technology support
8.100% QC check before shipping
Basic Information:
Brand Name: Sunchip
Model Number: AD-C33P
Place of Origin: China
Size: 150*85mm
USB: USB 3.0 X1, USB OTG X1, USB Host X3
Warranty: 1 Year
Serial ports: UART X3 / GPIO
I/O: USB/GPIO/UART/I2C
The Sunchip AD-C33P is a reliable and powerful Android Arm Board for embedded system applications. It is a great choice for applications such as industrial automation, home automation, digital signage, kiosks, and more. This board features a USB 3.0, USB OTG, USB Host, UART, GPIO, and I2C interface that makes it easy to interface with external hardware. It also comes with a 1-year warranty and a size of 150*85mm. With its robust and reliable performance, the Sunchip AD-C33P is sure to be the perfect choice for your Android arm board needs!

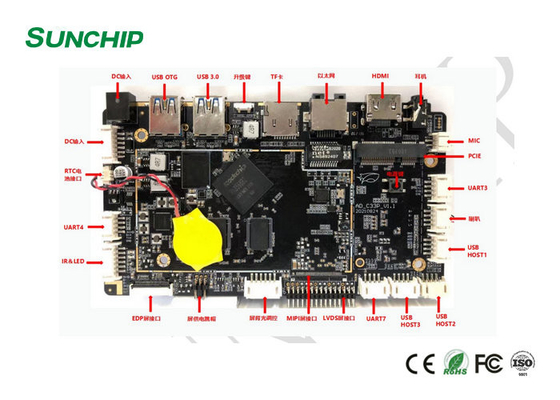

Hardware:
| CPU | Rockchip RK3568 quad-core 64-bit Cortex-A55, GPU Mali-G52 |
| Main frequency | Up to 2.0 GHz |
| RAM | DDR4 2G/4G optional |
| Built-in storage capacity | EMMC 8GB/16G/32G/64G optional (label 16GB) |
|
Display interface
|
LVDS interface (single-channel, 6-bit dual-channel, 8-bit dual-channel). Support maximum resolution 1920x1080, support 7"-84" display |
| MIPI interface | |
| EDP interface | |
| Screen voltage | Support 3.3V/5V/12V optional |
| Touch screen |
Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch). Support USB multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch. |
|
The internet
|
With RJ45 interface, support 10/100/1000M Ethernet. |
| Equipped with Wifi&BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0 | |
| Image rotation | Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation, support gravity sensor function |
| Real Time Clock | External real-time clock power supply battery |
|
Interface device
|
Support MIPI interface camera, up to 500W pixels |
| 4 USB HOST, 1 USB OTG (support usb camera@500W usb printer, U disk, mouse, keyboard, standard usb peripherals) | |
| 3 groups of serial ports. Support external serial device module (NFC module, printer, card reader, etc.) | |
| TF card, maximum support 32GB | |
| Class D power amplifier: 3W*2 8 ohms, support microphone | |
| HDMI 2.0 output | |
| Audio | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP format |
| Video | Support 4K 60fps H.265/H.264/VP9 video decoding. Support 1080P 100fps H.265/H.264 video encoding. Support 8M ISP, support HDR. |
| Picture | Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function |
| Power Adapter | Input: AC100-240V.50-60HZ, output: DC12V 3A |
Software:
| Operating system | Android 11 system |
| Basic software functions | Web browsing, web chat, email, e-book, resource manager |
| Sound effect mode | Clock, alarm clock, calculator, recording |
| Language support | Multi-lingual |
| Recording | Support MP3, WMA format recording |
|
Tool
|
Calendar |
| Alarm Clock | |
| Calculator | |
| Note | |
| Weather + clock | |
| Recording | |
| Word processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
| Ebook | PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 |
| Schedule | Calendar |
| Input | Standard Andriod keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.) |
|
Network
|
Browser -ChromeLite |
| GOOGLE Market | |
| Gmail | |
| Google talk | |
| System Management | Support OTA remote upgrade, U disk upgrade, SD upgrade (silent installation) |
| Original ecological Android system, open root permission, can carry out product customization development | |
| Customizable local or remote server management system | |
| Support a variety of third-party Android remote advertising systems | |
| Support multiple serial devices, USB devices | |
| Support dual-screen different display |
At Embedded System Board, we provide technical support and services to ensure your product is running smoothly. Our team of experienced engineers and technicians are ready to assist with any problems you may have.
We offer a variety of services, including:
We are committed to providing the best customer service possible. If you have any questions or need assistance, please don’t hesitate to contact us.
We use a secure and robust packaging to ensure that your Embedded System Board is safe during shipping. Each board is packaged according to the following standard:
The box is then shipped to you via a reliable and secure shipping method. We recommend that you inspect the package for any damage before opening it.
About Sunchip :
SUNCHIP is an OEM / ODM factory, customizing products to tailor your needs is our strength and mission, over 130 employees’ team that including over 70 research and development engineers, who can provide services and solutions in electronic Android mainboard design for digital signage industries and domains as it is becoming a critical function in the product development life cycle, diverse categories of embedded systems such as industrial automation, consumer electronics, embedded digital signage devices and exhibition display screen.
We focus on Rockchip chipsets solution and in-depth development, also deep customization of Android OS; Specialized on LCD Digital Signage & Android ARM Board.
Sunchip is a national high-tech enterprise with various patents. Our factory runs under the ISO 9001 & ISO 14001 certification. Our products fully completely with CE, RoHS and FCC certifications.
Sunchip has become the ODM / OEM partner of a number of world-class companies. Our products have been exported to over eighty worldwide countries.We do the best we can consistently to provide excellent quality products and one-stop services for all customers.
We are looking forward to cooperating, developing and growing with you sincerely.
We mainly manufacture
1, Android industrial Embedded board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android media player box for digital signage advertising: RK3399, RK3288, RK3328.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Stretched lcd Display signage, support ODM.
5, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
6, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
7, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
8, Embedded touch desk: such as 32inch.
9, Face recognition temperature detection terminal machine: such as 8inch.
[you can also tell us your requirements, so that we advise you a matched solution]
A1:The Embedded System Board - Sunchip AD-C33P is made in China.
A2:The Embedded System Board - Sunchip AD-C33P consumes about 10W of power.
A3:The Embedded System Board - Sunchip AD-C33P supports DDR3 RAM with a capacity of up to 4GB.
A4:Yes, the Embedded System Board - Sunchip AD-C33P provides an audio interface.
A5:The Embedded System Board - Sunchip AD-C33P is 150mm x 85mm.
