Product Details:
|
| Size: | 150*85mm | Power Supply: | DC 12v |
|---|---|---|---|
| Internet: | Ethernet/Wi-Fi/BT/3G/4G | Product Name: | RK3568 Android 11 Embedded System Board |
| Display: | LVDS , EDP , MIPI , HD | Temperature Range: | -20-60℃ |
| USB: | USB 3.0 X1, USB OTG X1, USB Host X3 | Processor: | RK3568 |
| High Light: | Android 11 OS Embedded System Board,LVDS RK3568 Board,RK3568 Board for Embedded Applications |
||

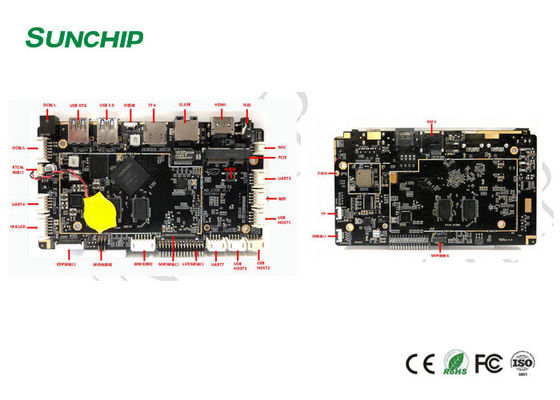

The Embedded System Board AD-C33P is a powerful edge computing board that can be used for 4K video devode. It is equipped with the latest Android 11 operating system, providing support for USB/GPIO/UART/I2C. You can also access the internet through Ethernet/Wi-Fi/BT/3G/4G. It is also equipped with USB 3.0 X1, USB OTG X1, USB Host X3, LVDS, EDP, MIPI and HD display. The board is designed for high performance computing and is ideal for all kinds of edge computing applications. With its advanced features, the Embedded System Board is the perfect solution for all your edge computing needs.
| CPU | Rockchip RK3568 quad-core 64-bit Cortex-A55, GPU Mali-G52 |
| Main frequency | Up to 2.0 GHz |
| RAM | DDR4 2G/4G optional |
| Built-in storage capacity | EMMC 8GB/16G/32G/64G optional (label 16GB) |
| CPU | Rockchip RK3568 quad-core 64-bit Cortex-A55, GPU Mali-G52 |
| Main frequency | Up to 2.0 GHz |
| RAM | DDR4 2G/4G optional |
| Built-in storage capacity | EMMC 8GB/16G/32G/64G optional (label 16GB) |
|
The internet
|
With RJ45 interface, support 10/100/1000M Ethernet. |
| Equipped with Wifi&BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0 | |
| Image rotation | Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation, support gravity sensor function |
| Real Time Clock | External real-time clock power supply battery |
|
Interface device
|
Support MIPI interface camera, up to 500W pixels |
| 4 USB HOST, 1 USB OTG (support usb camera@500W usb printer, U disk, mouse, keyboard, standard usb peripherals) | |
| 3 groups of serial ports. Support external serial device module (NFC module, printer, card reader, etc.) | |
| TF card, maximum support 32GB | |
| Class D power amplifier: 3W*2 8 ohms, support microphone | |
| HDMI 2.0 output |
Sunchip AD-C33P is an embedded board with a RK3568 processor. It is designed for the purpose of digital signage and is manufactured by Sunchip. It is temperature-resistant and has a wide operating range of -20-60℃. The Sunchip AD-C33P embedded board is equipped with EMMC 16GB/32GB optional storage, USB 3.0 X1, USB OTG X1, USB Host X3. It offers a 1-year warranty and is the perfect choice for digital signage applications.
The large board of the intelligent industrial all-in-one machine adopts the Rockchip RK3568 quad-core chip solution. Support Android 11 system. Enhanced power management circuit. Support commonly used external devices. Rich interfaces and stable performance. Suitable for intelligent remote network control: equipment such as industrial, medical, large advertising machines, educational video terminals and other equipment.
Sunchip AD-C33P is an advanced embedded edge computing board designed for media players, Android motherboards and other applications. Its features include a temperature range of -20-60℃, a LVDS/EDP/MIPI/HD display, USB/GPIO/UART/I2C I/O, and a size of 150*85mm. All Sunchip AD-C33P boards come with a 1 year warranty and are made in China.
It provides an ideal solution for edge computing applications, such as media players, Android motherboards, and other embedded systems. With its reliable performance and long-term support, Sunchip AD-C33P is the perfect choice for any embedded system application.
New customization:
1. PCBA design
2. Housing design
3. Software and hardware customization
4. Logo print on housing
5. Software customization: Booting image, Boot animation,UI, Launcher, APP, Function
6. Good quality products
7. full after-sales service with technology support
8.100% QC check before shipping
Welcome to our Technical Support and Services for Embedded System Board. We strive to provide excellent customer service and technical support.
Our technical support team is available to answer your questions about our products. We offer a wide range of technical support services, including:
We provide a limited warranty on all our products. We also offer maintenance and repair services for our products.
For more information about our Technical Support and Services for Embedded System Board, please contact our customer support team at zoe@sunchip-tech.com or call us at (0086) 13823275318.
Packaging and Shipping of Embedded System Board:
The embedded system board will be securely packaged in a sturdy cardboard box, filled with foam to ensure safe transportation. The box should have a waterproof seal and also have a warning label indicating that the contents are fragile. The box should also have a clear plastic window in the front to allow customers to inspect the contents without opening the box. All boxes will be shipped with tracking information and insurance for the full value of the product.
About Sunchip :
SUNCHIP is an OEM / ODM factory, customizing products to tailor your needs is our strength and mission, over 130 employees’ team that including over 70 research and development engineers, who can provide services and solutions in electronic Android mainboard design for digital signage industries and domains as it is becoming a critical function in the product development life cycle, diverse categories of embedded systems such as industrial automation, consumer electronics, embedded digital signage devices and exhibition display screen.
We focus on Rockchip chipsets solution and in-depth development, also deep customization of Android OS; Specialized on LCD Digital Signage & Android ARM Board.
Sunchip is a national high-tech enterprise with various patents. Our factory runs under the ISO 9001 & ISO 14001 certification. Our products fully completely with CE, RoHS and FCC certifications.
Sunchip has become the ODM / OEM partner of a number of world-class companies. Our products have been exported to over eighty worldwide countries.We do the best we can consistently to provide excellent quality products and one-stop services for all customers.
We are looking forward to cooperating, developing and growing with you sincerely.
We mainly manufacture
1, Android industrial Embedded board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android media player box for digital signage advertising: RK3399, RK3288, RK3328.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Stretched lcd Display signage, support ODM.
5, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
6, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
7, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
8, Embedded touch desk: such as 32inch.
9, Face recognition temperature detection terminal machine: such as 8inch.
[you can also tell us your requirements, so that we advise you a matched solution]
