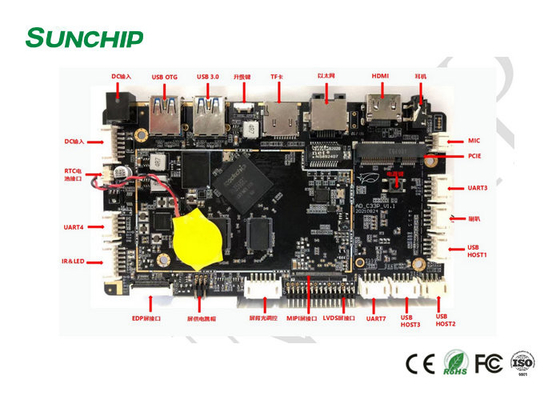

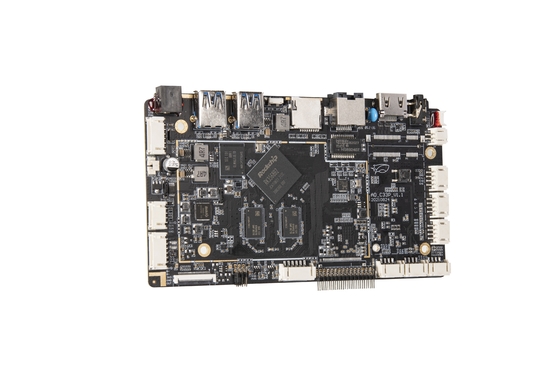

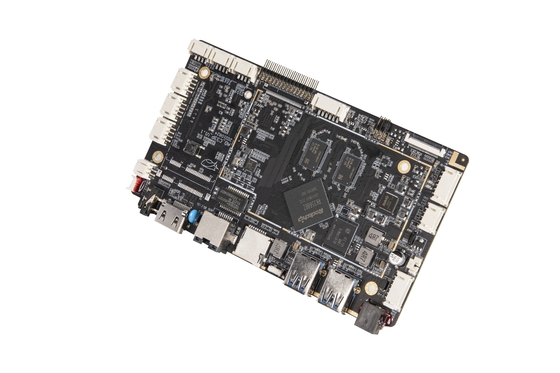

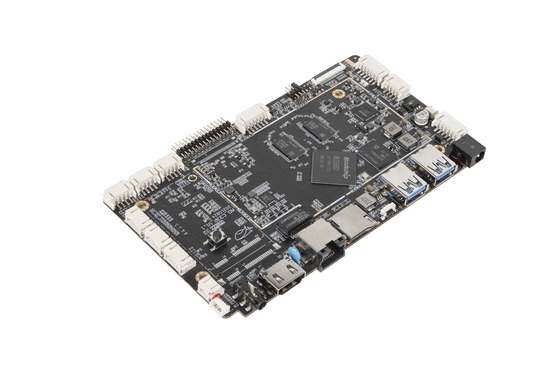

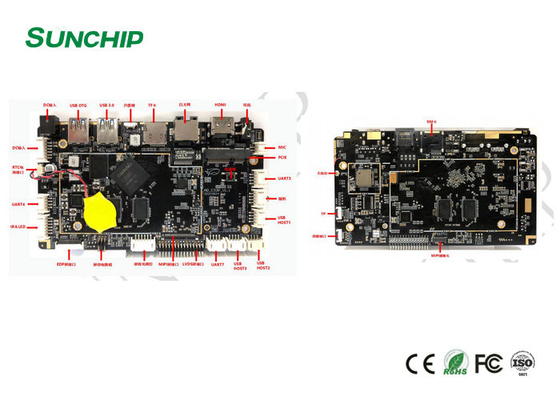

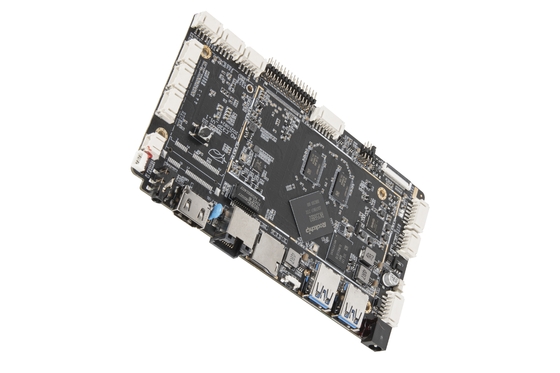

Reliable RK3568 Android Motherboard Supproting USB/GPIO/UART/I2C Ethernet/Wi-Fi/BT/3G/4G

Reliable RK3568 Android Motherboard Supproting USB/GPIO/UART/I2C Ethernet/Wi-Fi/BT/3G/4G
Reliable RK3568 Android Motherboard Supproting USB/GPIO/UART/I2C Ethernet/Wi-Fi/BT/3G/4G
Reliable RK3568 Android Motherboard Supproting USB/GPIO/UART/I2C Ethernet/Wi-Fi/BT/3G/4G Reliable RK3568 Android Motherboard Supproting USB/GPIO/UART/I2C Ethernet/Wi-Fi/BT/3G/4G Reliable RK3568 Android Motherboard Supproting USB/GPIO/UART/I2C Ethernet/Wi-Fi/BT/3G/4G Reliable RK3568 Android Motherboard Supproting USB/GPIO/UART/I2C Ethernet/Wi-Fi/BT/3G/4G Reliable RK3568 Android Motherboard Supproting USB/GPIO/UART/I2C Ethernet/Wi-Fi/BT/3G/4G Reliable RK3568 Android Motherboard Supproting USB/GPIO/UART/I2C Ethernet/Wi-Fi/BT/3G/4G Reliable RK3568 Android Motherboard Supproting USB/GPIO/UART/I2C Ethernet/Wi-Fi/BT/3G/4G Reliable RK3568 Android Motherboard Supproting USB/GPIO/UART/I2C Ethernet/Wi-Fi/BT/3G/4G

Large Image :  Reliable RK3568 Android Motherboard Supproting USB/GPIO/UART/I2C Ethernet/Wi-Fi/BT/3G/4G

Product Details:
Place of Origin: China
Brand Name: Sunchip
Certification: CE, ROHS, FCC, ISO9001, ISO 14001 ,ISO27001
Model Number: AD-C33P
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: 40pcs - 60pcs Anti-static bag / Carton box
Delivery Time: 1-5 working days
Supply Ability: 60000PCS/Month

Reliable RK3568 Android Motherboard Supproting USB/GPIO/UART/I2C Ethernet/Wi-Fi/BT/3G/4G

Description
Size: 150*85mm Serial Ports: UART X3 / GPIO
Processor: RK3568 DDR: 2/4GB Optional
Warranty: 1 Year USB: USB 3.0 X1, USB OTG X1, USB Host X3
Power Supply: DC 12v Display: LVDS , EDP , MIPI , HD
OS: Android 11 EMMC: 16/32GB Optional
High Light:

CE RK3568 Android Motherboard

,

Ethernet Wi-Fi RK3568 Board

,

3G 4G RK3568 Board

Product Description:

Embedded System Board:
An Embedded System Board, powered by a Rockchip RK3568 processor, is an Android ARM Board designed to meet the challenges of modern embedded system applications. It provides users with Ethernet, Wi-Fi, Bluetooth, 3G, 4G connectivity, as well as USB 3.0, USB OTG, and USB Host ports.

It has 3 UARTs and GPIOs, and is capable of operating in temperatures ranging from -20 to 60℃. This embedded board is perfect for a wide range of embedded system applications, including industrial automation, medical equipment, POS systems, digital signage, and more.





Basic hardware specifications:



CPU Rockchip RK3568 quad-core 64-bit Cortex-A55, GPU Mali-G52
Main frequency Up to 2.0 GHz
RAM DDR4 2G/4G optional
Built-in storage capacity EMMC 8GB/16G/32G/64G optional (label 16GB)

Display interface





LVDS interface (single-channel, 6-bit dual-channel, 8-bit dual-channel). Support maximum resolution 1920x1080, support 7"-84" display
MIPI interface
EDP interface
Screen voltage Support 3.3V/5V/12V optional
Touch screen

Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch).

Support USB multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch.

The internet



With RJ45 interface, support 10/100/1000M Ethernet.
Equipped with Wifi&BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0
Image rotation Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation, support gravity sensor function
Real Time Clock External real-time clock power supply battery





Interface device







Support MIPI interface camera, up to 500W pixels
4 USB HOST, 1 USB OTG (support usb camera@500W usb printer, U disk, mouse, keyboard, standard usb peripherals)
3 groups of serial ports. Support external serial device module (NFC module, printer, card reader, etc.)
TF card, maximum support 32GB
Class D power amplifier: 3W*2 8 ohms, support microphone
HDMI 2.0 output
Audio MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP format
Video Support 4K 60fps H.265/H.264/VP9 video decoding. Support 1080P 100fps H.265/H.264 video encoding. Support 8M ISP, support HDR.
Picture Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function
Power Adapter Input: AC100-240V.50-60HZ, output: DC12V 3A



Basic software specifications:



Operating system Android 11 system
Basic software functions Web browsing, web chat, email, e-book, resource manager
Sound effect mode Clock, alarm clock, calculator, recording
Language support Multi-lingual
Recording Support MP3, WMA format recording





Tool







Calendar
Alarm Clock
Calculator
Note
Weather + clock
Recording
Word processing EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT
Ebook PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2
Schedule Calendar
Input Standard Andriod keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.)



Network





Browser -ChromeLite
GOOGLE Market
Email
Gmail
Google talk
System Management Support OTA remote upgrade, U disk upgrade, SD upgrade (silent installation)
Original ecological Android system, open root permission, can carry out product customization development
Customizable local or remote server management system
Support a variety of third-party Android remote advertising systems
Support multiple serial devices, USB devices
Support dual-screen different display


Applications:

Sunchip's Model AD-C33P RK3568 Android 11 Embedded System Board is a powerful 4K video decode ARM board with industrial grade components suitable for various applications. It comes with a 1-year warranty and the option of EMMC 16GB/32GB storage. This embedded system board is capable of displaying LVDS, EDP, MIPI, and HD with its various I/O including USB/GPIO/UART/I2C. It is ideal for any industrial environment that requires a reliable, high-performance embedded board for real-time data acquisition and control.



This embedded system board is designed for industrial grade applications that require reliable and cost-effective solutions. It is also suitable for applications that require high-performance computing for 8K video decode. With its wide range of I/O, it can easily be integrated into a variety of industrial applications. Furthermore, the board supports various display modes such as LVDS, EDP, MIPI, and HD.



The Sunchip Model AD-C33P RK3568 Android 11 Embedded System Board is the perfect choice for industrial grade applications. It is designed to provide reliable and cost-effective solutions for 8K video decode and real-time data acquisition and control. With its wide range of I/O, it can easily be integrated into a variety of industrial applications. Moreover, it comes with a 1-year warranty and the option of EMMC 16GB/32GB storage.





Customization:

1, Android industrial Embedded board: RK3588, RK3566, RK3568, RK3288, RK3399,

RK3328, RKPX30, RK3188, RK3128 etc.

2, 【4K】Android media player box for digital signage advertising: RK3399, RK3288, RK3328.

3, 【8K】Android Player Box for Industrial-Control Application: RK3588.

4, Stretched lcd Display signage, support ODM.

5, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.

6, SKD Kit: Android board + LCD panel with touch or not:

7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.

7, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.

8, Embedded touch desk: such as 32inch.

9, Face recognition temperature detection terminal machine: such as 8inch.



[you can also tell us your requirements, so that we advise you a matched solution]



Sunchip AD-C33P Embedded System Board

  • Brand Name: Sunchip
  • Model Number: AD-C33P
  • Place of Origin: China
  • I/O: USB/GPIO/UART/I2C
  • Operating System: Android 11
  • Processor: RK3568
  • USB: USB 3.0 X1, USB OTG X1, USB Host X3
  • Storage: EMMC 16GB/32GB Optional
  • Highlights: 4K video decode, industrial board.Reliable RK3568 Android Motherboard Supproting USB/GPIO/UART/I2C Ethernet/Wi-Fi/BT/3G/4G 0Reliable RK3568 Android Motherboard Supproting USB/GPIO/UART/I2C Ethernet/Wi-Fi/BT/3G/4G 1

    Reliable RK3568 Android Motherboard Supproting USB/GPIO/UART/I2C Ethernet/Wi-Fi/BT/3G/4G 2Reliable RK3568 Android Motherboard Supproting USB/GPIO/UART/I2C Ethernet/Wi-Fi/BT/3G/4G 3









    About Sunchip :



    SUNCHIP is an OEM / ODM factory, customizing products to tailor your needs is our strength and mission, over 130 employees’ team that including over 70 research and development engineers, who can provide services and solutions in electronic Android mainboard design for digital signage industries and domains as it is becoming a critical function in the product development life cycle, diverse categories of embedded systems such as industrial automation, consumer electronics, embedded digital signage devices and exhibition display screen.





    We focus on Rockchip chipsets solution and in-depth development, also deep customization of Android OS; Specialized on LCD Digital Signage & Android ARM Board.





    Sunchip is a national high-tech enterprise with various patents. Our factory runs under the ISO 9001 & ISO 14001 certification. Our products fully completely with CE, RoHS and FCC certifications.



    Sunchip has become the ODM / OEM partner of a number of world-class companies. Our products have been exported to over eighty worldwide countries.We do the best we can consistently to provide excellent quality products and one-stop services for all customers.

    We are looking forward to cooperating, developing and growing with you sincerely.





    Reliable RK3568 Android Motherboard Supproting USB/GPIO/UART/I2C Ethernet/Wi-Fi/BT/3G/4G 4



Support and Services:

Reliable RK3568 Android Motherboard Supproting USB/GPIO/UART/I2C Ethernet/Wi-Fi/BT/3G/4G 5

Embedded System Board provides technical support and service to ensure that all of our customers have the best experience possible.

We offer technical support through our online support portal which includes a knowledge base of solutions to common problems, online chat, and email support. We also offer phone support if necessary.

For service, we offer a variety of options to fit the needs of each customer. We offer on-site service, remote service, and in-house service for our customers.

We are committed to providing the best technical support and service to our customers and we strive to ensure that all customers are satisfied with their Embedded System Board purchase.



Packing and Shipping:

Packaging and Shipping for an Embedded System Board

The embedded system board will be securely packaged in a box and shipped with a tracking number. All components of the embedded system board will be firmly secured to prevent any damage during transport. An inventory list of all items included in the package will be included in the box. The box will be clearly labeled with the destination address and a return address.

In order to ensure the safety of the embedded system board, the package will be shipped with a protective layer of bubble wrap. The bubble wrap will be taped to the box securely to prevent any movement of the components during transit. A packing slip will be included in the box, as well as any other necessary documents.

The package will be shipped using a reliable service, such as FedEx or UPS. The tracking number will be included in the package, and the customer will be notified of the shipment details. The package will arrive at its destination within the specified time frame.



FAQ:



  • 1) Q: Is SUNCHIP a factory or simply a trading company?

    A: We are a TRUE OEM/ODM factory. Please read our COMPANY PROFILE, for more information on this issue.



    2) Q: What payment methods are available to me?

    A: We accept most of the payment methods: accept VISA, Pay Later,T/T,Western Union,Paypal and Cash.



    3) Q: How long is the warranty time?

    A: 1 Year.



    4) Q: What are the shipment terms and delivery times of your company?

    A: Delivery / production time is directly affected by the size of the order. Also depending in which season you are shipping.



    5) Q: Do you give any discounts ?

    A: Prices are directly affected by the quantity. We have many ways to help our partners when starting the sample processes. Make sure to ask our sales on how we can make you save some charges.



    6) Q: I would like to add my company logo on your products, is this possible?

    A: SURE.We customize on a regular basis products for many large retaillers and brands. If your order is at the below 10 units, we can consider this as a SAMPLE order, some fees might apply for the logo prints.

    Different methodes are used for logos, please ask our sales for more information on this issue, we will surely find the right solution for you!





Hope to get your kindly advice and let's work together to create something amazing !
