Product Details:
|
| CPU: | Rockchip RK-PX30 Quad-core Cortex-A35 | GPU: | Mali-G31 MP2 |
|---|---|---|---|
| Frequency:: | 1.5GHz | Operating System: | Android 8.0 |
| Chipset Manufacturer:: | Rockchip | EMMC: | 8GB/16G/32G/64G Optional |
| Screen Interfaces: | LVDS, EDP, MIPI | Working Temperature: | -10°C ~ 60°C |
| Working Humidity: | 5% ~ 95% | Warranty: | 1 Year |
| High Light: | RK PX30 Embedded System Mainboard,Android8.0 Embedded System Mainboard,RJ45 Ethernet Gravity Sensing Board |
||
Quad-Core RK-PX30 Android 8.0 Embedded System Mainboard EDP LVDS MIPI RJ45 Ethernet Gravity Sensing Board
Sunchip is one of Apple's provider.We have provided advertising screen to Apple.
We are professional manufacturer and designer of LCD digital signage and Android board which was established in 2012,
we have more than 80 engineers focus on Android mainboard's software and hardware R & D, commercial media player/box(support Android and Linux OS), also provide SKD parts for LCD digital signage.

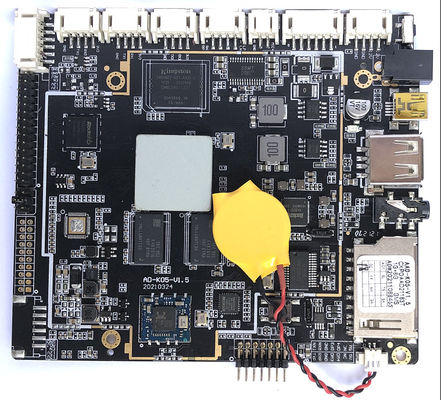

Quad-core RK-PX30 Android decoding driver all-in-one board
Model: AD-K05 V1.5
Product Overview:
Intelligent industrial all-in-one board with Rockchip RK-PX30 quad-core chip solution, supporting Android 8.0 system. Powerful computing capability. Rich interface, enhanced power management circuit. Suitable for intelligent remote network control: class industrial, medical, large advertising machines, educational video terminals and other equipment.
Feature:
Basic hardware specifications:
| CPU | Rockchip RK-PX30 Quad-core Cortex-A35 Mali-G31 MP2 GPU |
| Frequency | 1.5GHz |
| RAM | DDR3 1G/2G optional |
| EMMC | 8GB/16G/32G/64G optional |
| Screen interfaces | LVDS interface (single, 6-bit dual, 8-bit dual) Support maximum resolution 1920x1080, support 7"-84" display |
| EDP interface | |
| MIPI interface | |
| Screen voltage | 3.3V/5V/12V optional |
| Touch screen |
Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch) Support USB multi-point infrared touch, multi-point acoustic touch, multi-point optical touch. |
| Network | With RJ45 port, support 10/100 Ethernet. |
| Wifi&BT module with Wi-Fi 802.11b/g/n/protocol support. Support BT4.0 (optional WIFI 802.11 a/b/g/n/ac 5G&2.4G) | |
| Image rotation | Support 0 degrees, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, support gravity sensing function |
| Real Time Clock | External real time clock powered battery |
| Interface Devices | Support MIPI interface camera, up to 500W pixels |
| 3 USB HOST, 1 USB OTG (supports usb camera @ 500W usb printer, USB stick, mouse, keyboard standard usb peripherals) | |
| 3 groups of serial ports. Support external serial device modules (3G module, NFC module, printer, card swiper, etc.) | |
| Support SD card, up to 32GB | |
| Class D amplifier: 5W*2 8 ohms, microphone support | |
| Audio | MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP |
| Video | Multi-format 1080P 60fps video decoding (H.265,H.264,VC-1, MPEG-1/2/4, VP8), 1080P video encoding, support H.264,VP8 |
| Picture | Support JPG, BMP, PNG and other image formats to browse and support rotation / slideshow / picture zoom function |
| Power adapter | Input:AC100-240V.50-60HZ, Output: DC12V /3A |
Basic software specifications:
| Operating System | Android 8.0 |
| Basic Software Features | Web browsing, Web Chat, e-mail, e-books, resource management |
| Sound Mode | Clock, alarm clock, calculator, recording |
| Language | Multilingual |
| Recording | Support MP3, WMA format recording |
| Tool | Calendar |
| Alarm Clock | |
| Calculator | |
| Note | |
| Weather+clock | |
| Recording | |
| File processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
| E-book | PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 |
| Schedule | Calendar |
| Input | Standard Andriod keyboard with optional third-party input methods (Chinese, Korean, Japanese, etc.) |
| Internet | Browser -ChromeLite |
| GOOGLE Market | |
| Gmail | |
| Google talk | |
| System Management | APK installer |
| Original Android system with open root access for product customization and development | |
| Real-time remote monitoring, system crash self-recovery, 7*24 hours unattended | |
| System setting | |
| Google Maps | |
| Global time | |
| Support OTA remote upgrade |
Application Field
■ Commercial advertising display machine
■ POS machine
■ Digital photo frame advertising machine
■ Touch all-in-one machine
■ Self-service vending machine
Service:
1. PCBA design
2. Housing design
3. Software and hardware customization
4. Logo print on housing
5. Software customization: Booting image, Boot animation,UI, Launcher, APP, Function
6. Good quality products
7. full after-sales service with technology support
8.100% QC check before shipping
SUNCHIP is an OEM / ODM factory, customizing products to tailor your needs is our strength and mission, over 130 employees’ team that including over 70 research and development engineers, who can provide services and solutions in electronic Android mainboard design for digital signage industries and domains as it is becoming a critical function in the product development life cycle, diverse categories of embedded systems such as industrial automation, consumer electronics, embedded digital signage devices and exhibition display screen.
We focus on Rockchip chipsets solution and in-depth development, also deep customization of Android OS; Specialized on LCD Digital Signage & Android ARM Board.
Sunchip is a national high-tech enterprise with various patents. Our factory runs under the ISO 9001 & ISO 14001 certification. Our products fully completely with CE, RoHS and FCC certifications.
Sunchip has become the ODM / OEM partner of a number of world-class companies. Our products have been exported to over eighty worldwide countries.We do the best we can consistently to provide excellent quality products and one-stop services for all customers.
We are looking forward to cooperating, developing and growing with you sincerely.
We mainly manufacture
1, Android industrial Embedded board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android media player box for digital signage advertising: RK3399, RK3288, RK3328.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Stretched lcd Display signage, support ODM.
5, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
6, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
7, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
8, Embedded touch desk: such as 32inch.
9, Face recognition temperature detection terminal machine: such as 8inch.
[you can also tell us your requirements, so that we advise you a matched solution]
