Product Details:
|
| CPU Solution: | RK3568 Quad-Core | OS: | ANDROID 11 |
|---|---|---|---|
| DDR/EMMC: | 2GB RAM/16GB ROM | Display Interface: | LVDS/EDP/MIPI/HD OUT For Display |
| Serial Port: | 3*Serial Port (UART3, UART4, UART7) | WIFI/BT: | 2.4G WIFI & BT 4.0 |
| Ethernet: | 10/100/1000M Ethernet | Function: | WIFI, BT, Wlan, Audio, Speaker,etc. |
| High Light: | 4K LVDS Embedded System Board,Vending Machine Android ARM Board,LVDS RK3568 Android ARM Board |
||

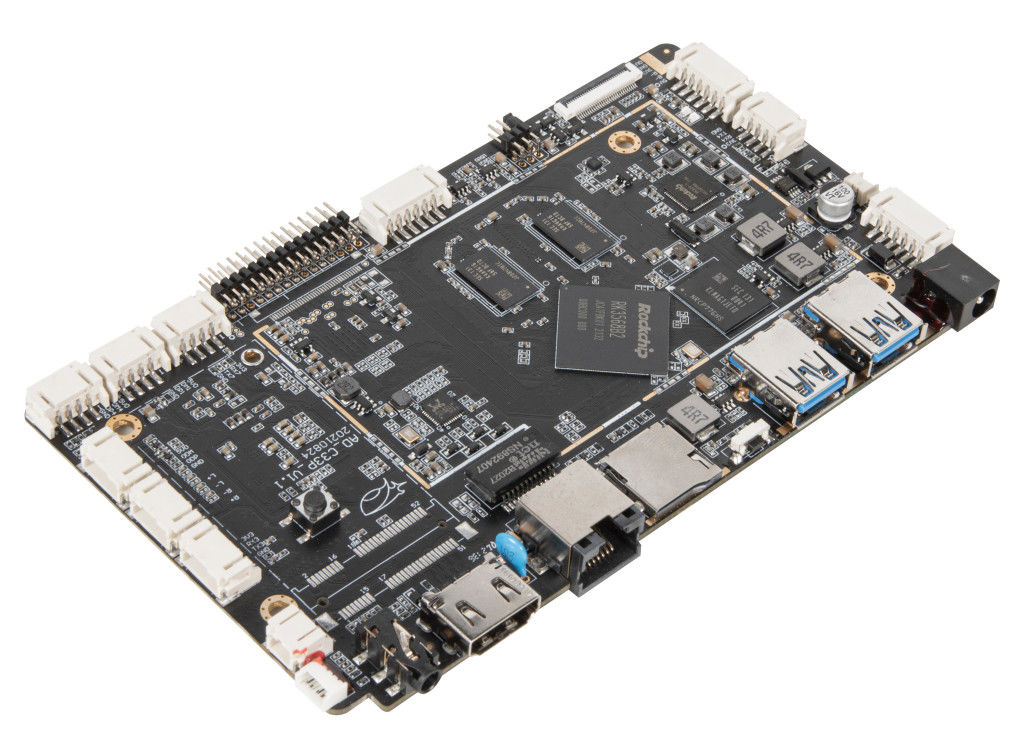

Vending Machine Embedded System Board RK3568 Android ARM Board 4K LVDS Android 11
Quad-core RK3568 Android Decoding Driver Integrated Board Specification(Model No.:AD-C33P-V1.1)
Application Field
1. Commercial advertising display machine
2. POS machine
3. Digital photo frame advertising machine
4. Touch all-in-one machine
5. Self-service vending machine
| CPU | Rockchip RK3568 quad-core 64-bit Cortex-A55, GPU Mali-G52 |
| Main frequency | Up to 2.0 GHz |
| RAM | DDR4 2G/4G optional |
| Built-in storage capacity | EMMC 8GB/16G/32G/64G optional (label 16GB) |
|
Display interface
|
LVDS interface (single-channel, 6-bit dual-channel, 8-bit dual-channel). Support maximum resolution 1920x1080, support 7"-84" display |
| MIPI interface | |
| EDP interface | |
| Screen voltage | Support 3.3V/5V/12V optional |
| Touch screen |
Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch). Support USB multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch. |
|
The internet
|
With RJ45 interface, support 10/100/1000M Ethernet. |
| Equipped with WIFI &BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0 | |
| Image rotation | Support 0-degree, 90-degree, 180-degree, 270-degree manual/auto rotation, support gravity sensor function |
| Real Time Clock | External real-time clock power supply battery |
|
Interface device
|
Support MIPI interface camera, up to 500W pixels |
| 4 USB HOST, 1 USB OTG (support usb camera@500W usb printer, U disk, mouse, keyboard, standard usb peripherals) | |
| 3 groups of serial ports. Support external serial device module (NFC module, printer, card reader, etc.) | |
| TF card, maximum support 32GB | |
| Class D power amplifier: 3W*2 8 ohms, support microphone | |
| HD 2.0 output | |
| Audio | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP format |
| Video | Support 4K 60fps H.265/H.264/VP9 video decoding. Support 1080P 100fps H.265/H.264 video encoding. Support 8M ISP, support HDR. |
| Picture | Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function |
| Power Adapter | Input: AC100-240V.50-60HZ, output: DC12V 3A |
Basic software specifications:
| Operating system | Android 11 system |
| Basic software functions | Web browsing, web chat, email, e-book, resource manager |
| Sound effect mode | Clock, alarm clock, calculator, recording |
| Language support | Multi-lingual |
| Recording | Support MP3, WMA format recording |
|
Tool
|
Calendar |
| Alarm Clock | |
| Calculator | |
| Note | |
| Weather + clock | |
| Recording | |
| Word processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
| E-book | PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 |
| Schedule | Calendar |
| Input | Standard Android keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.) |
|
Network
|
Browser -Chrome Lite |
| GOOGLE Market | |
| Gmail | |
| Google talk | |
| System Management | Support OTA remote upgrade, U disk upgrade, SD upgrade (silent installation) |
| Original ecological Android system, open root permission, can carry out product customization development | |
| Customizable local or remote server management system | |
| Support a variety of third-party Android remote advertising systems | |
| Support multiple serial devices, USB devices | |
| Support dual-screen different display |
Rockchip RK3568 Solution: ANDROID 11 OS,
2GB RAM/16GB ROM, Only Main board (no Sub small board).
Quad-Core, LVDS/EDP/MIPI/HD OUT for display, 3*Serial Port (UART3, UART4, UART7),
2.4G WIFI & Bluetooth 4.0, 10/100/1000M Ethernet, Support 4G LTE MINI PCIE, 1*USB 3.0,
1*USB OTG, 3*4PIN USB, 12V/3A.
Support rotation by manually or automatically; RTC; Support touch;
