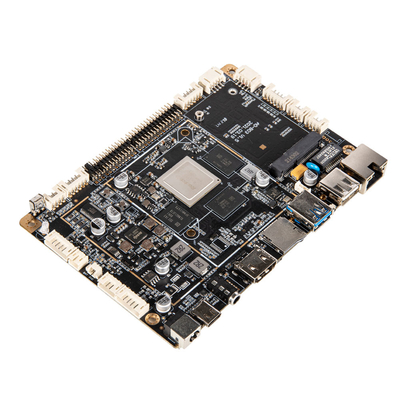

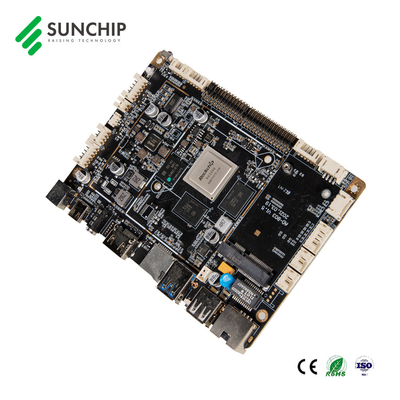

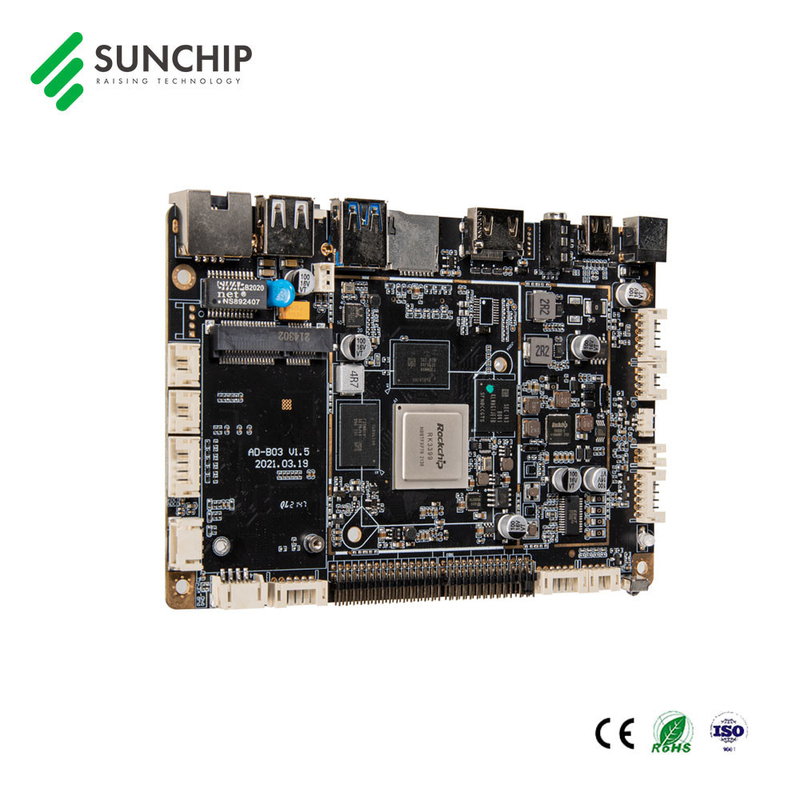

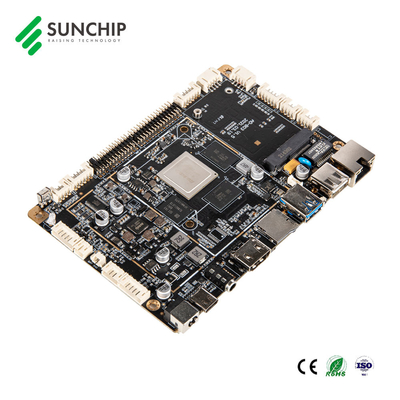

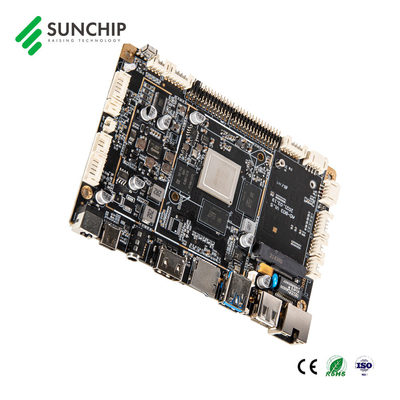

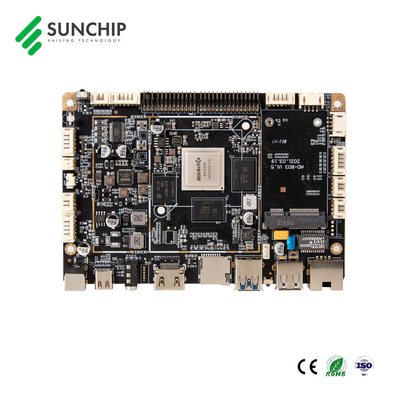

High Performance ARM Embedded Rk3399 Main Board Support PCBA Hardware Customization

High Performance ARM Embedded Rk3399 Main Board Support PCBA Hardware Customization
High Performance ARM Embedded Rk3399 Main Board Support PCBA Hardware Customization High Performance ARM Embedded Rk3399 Main Board Support PCBA Hardware Customization High Performance ARM Embedded Rk3399 Main Board Support PCBA Hardware Customization High Performance ARM Embedded Rk3399 Main Board Support PCBA Hardware Customization High Performance ARM Embedded Rk3399 Main Board Support PCBA Hardware Customization High Performance ARM Embedded Rk3399 Main Board Support PCBA Hardware Customization

Large Image :  High Performance ARM Embedded Rk3399 Main Board Support PCBA Hardware Customization

Product Details:
Place of Origin: China
Brand Name: ADW
Certification: ISO9001, ISO4001, ISO27001
Model Number: AD-B03
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: USD70~100/pc
Packaging Details: 1pc/bubble bag, proper qty in a carton
Delivery Time: 1~3 days if have stock, 30days if no stock
Payment Terms: T/T, Western Union
Supply Ability: 1,000,000pcs per month

High Performance ARM Embedded Rk3399 Main Board Support PCBA Hardware Customization

Description
CPU: Rockchip RK3399, Dual Core Cortex-A72+ Quad Core Cortex-A53 CPU GPU: ARM Mali-T860MP4 GPU
RAM: LPDDR4 4G Built-in Storage Capacity: EMMC 8GB/16G/32G/64G Optional (Default 16GB)
Display Interface: LVDS, EDP, 1080P Screen Voltage: Support 3.3V/5V/12V Optional
Network: With WIFI & BT Module, Support Wi-Fi 802.11a / B / G / N / Ac Protocol. Support BT 5.0 HD: 4K / 1080p
Function: POE / LAN/ 4G LTE
High Light:

Rk3399 Main Board

,

Embedded Rk3399 Main Board

,

Customization ARM Embedded Board

High Performance ARM Embedded Rk3399 Main Board Android System Iot Board Support PCBA Hardware Customization

Overview for Embedded System Board:

Intelligent industrial all in one board, using Rockchip RK3399 six-core chip program, support Google Android7.1 or higher system. Powerful computing power. Support H.265 4K video playback. Rich interface and enhanced power management circuit. Suitable for intelligent remote network control: industrial, medical, large advertising, educational video terminals and other equipment.

Characteristic for Embedded System Board:

  • It also supports 7-inch to 84-inch LVDS interface displays (point-to-point full HD display 1920*1080) and EDP interface display.
  • Multiple interactive mode interfaces: capacitive touch, infrared touch, infrared remote control, USB mouse and keyboard, multi-point optical touch.
  • A variety of network interfaces: Ethernet, 4G, WIFI, Bluetooth.
  • Multi-channel USB interface, serial output.
  • Support 4K video play with HDMI 2.0 HD output.
  • Strong anti-electromagnetic interference and electromagnetic compatibility.

Sunchip is a professional android board designer/manufacturer in Shenzhen, China.

We have a team that includes more than 150 people. In this team, R&D has more than 80 employees that involving hardware engineers (layout, debugging), software engineers (Driver, Kernel, testing, APK), ID designer and Mechanical Engineers.

Basic hardware specifications for Embedded System Board:


CPU Rockchip RK3399 dual core Cortex-A72+ quad core Cortex-A53 CPU
GPU ARM Mali-T860MP4 GPU
Deposit LPDDR4 4G
Built-in storage capacity EMMC 8GB/16G/32G/64G optional (Default 16GB)
Display interface LVDS interface (single, 6-bit dual, 8-bit dual). Supports a maximum resolution of 1920x1080, support 7"-84" display
EDP screen interface, support resolution 1920x1080
Screen voltage Support 3.3V/5V/12V optional
Network With RJ45 interface, support 10/100/1000 Ethernet
Support 4G PCIE interface
With WIFI & BT module, support Wi-Fi 802.11a / b / g / n / ac protocol. Support BT 5.0
Image rotation Support 0 degree, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, support gravity sensing function
Real Time Clock External real-time clock power supply battery
Interface device Support MIPI camera x2
USB HOST x 3 (support usb camera@500W usb printer, U disk, mouse, keyboard and standard USB peripherals), 1x USB3.0
3x UART/(2 UART, 1 SPI), support external serial device (NFC module, printer, card reader, etc.)
TF card, maximum support 64GB
Class D amplifier: 5W*2 8 ohms, support microphone
HDMI 2.0 output
Audio MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP format
Video Supports H.264, MPEG2, VP6, VP8, MVC and other video formats. Online videos such as YouTube, up to 4K, HTML5 video playback, Flash 10.1 playback
Picture Support JPG, BMP, PNG, GIF and other image formats to browse and support rotation / image enlargement
Power Adapter Input:AC100-240V.50-60HZ, Output: DC12V/3A


Basic software for Embedded System Board:


Operating system Android 7.0
Basic software function Web browsing, email, e-book, resource manager
Sound mode Clock, alarm clock, calculator, recording
Voice support Multinational voice
Recording Support MP3, WMA format recording
Tool Calendar
Alarm Clock
Calculator
Note
Weather + clock
Recording
File processing EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT
E-book PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2
Schedule Calendar
Input Standard Android keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.)
Internet Browser -Chrome Lite
Email
Gmail
System Management APK installer
Original Android system, open root permissions, product customization development
Real-time remote monitoring, 7*24 hours unattended
Support OTA remote upgrade
System setting
Google Maps
Global time


High Performance ARM Embedded Rk3399 Main Board Support PCBA Hardware Customization 0High Performance ARM Embedded Rk3399 Main Board Support PCBA Hardware Customization 1High Performance ARM Embedded Rk3399 Main Board Support PCBA Hardware Customization 2High Performance ARM Embedded Rk3399 Main Board Support PCBA Hardware Customization 3High Performance ARM Embedded Rk3399 Main Board Support PCBA Hardware Customization 4
