Android 8.0 Embedded System Mainboard EDP LVDS MIPI Screen With RJ45 I2C IR Touch

Android 8.0 Embedded System Mainboard EDP LVDS MIPI Screen With RJ45 I2C IR Touch
Android 8.0 Embedded System Mainboard EDP LVDS MIPI Screen With RJ45 I2C IR Touch
Android 8.0 Embedded System Mainboard EDP LVDS MIPI Screen With RJ45 I2C IR Touch Android 8.0 Embedded System Mainboard EDP LVDS MIPI Screen With RJ45 I2C IR Touch Android 8.0 Embedded System Mainboard EDP LVDS MIPI Screen With RJ45 I2C IR Touch Android 8.0 Embedded System Mainboard EDP LVDS MIPI Screen With RJ45 I2C IR Touch Android 8.0 Embedded System Mainboard EDP LVDS MIPI Screen With RJ45 I2C IR Touch

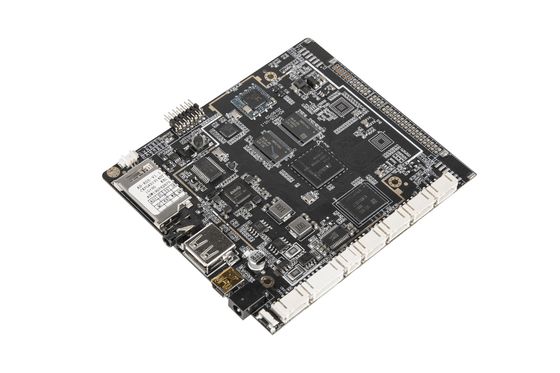

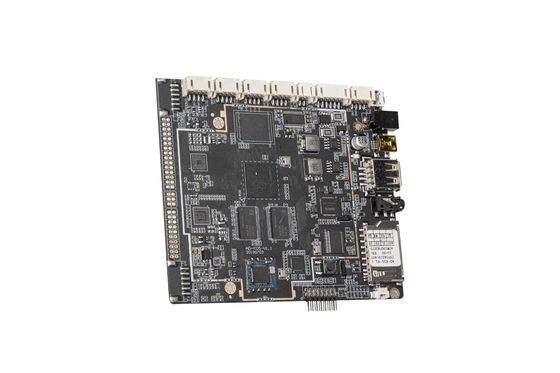

Large Image :  Android 8.0 Embedded System Mainboard EDP LVDS MIPI Screen With RJ45 I2C IR Touch

Product Details:
Place of Origin: SHENZHEN, CHINA
Brand Name: ADW
Certification: CE, ROHS, FCC, ISO9001
Model Number: AD-K05
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 5-8Working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000 pcs per month

Android 8.0 Embedded System Mainboard EDP LVDS MIPI Screen With RJ45 I2C IR Touch

Description
CPU: Rockchip RK-PX30 Quad-core Cortex-A35 GPU: Mali-G31 MP2
Frequency:: 1.5GHz Operating System: Android 8.0
RAM: DDR3 1G/2G Optional EMMC: 8GB/16G/32G/64G Optional
Touch Interface: I2C, USB Screen Interfaces: LVDS, EDP, MIPI
Working Temperature: -10°C ~ 60°C Working Humidity: 5% ~ 95%
Warranty: 1 Year
High Light:

LVDS Embedded System Mainboard

,

MIPI Screen Embedded System Mainboard

,

Android 8.0 Embedded System Board

I2C IR Touch Android 8.0 Embedded System Mainboard EDP LVDS MIPI RJ45





Quad-core RK-PX30 Android decoding driver all-in-one board



Model: AD-K05 V1.1



Sunchip is one of Apple's provider.We have provided advertising screen to Apple.

We are professional manufacturer and designer of LCD digital signage and Android board which was established in 2012,

we have more than 80 engineers focus on Android mainboard's software and hardware R & D, commercial media player/box(support Android and Linux OS), also provide SKD parts for LCD digital signage.



Product Overview:



Intelligent industrial all-in-one board with Rockchip RK-PX30 quad-core chip solution, supporting Android 8.0 system. Powerful computing capability. Rich interface, enhanced power management circuit. Suitable for intelligent remote network control: class industrial, medical, large advertising machines, educational video terminals and other equipment.



Feature:

  • Support all kinds of LVDS interface displays from 7" to 84" (point to point full HD display 1920*1080).
  • Support EDP interface display.
  • Support MIPI interface display.
  • Multiple interaction mode interface: capacitive touch, infrared touch, infrared remote control, USB keyboard and mouse, multi-point optical touch.
  • Multiple network interfaces: Ethernet, wireless Wifi, Bluetooth.
  • Multiple USB ports, serial ports.
  • Strong resistance to electromagnetic interference and electromagnetic compatibility.



Basic hardware specifications:



CPU Rockchip RK-PX30 Quad-core Cortex-A35 Mali-G31 MP2 GPU
Frequency 1.5GHz
RAM DDR3 1G/2G optional
EMMC 8GB/16G/32G/64G optional
Screen interfaces LVDS interface (single, 6-bit dual, 8-bit dual) Support maximum resolution 1920x1080, support 7"-84" display
MIPI interface
Screen voltage 3.3V/5V/12V optional
Touch screen

Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch)

Support USB multi-point infrared touch, multi-point acoustic touch, multi-point optical touch.

Network With RJ45 port, support 10/100 Ethernet.
Wifi&BT module with Wi-Fi 802.11b/g/n/protocol support. Support BT4.0 (optional WIFI 802.11 a/b/g/n/ac 5G&2.4G)
Image rotation Support 0 degrees, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, support gravity sensing function
Real Time Clock External real time clock powered battery
Interface Devices Support MIPI interface camera, up to 500W pixels
3 USB HOST, 1 USB OTG (supports usb camera @ 500W usb printer, USB stick, mouse, keyboard standard usb peripherals)
3 groups of serial ports. Support external serial device modules (3G module, NFC module, printer, card swiper, etc.)
Support SD card, up to 32GB
Class D amplifier: 5W*2 8 ohms, microphone support
Audio MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP
Video Multi-format 1080P 60fps video decoding (H.265,H.264,VC-1, MPEG-1/2/4, VP8), 1080P video encoding, support H.264,VP8
Picture Support JPG, BMP, PNG and other image formats to browse and support rotation / slideshow / picture zoom function
Power adapter Input:AC100-240V.50-60HZ, Output: DC12V /3A





Basic software specifications:

Operating System Android 8.0
Basic Software Features Web browsing, Web Chat, e-mail, e-books, resource management
Sound Mode Clock, alarm clock, calculator, recording
Language Multilingual
Recording Support MP3, WMA format recording
Tool Calendar
Alarm Clock
Calculator
Note
Weather+clock
Recording
File processing EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT
E-book PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2
Schedule Calendar
Input Standard Andriod keyboard with optional third-party input methods (Chinese, Korean, Japanese, etc.)
Internet Browser -ChromeLite
GOOGLE Market
Email
Gmail
Google talk
System Management APK installer
Original Android system with open root access for product customization and development
Real-time remote monitoring, system crash self-recovery, 7*24 hours unattended
System setting
Google Maps
Global time
Support OTA remote upgrade
