Product Details:
|
| Display Interface: | LVDS, EDP, MIPI, HD | CPU: | Rockchip RK3399 Dual-core Cortex-A72+ Quad-core Cortex-A53 |
|---|---|---|---|
| GPU: | ARM Mali-T860MP4 | RAM: | LPDDR4 4G |
| Internal Storage: | EMMC 8GB/16G/32G/64G Optional (label 16GB) | Network: | Support 10M/100M Ethernet, Wi-Fi 802.11a/b/g/n/ Ac Protocol, BT 4.0 |
| Touchscreen Interfaces: | I2C, USB | Operating System: | Android 9.0 |
| High Light: | EDP display Embedded System Board,Android 9.0 Embedded System Board,RK3399 Embedded System Development board |
||

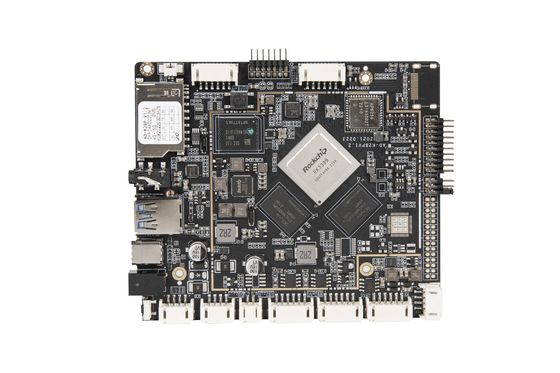

Android 9.0 RK3399 LVDS EDP MIPI Capacitive Touch 4K Resolution Embedded System Board
Model No: AD-K28P-V1.2
Sunchip is one of Apple's provider.We have provided advertising screen to Apple.
We are professional manufacturer and designer of LCD digital signage and Android board which was established in 2012,
we have more than 80 engineers focus on Android mainboard's software and hardware R & D, commercial media player/box(support Android and Linux OS), also provide SKD parts for LCD digital signage.
Overview
The intelligent industrial all-in-one board adopts the Rockchip RK3399 six-core chip solution and supports the Android9.0 system. Powerful computing power. Support H.265 4K video playback. Rich interface, enhanced power management circuit. It is suitable for intelligent remote network control: equipment such as industrial, medical, large advertising machine, educational video terminal and so on.
Characteristic
Ⅰ. Support 7-inch to 84-inch various LVDS interface displays (point-to-point full HD display 1920*1080).
Ⅱ. Support EDP interface display screen.
Ⅲ. Support MIPI interface display screen.
Ⅳ. Multiple interactive mode interfaces: capacitive touch, infrared touch, infrared remote control, USB keyboard and mouse, multi-point optical touch.
Ⅴ. Multiple network interfaces: Ethernet, wireless Wifi, Bluetooth.
Ⅵ. Multi-channel USB interface, serial port, IO port output.
Ⅶ. Support 4K video playback and HDMI 2.0 high-definition output.
Ⅷ. Strong anti-electromagnetic interference and electromagnetic compatibility.
Basic Hardware Specification
| CPU | Rockchip RK3399 dual-core Cortex-A72+ quad-core Cortex-A53 CPU |
| GPU | ARM Mali-T860MP4 GPU |
| Run and save | LPDDR4 4G |
| Built-in storage capacity | EMMC 8GB/16G/32G/64G optional (label 16GB) |
| Display interface | LVDS interface (single-channel, 6-bit dual-channel, 8-bit dual-channel). Support maximum resolution 1920x1080, support 7"-84" display |
| EDP screen interface, maximum resolution 4K | |
| MIPI screen interface, maximum resolution 1920*1080 | |
| Screen voltage | Support 3.3V/5V/12V optional |
| Touch screen |
Provide I2C interface (multi-point capacitive touch) Support USB multi-point capacitive touch, multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch |
| Network | With RJ45 interface, support 10/100 Ethernet |
| Equipped with Wifi&BT module, supporting Wi-Fi 802.11a/b/g/n/ ac protocol. Support BT4.0 | |
| Image rotation | Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation, gravity sensor function (optional) |
| Real Time Clock | External real-time clock power supply battery |
| Interface device | Support MIPI interface camera |
| 6 USB HOST (support usb camera@500W usb printer, U disk, mouse, keyboard and standard usb peripherals) | |
| 2 groups of UART, 1 group of SPI or 1 group of UART, 2 groups of SPI. Support external serial devices (NFC module, printer, card reader, etc.) | |
| SD card, maximum support 64GB | |
| Class D power amplifier: 3W*2 8 ohms, support microphone | |
| HDMI 2.0 output | |
| Audio | MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP Format |
| Video | Support H.264, MPEG2, VP6, VP8, MVC and other video formats 2160P@24FPS decoding. YouTube and other online videos, up to 4K, HTML5 video playback, Flash 10.1 playback |
| Picture | Support JPG, BMP, PNG, GIF and other image formats to browse and support rotation/image enlargement function |
| Power Adapter | Input: AC100-240V.50-60HZ, output: DC12V 3A |
Basic Software Specification
| Operating system | Android 9.0 |
| Basic software functions | Web browsing, email, e-book, resource manager |
| Sound effect mode | Clock, alarm clock, calculator, recording |
| Voice support | Multinational voice |
| Recording | Support MP3, WMA format recording |
| Tool | Calendar |
| Alarm Clock | |
| Calculator | |
| Note | |
| Weather + clock | |
| Recording | |
| File processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
| Ebook | PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 |
| Schedule | Calendar |
| Input | Standard Andriod keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.) |
| Network | Browser -ChromeLite |
| Gmail | |
| System Management | APK installer |
| The original ecological Android system, open root permissions, can be customized product development | |
| Real-time remote monitoring, self-recovery from system crashes, 7*24 hours unattended | |
| Support OTA remote upgrade | |
| System setting | |
| Google Maps | |
| Global time |
