Product Details:
|
| CPU&GPU: | Rockchip RK3566 Quad-core 64-bit Cortex-A55 GPU Mali-G52 | Main Frequency: | Up To 1.8GHz |
|---|---|---|---|
| RAM: | LPDDR4 2G/4G Optional | Built-in Storage Capacity: | EMMC 16G/32G/64G Optional |
| Display Interface: | LVDS, EDP, MIPI | Screen Voltage: | Support 3.3V/5V/12V Optional |
| Touch Screen: | I2C, USB, Acoustic Wave Touch, Multi-point Optical Touch | Operating System: | Android 11 |
| Language Support: | Multi-lingual | ||
| High Light: | Integrated RK3566 Embedded System Board,MIPI display Embedded System Board,Integrated RK3566 Embedded Board |
||
Sunchip is one of Apple's provider.We have provided advertising screen to Apple.
We are professional manufacturer and designer of LCD digital signage and Android board which was established in 2012,
we have more than 80 engineers focus on Android mainboard's software and hardware R & D, commercial media player/box(support Android and Linux OS), also provide SKD parts for LCD digital signage.
Overview:

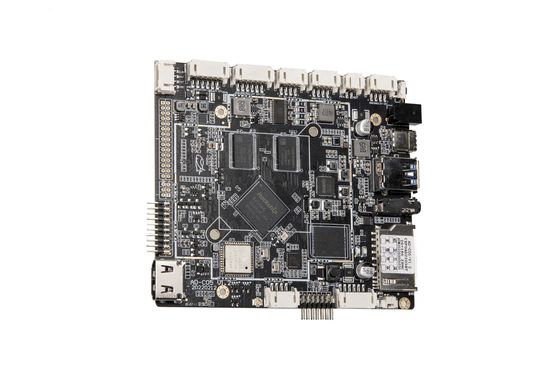

The intelligent industrial all-in-one board adopts the Rockchip RK3566 quad-core chip solution and supports the Android 11 system. Powerful computing power. Support multiple types of display interface, rich peripheral interface, enhanced power management circuit. Suitable for intelligent remote network control: equipment such as industrial, medical, large advertising machines, educational video terminals and other equipment.
Characteristic:
Basic Hardware Specification
| CPU | Rockchip RK3566 Quad-core 64-bit Cortex-A55 GPU Mali-G52 |
| Main frequency | Up to 1.8GHz |
| RAM | LPDDR4 2G/4G Optional |
| Built-in storage capacity | EMMC 16G/32G/64G Optional |
|
Display interface
|
LVDS screen interface (MIPI and LVDS can only choose one or the other) |
| EDP screen interface | |
| MIPI screen interface (MIPI and LVDS can only choose one or the other) | |
| Screen voltage | Support 3.3V/5V/12V optional |
| Touch screen |
Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch). Support USB multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch. |
|
The internet
|
With RJ45 interface, support 10/100 Ethernet. |
| Equipped with Wifi&BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0 | |
| Image rotation | Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation, support gravity sensor function |
| Real Time Clock | External real-time clock power supply battery |
| Interface device | Support MIPI interface camera, up to 500W pixels |
| 2 USB HOST (secondary board), 1 USB 3.0 (support usb camera @500W usb printer, U disk, mouse, keyboard, standard USB peripherals) | |
| 3 groups of serial ports. Support external serial port device module (3G module, NFC module, printer, card reader, etc.) | |
| SD card, maximum support 32GB | |
| Class D power amplifier: 3W*2 8 ohms, support microphone | |
| HDMI 2.0 output | |
| Audio | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP formats |
| Video | Support 4K 60fps H.265/H.264/VP9 video decoding; support 1080P 100fps H.265/H.264 video encoding; support 8M ISP |
| Picture | Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function |
| Power Adapter | Input: AC100-240V.50-60HZ, output: DC12V 3A |
| Operating system | Android 11 |
| Basic software functions | Web browsing, web chat, email, e-book, resource manager |
| Sound effect mode | Clock, alarm clock, calculator, recording |
| Language support | Multi-lingual |
| Recording | Support MP3, WMA format recording |
| Tool | Calendar |
| Alarm Clock | |
| Calculator | |
| Note | |
| Weather + clock | |
| Recording | |
| Word processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
| Ebook | PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 |
| Schedule | Calendar |
| Input | Standard Andriod keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.) |
| Network | Browser -ChromeLite |
| GOOGLE Market | |
| Gmail | |
| Google talk | |
| System Management | APK installer |
| Original ecological Android system, open root permission, can carry out product customization development | |
| Real-time remote monitoring, self-recovery from system crashes, 7*24 hours unattended | |
| System setting | |
| Google Maps | |
| Global time | |
| Support OTA remote upgrade |
