Product Details:
|
| CPU: | Rockchip RK3566 Quad-core A55 Architecture | Main Frequency: | 1.8 GHz |
|---|---|---|---|
| NPU: | 1TOPS Computing Power, Support Int8/int16 | RAM: | 2G DDR4 |
| Built-in Storage Capacity: | EMMC 16G/32G/64G Optional | Display Interface: | HD, MIPI, LVDS, EDP(optional) |
| Screen Voltage: | 3.3V/5V/12V Optional | Operating System: | Android 11 And Above |
| High Light: | NFC Printers Card Swipes Embedded Board,EDP Support Embedded Board,RK3566 Quad Core Embedded Board |
||

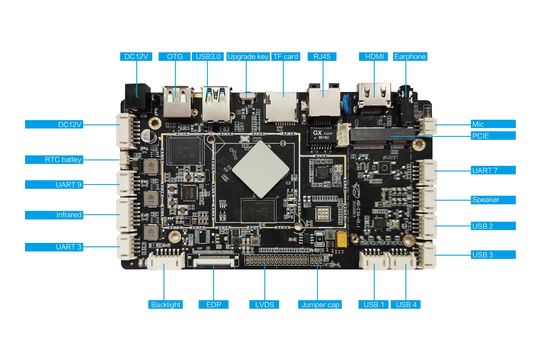

RK3566 Quad-core A55 1 TOPS MIPI LVDS EDP Support NFC Printers Card Swipes Embedded Board
Model No: AD-C36-V1.1
Sunchip is one of Apple's provider.We have provided advertising screen to Apple.
We are professional manufacturer and designer of LCD digital signage and Android board which was established in 2012,
we have more than 80 engineers focus on Android mainboard's software and hardware R & D, commercial media player/box(support Android and Linux OS), also provide SKD parts for LCD digital signage.
Intelligent industrial all-in-one large board, using Rockchip RK3566 quad-core chip solution. Support Android 11 system. Enhanced power management circuit. Support common external devices. Rich interface and stable performance. Suitable for intelligent remote network control: class industrial, medical, large advertising machines, educational video terminals and other equipment.
Basic hardware specifications
| CPU | Rockchip RK3566 Quad-core A55 architecture |
| Main frequency | 1.8GHz |
| GPU | ARM Mali-G52 2EE |
| OpenGL ES 1.1/2.0/3.2 | |
| Vulkan 1.1 | |
| OpenCL 2.0 | |
| Embedded with high performance 2D acceleration hardware | |
| NPU | 1TOPS computing power, support int8/int16 |
| RAM | 2G DDR4 |
| Built-in storage capacity | EMMC 16G/32G/64G optional |
| Display Interface | HD 2.0(maximum support 4K@60FPS) |
| MIPI display interface (MIPI and LVDS can only be selected as one) | |
| LVDS display interface (MIPI and LVDS can only be selected as one) | |
| EDPdisplay interface | |
| Screen voltage | 3.3V/5V/12V optional |
| Touch screen |
Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch) Support USB multi-point infrared touch, multi-point acoustic touch, multi-point optical touch. |
| Network | With RJ45 interface, support 10/100M Ethernet. |
| With Wifi & BT module, support Wi-Fi 802.11b/g/n protocol. Support BT4.0 | |
| Image rotation | Support 0 degrees, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, support gravity sensing function |
| Real-time clock | Built-in real-time clock powered battery |
| Interface device | Support MIPI interface camera, support up to 500W pixels |
| 4 USB HOST 2.0, 1 USB HOST3.0, 1 USB OTG (support usb camera @ 500W usb printer , USB stick , mouse , keyboard standard usb peripherals) | |
| 2 groups of serial ports, support external serial device modules (NFC modules, printers, card swipes, etc.) | |
| TF card, supports up to 32GB | |
| Class D amplifier: 3W*2 8 ohms, microphone support | |
| Audio | MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP |
| Video |
Support H.265/H.26/VP9 video decoding, up to 4K60FPS Support H.264/H.265 video encoding, up to 4K30FPS |
| Picture | Support JPG, BMP, PNG and other image formats to browse and support rotation / slideshow / image zoom function |
| Power adapter | Input:AC100-240V.50-60HZ, output: DC12V 3A(Internal positive and external negative) |
Basic software specifications
| Operating system | Android 11 and above |
| Basic software functions | Web browsing, web chat, email, e-book, resource manager |
| Sound mode | Clock, alarm clock, calculator, recording |
| Language | multi-lingual |
| recording | Support MP3, WMA format recording |
| Tool | Calendar |
| Alarm Clock | |
| Calculator | |
| Note | |
| Weather + clock | |
| Recording | |
| Word processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
| E-book | PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 |
| schedule | Calendar |
| Input | Standard Android keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.) |
| Internet | Browser -ChromeLite |
| GOOGLE Market | |
| Gmail | |
| Google talk | |
| System Management | Support OTA remote upgrade, U disk upgrade, SD upgrade (silent installation) |
| Original Android system with open root access for product customization and development | |
| Customizable local or remote server management system | |
| Support multiple third-party Android remote ad distribution systems | |
| Support multi-channel serial devices, USB devices, IO control devices |
