Product Details:
|
| CPU: | Rockchip RK3288 Quad-core Cortex-A17 Quad-core GPU Mali-T764 | Main Frequency: | 1.8 GHz |
|---|---|---|---|
| Deposit: | LPDDR3 2G/4G Optional | Built-in Storage Capacity: | EMMC 8GB/16G/32G/64G Etc. Optional |
| Display Interface: | LVDS, EDP | Screen Voltage: | Support 3.3V/5V/12V Optional |
| Internet: | RJ45, WIFI&BT | Interface: | MIPI Camera,DH Output |
| High Light: | Embedded System Board LVDS EDP,84inch Display Embedded System Board,4K Display Embedded System Board |
||

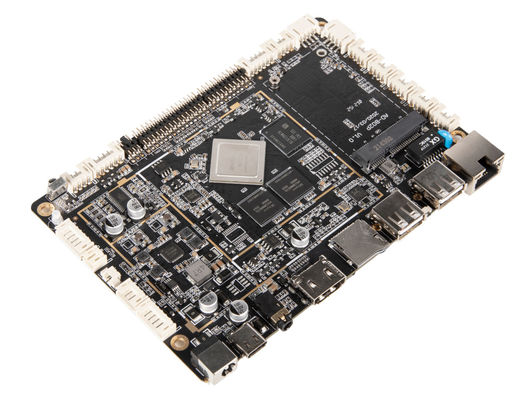

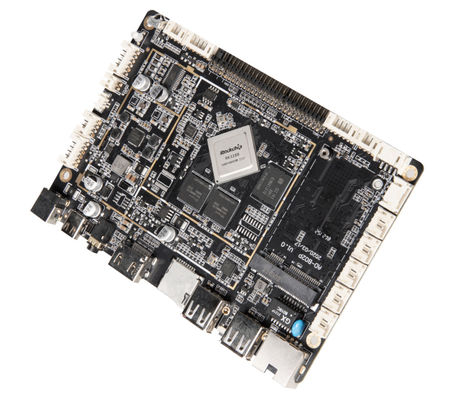

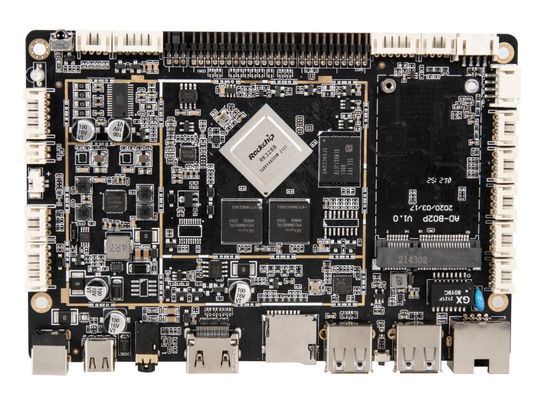

RK3288 Android integrated board adopts Rockchip RK3288 quad-core chip solution and supports Android 5.1 and above systems. Support the decoding of mainstream audio and video formats and pictures. Support EDP@4K, dual 8-bit LVDS interface 1920*1080, can drive 7" to 82" display screen. With HDMI interface, it supports 4K video playback. Abundant interfaces make the products more versatile and are widely used in intelligent control fields such as advertising machines, all-in-one machines, security, and industrial control. Due to its hardware platform and Android intelligent features, it can be used as an intelligent terminal platform when human-computer interaction or network device interaction is required.
Characteristic for Embedded System Board:
Sunchip has more than 10-year experience on PCBA design and mass-production, also passed the ISO9001 certification. Our office &factory have more than 3500 square meters.
Sunchip can provide one-stop service, from PCB layout, prototype, production, PCBA SMT, testing, housing design, assembly, software customization, QC control, after-sale etc.
Basic hardware specifications for Embedded System Board:
| CPU | Rockchip RK3288 Quad-core Cortex-A17 Quad-core GPU Mali-T764 |
| Main frequency | 1.8 GHz |
| Deposit | LPDDR3 2G/4G Optional |
| Built-in storage capacity | EMMC 8GB/16G/32G/64G etc. optional |
|
Display interface
|
LVDS interface (single-channel, 6-bit dual-channel, 8-bit dual-channel). Support maximum resolution 1920x1080, support 7"-82" display |
| EDP interface Maximum resolution 4K | |
| Screen voltage | Support 3.3V/5V/12V optional |
| Touch screen | Support I2C touch screen, USB multi-point infrared touch frame, resistance, capacitive touch screen. |
|
The internet
|
With RJ45 interface, support 10/100M Ethernet. |
| Equipped with wifi&BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0 | |
| With 4G module, support 4G network | |
| Image rotation | Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation, support gravity sensor function (optional) |
| Real Time Clock | External real-time clock power supply battery |
|
Interface device
|
Support MIPI camera |
| Support HDMI output | |
| 5 USB HOST (support usb camera@500W usb printer, U disk, mouse, keyboard and standard usb peripherals) | |
| 3 groups of serial ports (1 group of UART; 2 groups of standard UART or optional RS232). Support external serial devices (NFC module, printer, card reader, etc.) | |
| 3 IO detection ports | |
| TF card | |
| D class large built-in speaker, 5W*2 8R | |
| Support microphone | |
| Audio | MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP format |
| Video | Support H.264, MPEG2, VP6, VP8, MVC and other video formats 2160P@24FPS decoding. YouTube and other online videos, up to 4K, HTML5 video playback, Flash 10.1 playback |
| Image | Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function |
| Power Adapter | Input:AC100-240V.50-60HZ, Output: DC12V 3A |
Basic software for Embedded System Board:
| operating system | Android 5.1 and above |
| Basic software functions | Web browsing, web chat, email, e-book, resource manager |
| Sound effect mode | Clock, alarm clock, calculator, recording |
| language support | multi-lingual |
| recording | Support MP3, WMA format recording 3gpp, amr and other formats, according to the recording APK is different, the format is different, now the system comes with the amr format |
|
tool
|
Calendar |
| Alarm Clock | |
| Calculator | |
| Note | |
| Weather + clock | |
| Recording | |
| Word processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
| E-book | PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 |
| schedule | Calendar |
| Input | Standard Andriod keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.) |
|
The internet
|
Browser -ChromeLite |
| Gmail | |
| System Management | APK installer |
| Original ecological Android system, open root permission, can carry out product customization development | |
| Real-time remote monitoring, self-recovery from system crashes, 7*24 hours unattended | |
| System setting | |
| Global time | |
| Support OTA remote upgrade |
FAQ for Embedded System Board:
Q: Are you trading company or manufacturer?
A: We are original manufacturer Of Embedded System Board
We can do OEM/ODM business.
Q: How long is your delivery time?
A: Group buying delivery time: 30-60 days; General delivery time: 20 days.
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
Q: What is the warranty ?
A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.
