Product Details:
|
| CPU: | Rockchip RK3288 Quad-core Cortex-A17 Quad-core GPU Mali-T764 | RAM: | LPDDR3 2G/4G Optional |
|---|---|---|---|
| EMMc: | EMMC 8GB/16G/32G/64G Optional（defaulted 8GB） | Diaplay Interface: | EDP,MIPI |
| Touch Screen: | I2C Interface | Main Frequency: | Up To 1.8GHz |
| The Internet: | RJ45,WIFI,BT | Mainboard Backlight: | Support 3.3V/5V/12V Optional |
| High Light: | 84" Display Embedded System Board,EDP MIPI Embedded System Board,Embedded System Board RK3288 |
||

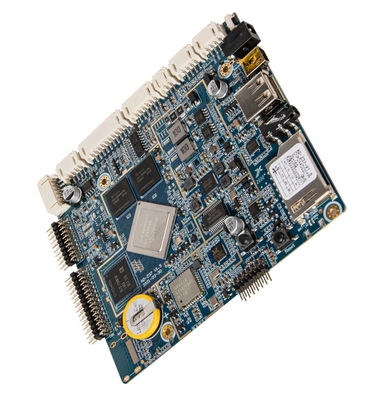

Smart industry all in one board, using Rockchip RK3288 quad-core chip program, support Google Android7.1 and 8.0 above system. Powerful computing power. Support H.265 4K video playback. Interface rich, enhanced power management circuit. Applicable to intelligent remote network control: class industry, medical, large advertising machine, educational video terminal and other equipment.
Sunchip has more than 10-year experience on PCBA design and mass-production, also passed the ISO9001 certification. Our office &factory have more than 3500 square meters.
Sunchip can provide one-stop service, from PCB layout, prototype, production, PCBA SMT, testing, housing design, assembly, software customization, QC control, after-sale etc.
Basic hardware specifications for Embedded System Board:
| CPU | Rockchip RK3288 quad-core Cortex-A17 quad-core GPU Mali-T764 |
| Frequency | 1.8 GHz |
| RAM | LPDDR3 2G/4G Optional |
| Built-in storage capacity | EMMC 8GB/16G/32G/64G optional(defaulted 8GB) |
| Display interface | MIPI, Max. 1920*1080P. |
| EDP, max. resolution 4K | |
| Mainboard backlight | Support 3.3V/5V/12V Optional |
| Touch screen | Provides I2C interface (can support multi-point resistance touch, multi-point capacitive touch). |
| Network | With RJ45 interface, support 10/100 Ethernet. |
| With Wifi & BT module, support Wi-Fi 802.11b / g / n / ac protocol(optional) Support BT4.0 | |
| Image rotation | Support 0 degrees, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, support gravity sensing function |
| Real Time Clock | Built-in real-time clock powered battery |
| Interface device | Support MIPI Camera |
| 4 USB HOST,1 USB OTG (Support usb camera @500W, usb printer, U disk, mouse, keyboard, standard usb peripherals) | |
| Serial ports x 3. Support external serial device module (3G module, NFC module, printer, card reader, etc.) | |
| SD card, maximum support 32GB | |
| Class D power amplifier: 1.5W * 2 8 Europe, support for the microphone | |
| HDMI 2.0 output format | |
| Audio | MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP |
| Video | Support 2160P @ 24FPS decoding such as H.264, MPEG2, VP6, VP8, MVC and other video formats. YouTube and other online video, up to 1080P, HTML5 video playback, Flash10.1 play |
| Picture | Support JPG, BMP, PNG and other picture formats to browse and support the rotation / slide show / picture zoom |
| Power Adapter | Input:AC100-240V.50-60HZ, Ouput: DC12V 3A |
Basic software for Embedded System Board:
| Operating system | Above Google Android 7.1 &8.0 /LINUX Debian |
| Basic software functions | Web browsing, web chat, e-mail, e-books, and resource managers |
| Sound mode | Clock, alarm clock, calculator, recording |
| Language support | Multi-lingual |
| Recording | Support MP3, WMA format recording |
| Tool | Calendar |
| Alarm Clock | |
| Calculator | |
| Note | |
| Weather + clock | |
| Recording | |
| Document processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
| Ebook | PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 |
| Schedule | Calendar |
| Input | Standard Andriod keyboard, optional third party input method (Chinese, Korean, Japanese, etc.) |
| Internet | Browser -ChromeLite |
| GOOGLE Market | |
| Gmail | |
| Google talk | |
| System Management | APK Installer |
| Original eco-Android system, open root privileges, can be customized product development | |
| Real-time remote monitoring, system crash since recovery, 7 * 24 hours unattended | |
| System setting | |
| Google Maps | |
| Global time | |
| Support OTA remote upgrade | |
FAQ for Embedded System Board:
Q: Are you trading company or manufacturer?
A: We are original manufacturer Of Embedded System Board
We can do OEM/ODM business.
Q: How long is your delivery time?
A: Group buying delivery time: 30-60 days; General delivery time: 20 days.
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
Q: What is the warranty ?
