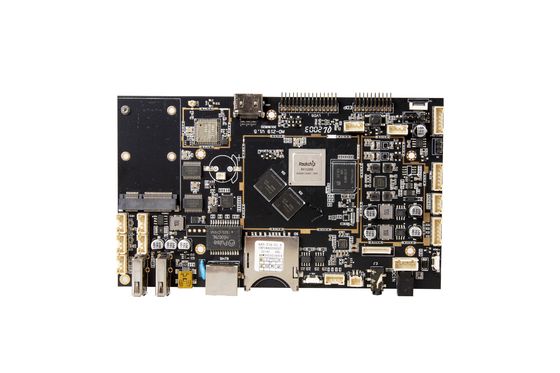

2.2Ghz Embedded System Board LVDS 4K EDP 2K Video Playback For Intelligent Terminals

2.2Ghz Embedded System Board LVDS 4K EDP 2K Video Playback For Intelligent Terminals
2.2Ghz Embedded System Board LVDS 4K EDP 2K Video Playback For Intelligent Terminals 2.2Ghz Embedded System Board LVDS 4K EDP 2K Video Playback For Intelligent Terminals 2.2Ghz Embedded System Board LVDS 4K EDP 2K Video Playback For Intelligent Terminals 2.2Ghz Embedded System Board LVDS 4K EDP 2K Video Playback For Intelligent Terminals

Large Image :  2.2Ghz Embedded System Board LVDS 4K EDP 2K Video Playback For Intelligent Terminals

Product Details:
Place of Origin: Shenzhen, China
Brand Name: SunChip
Certification: CE, ROHS, FCC, ISO9001
Model Number: AD-Z19
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Carton / Wooden case
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 6000 Units per Month
Contact Now

2.2Ghz Embedded System Board LVDS 4K EDP 2K Video Playback For Intelligent Terminals

Description
Operating System: Android 4.4 Resolution Support: 1920*1080
CPU: Rockchip RK3288 Quad-core Cortex-A17 Frequency: 2.2Ghz
RAM: LPDDR3 2G/4G(optional) Internal Storage: EMMC 8GB/16G/32G(optional) Support NAND FLASH
Display Interface: LVDS, EDP SD Card: Support Up To 32GB
Highlight:

LVDS 4K Embedded System Board

,

2.2Ghz Embedded System Board

,

EDP 2K Embedded System Board



High Integration Dual 8-bit LVDS 4K*2K Video Playback Embedded System Board For Intelligent Terminals



Model: AD-Z19-V1.3



Sunchip is one of Apple's provider.We have provided advertising screen to Apple.

We are professional manufacturer and designer of LCD digital signage and Android board which was established in 2012,

we have more than 80 engineers focus on Android mainboard's software and hardware R & D, commercial media player/box(support Android and Linux OS), also provide SKD parts for LCD digital signage.



Characteristics:



1. High performance. RK3288 chip using quad-core A17 program, is currently one of the most powerful quad-core chip on the market. Using the chip RK3288 motherboard program, compared to the market's common single-core, dual-core, quad-core program, there is a qualitative leap in performance, to play a variety of formats HD video screen, can handle complex interactive operations.



  • High stability. RK3288 Android all-in-one board, in hardware, software, adding their own unique technology to ensure product stability, can make the final product to 7 * 24 hours unattended.



2. High integration. RK3288 Android all-in-one board integrated Ethernet, wifi, Bluetooth, amplifier, SD card, backlight power supply and other functions, greatly simplifying the overall design. Ultra-thin motherboard design, can make the whole design of the machine more beautiful.



  • High expandability. 6 USB ports, 3 serial ports, can be extended to more peripheral devices.



Basic Hardware Specification



CPU Rockchip RK3288 Quad-core Cortex-A17 Quad-core GPU Mali-T764
Frequency 2.2 GHz
RAM LPDDR3 2G/4G optional
Internal Storage EMMC 8GB/16G/32G optional
Display Interface LVDS interface (single, 6-bit dual, 8-bit dual) Support maximum resolution 1920x1080, support 7"-82" display
EDP interface Maximum resolution: 4K*2K
On-board backlighting Support 3.3V/5V/12V optional
Touch Screen

Provide I2C interface (support multi-point resistive touch, multi-point capacitive touch)

Support USB multi-point infrared touch, multi-point acoustic touch, multi-point optical touch.
Network RJ45 port, support10/100/1000M Ethernet.
With wifi & BT module, support Wi-Fi 802.11b/g/n/ ac protocol. Support BT4.0
Image rotation Support 0 degrees, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, support gravity sensing function
Real Time Clock Built-in real-time clock powered battery
Interface Devices Support DVP interface camera, support up to 500W pixels
Support USB camera
Support VGA,1280*720 output
5*USB HOST,1*USB OTG
3 groups of serial ports. Support external serial device modules (3G module, NFC module, printer, card swiper, etc.)
3 IO detection ports
SD card, support up to 32GB
D class large built-in speakers, 3W*2 4R
Support speaker
Audio MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP
Video Support H.264,MPEG2,VP6,VP8,MVC For 2160P@24FPS decoding. YouTube online video,up to 1080P,HTML5,Flash10.1
Image Support JPG, BMP, PNG and other image formats to browse and support rotation / slideshow / image zoom function
Power adapter Input:AC100-240V.50-60HZ, Output: DC12V 3A


Basic Software Specification

OS Google Android 4.4
Basic Software Features Web browsing, web chat, email, eBooks, Explorer
Sound mode Clock, alarm clock, calculator, recording
Language Multi-language
Recording Support MP3, WMA format recording
Tool Calendar
Alarm Clock
Calculator
Note
Weather+Clock
Recording
File process EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT
E-book PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2
Schedule Calendar
Input Standard Andriod keyboard with optional third-party input methods (Chinese, Korean, Japanese, etc.)
Network Browser -ChromeLite
GOOGLE Market
Email
Gmail
Google talk
System management APK installer
Original Android system with open root access for product customization and development
Real-time remote monitoring, system crash self-recovery, 7*24 hours unattended
System setting
Google Maps
Global time
Support OTA remote upgrade




2.2Ghz Embedded System Board LVDS 4K EDP 2K Video Playback For Intelligent Terminals 0

2.2Ghz Embedded System Board LVDS 4K EDP 2K Video Playback For Intelligent Terminals 1

2.2Ghz Embedded System Board LVDS 4K EDP 2K Video Playback For Intelligent Terminals 2
