Quad Core RK3128 Android Controller Board Decoding Driver MIPI LVDS All In One Board

Quad Core RK3128 Android Controller Board Decoding Driver MIPI LVDS All In One Board
Quad Core RK3128 Android Controller Board Decoding Driver MIPI LVDS All In One Board Quad Core RK3128 Android Controller Board Decoding Driver MIPI LVDS All In One Board

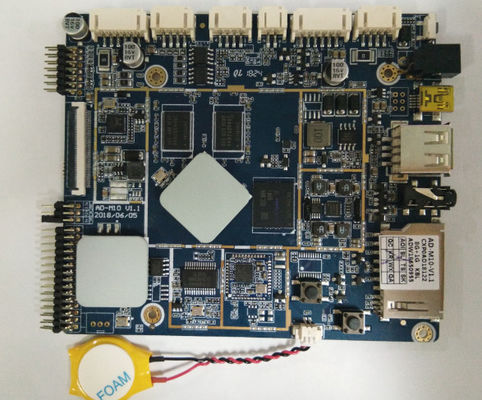

Large Image :  Quad Core RK3128 Android Controller Board Decoding Driver MIPI LVDS All In One Board

Product Details:
Place of Origin: SHENZHEN, CHINA
Brand Name: Sunchip
Certification: CE, ROHS, FCC, ISO9001
Model Number: AD-M10
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Carton box
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000 pcs per month

Quad Core RK3128 Android Controller Board Decoding Driver MIPI LVDS All In One Board

Description
Item Condition: New CPU: Rockchip RK3128 Quad-core Cortex-A7
GPU: Quad-core Mali-400MP2 Frequency: 1.2GHz
Screen Interface: LVDS, MIPI-DSI RAM: DDR3 1G/2G Optional
Working Temperature: -10°C~50°C Warranty: 12 Months
High Light:

RK3128 Android Controller Board

,

Android Controller Board Decoding Driver

,

LVDS Android All in One Board

High Performance Quad-core RK3128 Android Decoding Driver MIPI LVDS All-in-One Board





Quad-core RK3128 Android decoding driver all-in-one board

Model: AD-M10-V1.1





Product Description:



RK3128 Android all-in-one board, using Rockchip RK3128 quad-core chip solution, support Android 6.0 system. Support the decoding of mainstream audio and video formats and pictures. Both MIPI interface LCD panel, can support the highest resolution of 1366 * 768, can also be used LVDS interface LCD panel, can support the highest resolution of 1920 * 1080, support 1080P video playback. Rich interface, so that the product becomes more universal, is widely used in advertising machines, all-in-one machines, security, industrial control and other intelligent control fields. Because of its hardware platform and Android intelligence, it can be used as an intelligent terminal platform when human-machine interaction and network device interaction are required.



Feature:

  • High performance. The RK3128 chip is powered by a quad-core Cortex-A7 with the frequency up to 1.2GHz.

  • High stability. RK3128 Android all-in-one board, in hardware and software, add their own unique technology to ensure the stability of the product, can make the product to 7 * 24 hours unattended.

  • Highly integrated. The RK3128 Android all-in-one board integrates Ethernet, wifi, amplifier, SD card, and more, greatly simplifying the overall design of the machine. Ultra-thin motherboard design, can make the entire design of the machine more beautiful.

  • High expandability with 4 USB ports for more external devices.



Basic Hardware Specifications



CPU Rockchip RK3128 Quad-core Cortex-A7 Quad-core GPU Mali-400MP2
Frequency 1.2 GHz
RAM DDR3 1G/2G optional
Internal storage capacity EMMC 8GB/16G optional
Screen Interface LVDS interface, can support up to 1920*1080 resolution
MIPI-DSI interface, can support up to 1366*768 resolution
Touch Screen Provide I2C interface (can support multi-point capacitive touch), USB (can support multi-point resistive touch, multi-point capacitive touch, infrared touch frame)
Network With RJ45 interface, support 10/100M Ethernet
With wifi module, support Wi-Fi 802.11b/g/n protocol
Image rotation Support 0 degrees, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, gravity sensing function (optional)
Real Time Clock Built-in real-time clock powered battery
Interface Devices Support DVP interface camera
3 x USB HOST, 1 x USB OTG
1 UART to support external serial devices (NFC modules, printers, card swipers, etc.)
SD card, supports up to 32GB
D class built-in speaker, 3W* 2 8R
Audio MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP
Video Multi-format 1080P 60fps video decoding (H.265, H.264, VC-1, MPEG-1/2/4, VP8). YouTube and other online video, up to 1080P, HTML5 video playback, Flash10.1 playback
Picture Support JPG, BMP, PNG and other image formats to browse and support rotation / slideshow / picture zoom function
Power adapter Input:AC100-240V.50-60HZ, Output: DC12V 3A





Basic Software Specifications



Operating System Android 6.0
Basic Software Features Web browsing, Web Chat, e-mail, e-books, resource management
Sound Mode Clock, alarm clock, calculator, recording
Language Multilingual
Recording Support MP3, WMA format recording
Tool Calendar
Alarm Clock
Calculator
Note
Weather+Clock
Recording
File processing EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT
E-book PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2
Schedule Calendar
Input Standard Andriod keyboard with optional third-party input methods (Chinese, Korean, Japanese, etc.)
Internet Browser -ChromeLite
GOOGLE Market
Email
Gmail
Google talk
System Management APK installer
Original Android system with open root access for product customization and development
Real-time remote monitoring, system crash self-recovery, 7*24 hours unattended
System setting
Google Maps
Global time
