2GB 4GB RAM Mini Computer Board , EDP LVDS 10/100/1000M Ethernet Microcontroller Board

2GB 4GB RAM Mini Computer Board , EDP LVDS 10/100/1000M Ethernet Microcontroller Board
2GB 4GB RAM Mini Computer Board , EDP LVDS 10/100/1000M Ethernet Microcontroller Board 2GB 4GB RAM Mini Computer Board , EDP LVDS 10/100/1000M Ethernet Microcontroller Board 2GB 4GB RAM Mini Computer Board , EDP LVDS 10/100/1000M Ethernet Microcontroller Board

Large Image :  2GB 4GB RAM Mini Computer Board , EDP LVDS 10/100/1000M Ethernet Microcontroller Board

Product Details:
Place of Origin: China
Brand Name: ADW
Model Number: AD-Z33
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD55~USD70/pc
Packaging Details: 1pc/bubble bag, proper qty in a carton
Delivery Time: 1~3days if have stock, 30 days if out of stock
Payment Terms: T/T, Western Union
Supply Ability: 1,000,000pcs per month

2GB 4GB RAM Mini Computer Board , EDP LVDS 10/100/1000M Ethernet Microcontroller Board

Description
CPU: RK3288 Quad Core GPU: Mali-T764
EDP Screen Interface: Support Resolution 1920*1080P Touch Screen: I2C Interface
Internet: RJ45 Interface, Support 10M/100M/1000M Ethernet OS: Android 5.0 Or Above
USB: USB2.0*2 RAM: 2GB,4GB Optional
EMMC: 8GB,16GB,32GB Optional
High Light:

embedded computer boards

,

embedded cpu boards

2GB 4GB RAM Mini Computer Board , EDP LVDS 10/100/1000M Ethernet Microcontroller Board



Summary

Smart All-in-one Industrial mainboard, which is based on Rockchip RK3288 Quad core chipset. It supports Android 4.4 and 5.1 or above OS. Reinforced power-management circult, supports attached devices. Ample interfaces, steady performance. It can be used in smart remote control, such as Industrial, medical, Advertise-machine, education video terminal etc.



Feature

  •   Support LVDS interface monitors from 7 inch to 84 inch,
  •  Multi Interaction modes: Capacitive Touch, IR Touch, IR remote, USB keyboard/mouse, Multi-touch
  •  Multi network interfaces: Ethernet, Wireless WIFI, BT
  •  Multi interfaces: USB, serial ports, IO interface, I2C, DC output



Strong anti-electromagnetic interference and Electromagnetic compatibility

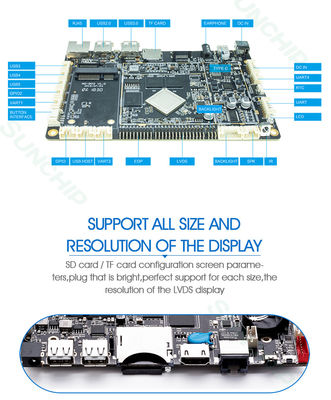

Product Picture



2GB 4GB RAM Mini Computer Board , EDP LVDS 10/100/1000M Ethernet Microcontroller Board 0

2GB 4GB RAM Mini Computer Board , EDP LVDS 10/100/1000M Ethernet Microcontroller Board 1

2GB 4GB RAM Mini Computer Board , EDP LVDS 10/100/1000M Ethernet Microcontroller Board 2



Basic specification of HW

CPU Rockchip RK3288 Quad core Cortex-A17, Quad core GPU Mali-T764
Frequency 2.2 GHz
RAM DDR3 2G/4G optional
EMMC EMMC 8GB/16G/32G optional(standard 8GB,support NAND FLASH)
Interface of monitor LVDS(single way,6 bit two-way,8 bit two-way).Resolution max 1920x1080,support 7"-84" monitar
EDP 2.0, Resolution max:support 2K screen
Mainboard backlight Support 3.3V/5V/12V(optional)
Touch Screen

I2C interface(support resistive touch, capacitive touch)

Support USB IR multi touch,sonic multi touch,optical multi touch

Network RJ45 interface, ethernet 10/100/1000M
Wi-Fi 802.11b/g/n/ ac, BT4.0
Image rotation Support 0°, 90°, 180°, 270°, manual control or automatic, gravity
RTC internal battery for Real time clock
interfaces Support MIPI camera,max 5MP
Support USB camera, max 2MP
USB HOST x 5,USB OTG x 1
Serial ports x 3, support external devices(NFC module, printer, card reader etc.).
IO ports x 3
TF card slot, support 32GB max
D amplifier:3W*2 8Ω,support microphone
HD 2.0
Audio MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP
Video Support H.264,MPEG2,VP6,VP8,MVC, 2160P@24FPS decoding, . on-line video such as YouTube, max support 1080P,HTML5 playback,Flash10.1 playback
Picture Support JPG,BMP,PNG etc. picture formats, browse, orientation, slides, magnify
Power supply input:AC100-240V.50-60HZ, output: DC12V 3A




Basic Software specification

OS Google Android 4.2,4.4,5.1
Language Multi language
OS management Support OTA upgrade,U disk upgrade,SD card upgrade
  Original Android OS, rooted,OEM/ODM support
  Support output to 3 monitors at same time
  Support customized local or remote server management OS
Support third-party Android remote Advertisement release OS
Support multi serials devices, USB devices, IO controlled devices
Support output different videos to two monitors

2GB 4GB RAM Mini Computer Board , EDP LVDS 10/100/1000M Ethernet Microcontroller Board 3
2GB 4GB RAM Mini Computer Board , EDP LVDS 10/100/1000M Ethernet Microcontroller Board 4
For more detail informations,please contact Juli Wu: Juli@sunchip-tech.com   Skype: juliwmy
