Product Details:
|
Product Name: | Android ARM Board | Model: | AD-C33P, AD-C36 |
---|---|---|---|
CPU: | RK3566 RK3568, RK3288, RK3399, RKPX30 Etc. | WIFI: | 2.4G Defaulted, Or 5G Optional |
BT: | 5.2 | LAN: | 100M Or 1000M |
RAM: | 2G/4G Optional | ROM: | 16GB/32GB(optional) |
OS: | Android 11.0 | ||
Highlight: | embedded computer boards,embedded cpu boards,Advertising Embedded System Board |
rk3566 pcba circuit board support WIFI BT LAN embedded arm board 4G POE android development board arm advertising board

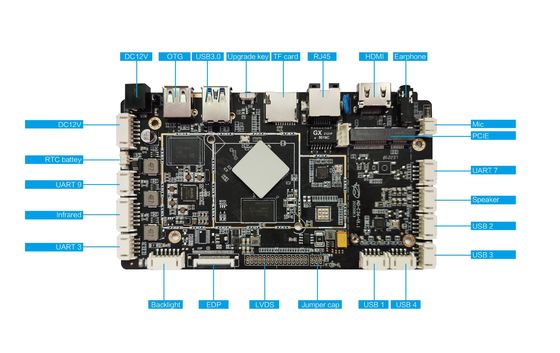

Product Model:AD-C36-V1.1
Quad-core RK3566 Android Decoding Driver Integrated Board
Product Overview:
1, Intelligent industrial all-in-one large board, using Rockchip RK3566 quad-core chip solution.
2, Support Android 11 system. Enhanced power management circuit.
3, Support common external devices.
4, Rich interface and stable performance.
5, Suitable for intelligent remote network control: class industrial, medical, large advertising machines, educational video terminals and other equipment.
Product Characteristic:
1, Support MIPI interface display + EDP interface display + LVDS interface display + HDMI 2.0 (4K display)
2, Multiple interaction mode interface: capacitive touch, infrared touch, USB keyboard and mouse, multi-point optical touch.
3, Multiple network interfaces: Ethernet, wireless Wifi, Bluetooth.
4, Multiple USB ports, serial ports.
5, Strong resistance to electromagnetic interference and electromagnetic compatibility.
Basic hardware specifications:
CPU | Rockchip RK3566 Quad-core A55 architecture |
Main frequency | 1.8GHz |
GPU | ARM Mali-G52 2EE |
OpenGL ES 1.1/2.0/3.2 | |
Vulkan 1.1 | |
OpenCL 2.0 | |
Embedded with high performance 2D acceleration hardware | |
NPU | 1TOPS computing power, support int8/int16 |
RAM | 2G DDR4 |
Built-in storage capacity | EMMC 16G/32G/64G optional |
Display Interface | HDMI2.0(maximum support 4K@60FPS) |
MIPI display interface (MIPI and LVDS can only be selected as one) | |
LVDS display interface (MIPI and LVDS can only be selected as one) | |
EDP display interface | |
Screen voltage | 3.3V/5V/12V optional |
Touch screen |
Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch) Support USB multi-point infrared touch, multi-point acoustic touch, multi-point optical touch. |
Network | With RJ45 interface, support 10/100M Ethernet. |
With Wifi & BT module, support Wi-Fi 802.11b/g/n protocol. Support BT4.0 | |
Image rotation | Support 0 degrees, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, support gravity sensing function |
Real-time clock | Built-in real-time clock powered battery |
Interface device | Support MIPI interface camera, support up to 500W pixels |
4 USB HOST 2.0, 1 USB HOST3.0, 1 USB OTG (support usb camera @ 500W usb printer, USB stick, mouse, keyboard standard usb peripherals) | |
2 groups of serial ports, support external serial device modules (NFC modules, printers, card swipes, etc.) | |
TF card, supports up to 32GB | |
Class D amplifier: 3W*2 8 ohms, microphone support | |
Audio | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A,3GPP |
Video |
Support H.265/H.26/VP9 video decoding, up to 4K60FPS Support H.264/H.265 video encoding, up to 4K30FPS |
Picture | Support JPG, BMP, PNG and other image formats to browse and support rotation / slideshow / image zoom function |
Power adapter | Input:AC100-240V.50-60HZ, output: DC12V 3A(Internal positive and external negative) |
Basic software specifications:
Operating system | Android 11 and above |
Basic software functions | Web browsing, web chat, email, e-book, resource manager |
Sound mode | Clock, alarm clock, calculator, recording |
Language | multi-lingual |
recording | Support MP3, WMA format recording |
Tool | Calendar |
Alarm Clock | |
Calculator | |
Note | |
Weather + clock | |
Recording | |
Word processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
E-book | PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 |
schedule | Calendar |
Input | Standard Android keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.) |
Internet | Browser -Chrome Lite |
GOOGLE Market | |
Gmail | |
Google talk | |
System Management | Support OTA remote upgrade, U disk upgrade, SD upgrade (silent installation) |
Original Android system with open root access for product customization and development | |
Customizable local or remote server management system | |
Support multiple third-party Android remote ad distribution systems | |
Support multi-channel serial devices, USB devices, IO control devices |
FAQ:
Q1: I need large quantities, so, can I have lower price?
A: We will lower your cost if you can order large quantities at a time, please contact our us for details.
Q2: Can you modify the standard product?
A: Sure, please submit your technical requirement and order quantity, we will modify the
product after audit.
Q3: Can we cooperate for customized project?
A: Yes. Sunchip is a company which support OEM/ODM service. We often deal with special case.
Q4: Can I pre-install APPs?
A: Sure, we can pre-install customers’ APP into the Android System.
Except for pre-install APPs, Sunchip also support to customize the boot logo and animation, revise the system model number and build number, set defaulted time zone and language etc.
Q5: How is the stability of product?
A: Our Android LCD is usually used in retailing and industrial grade/application;
It can work 7*24h without crash.
The 4G or Wi-Fi or Ethernet can also work stable for long time.
Q6: Any optional version for the product?
A: Yes, such as the android board models, RAM/ROM, OS Version, LCD module size, touch or not, brightness, WIFI/BT LAN and 4G, GPS etc.
Q7: How is your warranty policy?
A: 12-month.
SUNCHIP product list:
1, Android industrial Embedded board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android media player box for digital signage advertising: RK3399, RK3288, RK3328, RK3568.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Stretched lcd Display signage, support ODM.
5, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
6, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
7, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
8, Embedded touch desk: such as 32inch.
9, Face recognition temperature detection terminal machine: such as 8inch.
[you can also tell us your requirements, so that we advise you a matched solution]
