RK3566 Android 11 Interactive Digital Signage Display with 16GB/32GB/64GB Internal Memory Options

Certification
China Shenzhen Sunchip Technology Co., Ltd. certification
China Shenzhen Sunchip Technology Co., Ltd. certification
Customer Reviews
Awesome news! I know your team has worked hard, thanks for finish the project so quickly.

—— Brian Walker

I like your sample very much. Looking forward to growing our partnership

—— Jenny Westbrook

I'm Online Chat Now

RK3566 Android 11 Interactive Digital Signage Display with 16GB/32GB/64GB Internal Memory Options

RK3566 Android 11 Interactive Digital Signage Display with 16GB/32GB/64GB Internal Memory Options
RK3566 Android 11 Interactive Digital Signage Display with 16GB/32GB/64GB Internal Memory Options
RK3566 Android 11 Interactive Digital Signage Display with 16GB/32GB/64GB Internal Memory Options RK3566 Android 11 Interactive Digital Signage Display with 16GB/32GB/64GB Internal Memory Options RK3566 Android 11 Interactive Digital Signage Display with 16GB/32GB/64GB Internal Memory Options

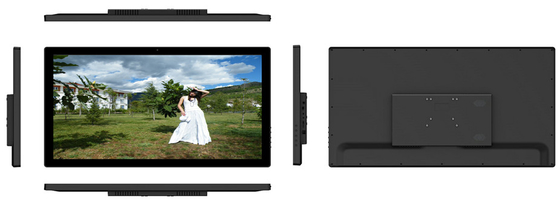

Large Image :  RK3566 Android 11 Interactive Digital Signage Display with 16GB/32GB/64GB Internal Memory Options

Product Details:
Place of Origin: China
Brand Name: ADW
Certification: ISO9001, ISO4001, ISO27001
Model Number: AD-3245
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiated
Packaging Details: 1pc/ box, proper qty in a carton
Delivery Time: 15-30 days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 10000 pcs per month

RK3566 Android 11 Interactive Digital Signage Display with 16GB/32GB/64GB Internal Memory Options

Description
CPU: RK3566 Ram: 2GB Or 4GB
Rom: 16GB/32GB/64GB Optional Resolution: 1920*1080P
Material: Plastic OS: Android 11
WIFI: 802.11 B/g/n 4G LTE: Optional
Warranty: 1 Year
Highlight:

16GB Interactive Digital Signage

,

RK3566 Interactive Digital Signage

,

32GB Interactive Digital Signage

 LCD Advertising Display RK3566





Features:




Scheduling playback:Issue many tasks in special time schedule online

Playlist editor:Media contents can be edited by software and make a list.

Multizone display:

Video, photo, text can be display at the same screen.

(freely design template)

Timing function:

Set time power on /off and automatically display and loop, 7days and 24

hours no manual operation.

Storage:Files in internal memory/SD card as local files

Display mode:Horizontal or vertical output

Remote control:Infrared remote control for terminals

Files update:Files can be transmitted to SD card automatically from server by network.

Network options:LAN OR WiFi connecting for remote control.(3G 4G is optonal)

Network management:

All management of the terminals by our software(or use your own

software APK) go through internet.

Rolling caption:Support rolling caption function ( text bar).

OS:Android system 11

Internal Memory:8GB/16GB/32GB, optional

Managing Software:Friendly interface (you can use your own apk)



System CPU RK3566, Quad  core
  RAM 2GB/4GB optional, default 2GB
  Internal memory 16GB/32GB/64GB optional, default 16GB
  Operation system Android 11
    Touch screen 10 point capacitive touchdefault none
Display Panel 32"
  Resolution 1920*1080
  Contrast ratio 1000:1
  Luminance 300cd/m2
  Aspect Ratio 16:9
Network WiFi 802.11a/b/g/n
  Buletooth Bluetooth 4.2
  Ethernet 10M/100M Ethernet
Interface USB USB host x2
  DC DC power 12V input
  TF Card slot TF
  RJ45 Ethernet port
  speaker 3W * 8Ω * 2
  Earphone 3.5mm earphone
Key Key Power key
Media play Video format MPEG-1,MPEG-2,MPEG-4,H.263,H.264,H.265,VC1,VP8,RV etc.,support up to 3840x2160
  Audio format MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP etc.
  Text processing EPUB, WORD, EXCEL, POWERPOINT, PDF,
  E-book PDF,TXT,CHM,DOC,EXCEL,EPUB,RTF,FB2
  Photo JPG,BMP,PNG

system management
APK installation APK installation
  Root permissions Original ecological Android system, open root permissions, customizable development
  Remote control Real-time remote monitoring, 7*24 hours unattended
  OTA upgrade Support OTA remote upgrades
  Camera Pre 200W/500W (default none , optional)
  Language Multi-language
Accessories Adapter Adapter,12V/3A







RK3566 Android 11 Interactive Digital Signage Display with 16GB/32GB/64GB Internal Memory Options 0RK3566 Android 11 Interactive Digital Signage Display with 16GB/32GB/64GB Internal Memory Options 1RK3566 Android 11 Interactive Digital Signage Display with 16GB/32GB/64GB Internal Memory Options 2RK3566 Android 11 Interactive Digital Signage Display with 16GB/32GB/64GB Internal Memory Options 3

About Sunchip :


SUNCHIP is an OEM / ODM factory, customizing products to tailor your needs is our strength and mission, over 130 employees’ team that including over 70 research and development engineers, who can provide services and solutions in electronic Android mainboard design for digital signage industries and domains as it is becoming a critical function in the product development life cycle, diverse categories of embedded systems such as industrial automation, consumer electronics, embedded digital signage devices and exhibition display screen.





We focus on Rockchip chipsets solution and in-depth development, also deep customization of Android OS; Specialized on LCD Digital Signage & Android ARM Board.





Sunchip is a national high-tech enterprise with various patents. Our factory runs under the ISO 9001 & ISO 14001 certification. Our products fully completely with CE, RoHS and FCC certifications.



Sunchip has become the ODM / OEM partner of a number of world-class companies. Our products have been exported to over eighty worldwide countries.We do the best we can consistently to provide excellent quality products and one-stop services for all customers.

We are looking forward to cooperating, developing and growing with you sincerely.





RK3566 Android 11 Interactive Digital Signage Display with 16GB/32GB/64GB Internal Memory Options 4





We mainly manufacture



1, Android industrial Embedded board: RK3588, RK3566, RK3568, RK3288, RK3399,

RK3328, RKPX30, RK3188, RK3128 etc.

2, 【4K】Android media player box for digital signage advertising: RK3399, RK3288, RK3328.

3, 【8K】Android Player Box for Industrial-Control Application: RK3588.

4, Stretched lcd Display signage, support ODM.

5, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.

6, SKD Kit: Android board + LCD panel with touch or not:

7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.

7, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.

8, Embedded touch desk: such as 32inch.

9, Face recognition temperature detection terminal machine: such as 8inch.



[you can also tell us your requirements, so that we advise you a matched solution]







FAQ

1) Q: Is SUNCHIP a factory or simply a trading company?

A: We are a TRUE OEM/ODM factory. Please read our COMPANY PROFILE, for more information on this issue.



2) Q: What payment methods are available to me?

A: We accept most of the payment methods: accept VISA, Pay Later,T/T,Western Union,Paypal and Cash.



3) Q: How long is the warranty time?

A: 1 Year.



4) Q: What are the shipment terms and delivery times of your company?

A: Delivery / production time is directly affected by the size of the order. Also depending in which season you are shipping.



5) Q: Do you give any discounts ?

A: Prices are directly affected by the quantity. We have many ways to help our partners when starting the sample processes. Make sure to ask our sales on how we can make you save some charges.



6) Q: I would like to add my company logo on your products, is this possible?

A: SURE.We customize on a regular basis products for many large retaillers and brands. If your order is at the below 10 units, we can consider this as a SAMPLE order, some fees might apply for the logo prints.

Different methodes are used for logos, please ask our sales for more information on this issue, we will surely find the right solution for you!



New Arrival!!!

RK3566 Android 11 Interactive Digital Signage Display with 16GB/32GB/64GB Internal Memory Options 5
8K RK3588 AIot Edge Computing industrial box with rich interfaces, which suitable for intelligent remote network control: AIoT , industrial, medical, large advertising, educational video terminals and other equipment.

Here is the product image , few box in stock now, welcome to contact me to get more details information.
