Product Details:
|
CPU: | RK3188 | Ram: | 1GB |
---|---|---|---|
Rom: | 8GB | Resolution: | 1920*1080P |
Material: | Metal | OS: | Android 4.4 Or Above |
WIFI: | 802.11 B/g/n | 4G LTE: | Optional |
Highlight: | stand alone digital signage,digital advertising player |

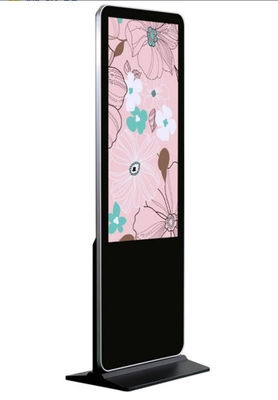

32 Inch Floor Standing Android Digital Signage With CMS Solutions
Screen specs | |
Panel size | 32 Inch |
Display area | |
Pixel Pitch | 0.0798 mm x 0.2394 mm |
Max Resolution | 1080*1920RGB |
Contrast | 16:9 |
Brightness | 350cd/㎡ |
Contrast Ratio | 5000:1(Typ.) |
Luminance uniformity | >70% |
Response Time: | 6.5ms |
Color: | 8 bit/16.7 Billion |
Backlight | LED |
Life(hrs) | >50000 |
CPU | Rockchip RK3188 Quad core Cortex-A9 GPU Mail-400 @ 533MHz |
Frequency | 1.6 GHz |
RAM | DDR3 2G Optional |
Rom | NAND FLASH 8GB |
DIF | LVDS interface(Single, 6-way, 8-way dual).Support maximum resolution 1920x1080, support 7 "-82" display. |
Onboard backlight | 12V |
LCD voltage | 3.3V/5V/12V optional |
Touch screen |
Provide I2C interface (can support multi-point resistance touch, multi-point capacitive touch). Support USB multi-point infrared touch, multi-point sound saw touch, multi-point optical touch. |
Network | Have RJ45 interface,support Ethernet. |
Have wifi&BT module,support Wi-Fi 802.11b/g/nprotocol.Support BT3.0/BT4.0 | |
Image rotation | Support 0 degree,90 degree,180 degree,270 degrees manual / automatic rotation, support gravity sensing function. |
Real Time Clock | Built-in real-time clock powered battery |
Interface device | Support DVP interface camera, the maximum support 500W pixels |
Support USB camera | |
3 USB HOST (1 motherboard, 2 small board), 1 USB OTG | |
1 group serial port. Support external serial device module (3G module, NFC module, printer, card reader, etc.) | |
1 group of I2C ports | |
SD card, maximum support 32GB | |
D class large built-in speaker, 8 oh / 3W | |
Support for microphones | |
Audio | MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP |
Video | Support H.264,VP8,RV,WMV,AVS,H.263,MPEG4 video formats such as 1080P decoding, YouTube and other online video, up to 1080P, HTML5 video playback, Flash 10.1 play |
Picture | Support JPG, BMP, PNG and other picture formats to browse and support the rotation / slide show / picture zoom |
Power Adapter | Input AC100-240V.50-60HZ, output:DC12V 3A |
Sunchip is providing services & solutions in ARM board and digital signage. We are specializing in OEM&ODM service.
