Capacitive Touch LCD Display with 10/100M /1000M Ethernet Optional Open Frame RK3399 WiFi

Capacitive Touch LCD Display with 10/100M /1000M Ethernet Optional Open Frame RK3399 WiFi
Capacitive Touch LCD Display with 10/100M /1000M Ethernet Optional Open Frame RK3399 WiFi
Capacitive Touch LCD Display with 10/100M /1000M Ethernet Optional Open Frame RK3399 WiFi Capacitive Touch LCD Display with 10/100M /1000M Ethernet Optional Open Frame RK3399 WiFi Capacitive Touch LCD Display with 10/100M /1000M Ethernet Optional Open Frame RK3399 WiFi Capacitive Touch LCD Display with 10/100M /1000M Ethernet Optional Open Frame RK3399 WiFi

Large Image :  Capacitive Touch LCD Display with 10/100M /1000M Ethernet Optional Open Frame RK3399 WiFi

Product Details:
Place of Origin: CHINA
Brand Name: SUNCHIP, ADW
Certification: CE ROHS FCC ISO9001 ISO14001
Model Number: AD-10.1inch
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: $79USD-$299USD
Packaging Details: Carton Box or Wooden Box
Delivery Time: sample 3-5 days,batch order 15-30 days
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 30,000PCS

Capacitive Touch LCD Display with 10/100M /1000M Ethernet Optional Open Frame RK3399 WiFi

Description
CPU: RK3399 Etc. Application: Indoor, Embedded, Wall Mounted
RAM: 1GB/2GB/4GB Etc. ROM: 8GB/16GB/32GB Etc.
OS: Android 7.1/other Housing: Metal
Touch: Optional Size: 8-21.5inch
Resolution: 2k/4k WIFI: Yes
LAN: 10/100M /1000M Ethernet Optional
Highlight:

RK3399 LCD Display

,

1000M Ethernet LCD Display

,

100M LCD Display

Model No: AD-P1565-3399


Monitor with built-in Android player. Ideal for installations in elevators and public spaces in general.

Easy installation of any signage software made for ANDROID platform.
Easy usage with online management via wifi network or RJ45 LAN.
Configurations from 1GB to 4GB of memory and storage from 8GB to 32GB.
Rugged construction with a clean, elegant design with tempered glass protective screen.



Characteristic:
* High performance. The RK3399 chip adopts dual core Cortex-A72+quad core Cortex-A53, which is one of the most powerful quad-core chips on the market. The RK3399 motherboard solution using this chip has a qualitative leap in performance compared to the common single-core, dual-core, and quad-core solutions on the market. It can play various formats of high-definition video screens and can handle complex interactive operations.


* High stability. The RK3399 Android integrated board adds its own unique technology to the hardware and software to ensure the stability of the product, which can make the final product reach 7*24 hours unattended.


* High integration. RK3399 Android all-in-one board integrates functions such as Ethernet, wifi, Bluetooth, 4G, power amplifier, SD card, backlight power supply, etc., which greatly simplifies the design of the whole machine. The ultra-thin motherboard design can make the design of the whole machine more beautiful.


* High scalability. 5 USB ports and 3 serial ports, which can expand more peripheral devices.





Products Pictures:

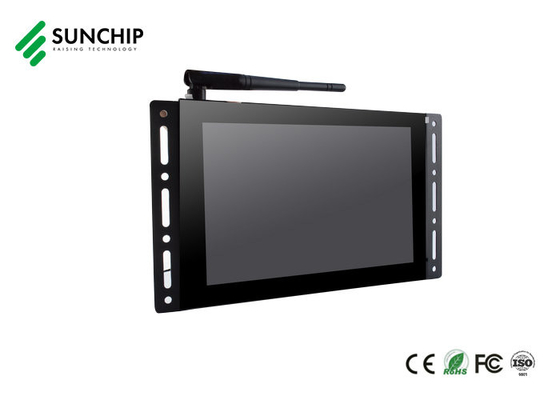

Capacitive Touch LCD Display with 10/100M /1000M Ethernet Optional Open Frame RK3399 WiFi 0

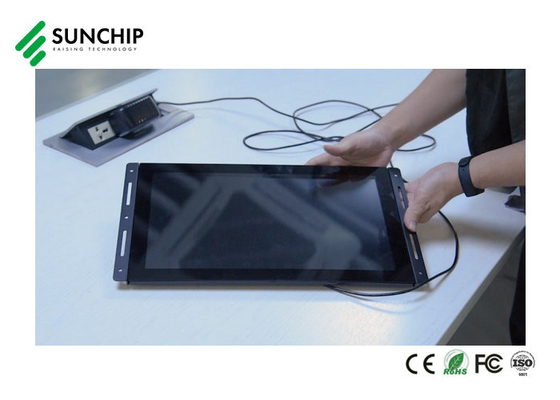

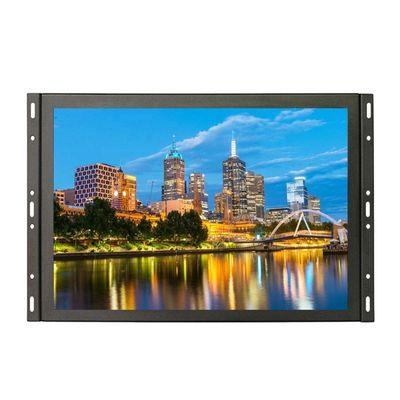

Capacitive Touch LCD Display with 10/100M /1000M Ethernet Optional Open Frame RK3399 WiFi 1Capacitive Touch LCD Display with 10/100M /1000M Ethernet Optional Open Frame RK3399 WiFi 2









Application Scenarios:

Capacitive Touch LCD Display with 10/100M /1000M Ethernet Optional Open Frame RK3399 WiFi 3



Capacitive Touch LCD Display with 10/100M /1000M Ethernet Optional Open Frame RK3399 WiFi 4



Specification


System

CPU&GPU

RK3399 dual core Cortex-A72+quad core Cortex-A53,GPU ARM Mali-T860MP4

RAM

4GB

Internal Memory

Default 16GB, 32GB/64GB optional

Operating System

Android 7.1

Touch Screen

Default 10 point capacitive touch (optional)

Display

Panel

15.6"

Resolution

1920*1080

Brightness

300cd/㎡

Aspect Ratio

16:10

Network

WiFi

802.11b/g/n

Mobile Network

Support full Netcom 4G (optional)

Bluetooth

Bluetooth 4.1

Ethernet

10M/100M/1000M Ethernet

Interfaces

USB interface

Support USB2.0 host*2

Type-C interface

Type-C*1

DC

DC power 12V input

TF card

Maximum support 64GB

HD

Support HD_4K 2.0 out

Screen interface

EDP screen interface_2K output / LVDS screen interface 1080P output(optional)

Speaker

8Ω*5W * 2(optional)

UART

UART2*1(optional)

IR remote control

Support infrared remote control

RJ45

Ethernet port

Headset

3.5mm stereo headphone output

Key

Key

Power V+ V-

Media Play

Video format

MPEG-1,MPEG-2,MPEG-4,H.263,H.264,H.265,VC1,VP8,RV etc.,support up to 3840x2160

Audio format

MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP etc.

Text processing

EPUB, WORD, EXCEL, POWERPOINT, PDF,

E-book

PDF,TXT,CHM,DOC,EXCEL,EPUB,RTF,FB2


JPG,BMP,PNG

System Management

APK install

APK installer

Root permission

Original ecological Android system, open root permissions, customizable development

Remote control

Real-time remote monitoring, system crash self recovery, 7*24 hours unattended

OTA upgrade

Support OTA remote upgrades

Camera

Pre 200W (default none , optional)

Language

Multi-language

Accessories

Adapter

Adapter, 12V/2A



About Sunchip :




Established in 2012, SUNCHIP is a high-tech engineering company specialized in designing and manufacturing Digital signage, All- in- one VR, Panorama camera, Andriod TV boxes, Andriod-based customized products, which are compliant with CE, FCC and RoHS standards. SUNCHIP has a long histroy of OEM and ODM service to many branded customers. With the strong R&D team, intelligent robot production line and strict QC and QA members, SUNCHIP is a technology-leading ODM factory. With more than 100 experienced R&D engineers' hard working, SUNCHIP have mastered a whole set solution of high-definition video encoding&decoding developing and mass production technology. SUNCHIP is the strategic partner of Rochchip, Intel, Amlogic, Samsung and Allwinner, so we always have a steady supply of reliable chipsets and unlimited technical support from the partners.



Capacitive Touch LCD Display with 10/100M /1000M Ethernet Optional Open Frame RK3399 WiFi 5





We mainly manufacture



1, Android industrial Embedded board: RK3588, RK3566, RK3568, RK3288, RK3399,

RK3328, RKPX30, RK3188, RK3128 etc.

2, 【4K】Android media player box for digital signage advertising: RK3399, RK3288, RK3328.

3, 【8K】Android Player Box for Industrial-Control Application: RK3588.

4, Stretched lcd Display signage, support ODM.

5, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.

6, SKD Kit: Android board + LCD panel with touch or not:

7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.

7, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.

8, Embedded touch desk: such as 32inch.

9, Face recognition temperature detection terminal machine: such as 8inch.



[you can also tell us your requirements, so that we advise you a matched solution]
