|CPU:||RK3568, RK3288W, RK3399 Etc.||Ram:||2GB|
|Material:||Plastic Case / Metal Case||OS:||Android 5.1 -11|
|WIFI:||802.11 B/g/n||4G LTE:||Optional|
Advertising Screen Interactive Digital Signage,
21.5'' LCD Digital Signage Display,
RK3399 LCD Digital Signage Display

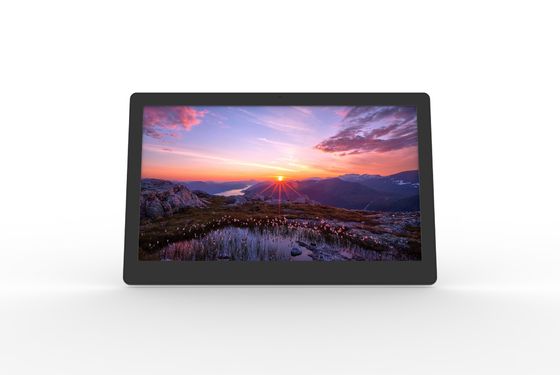

Interactive 21.5 Inch LCD Digital Signage Display HD Advertising Screen
|Panel size||18.5”, 21.5'', 23.8'', 27'', 32'', 43'' etc.|
|Color:||8 bit/16.7 Billion|
2.2 motherboard specs
Basic hardware specifications:
|CPU||Rockchip RK3568 quad-core 64-bit Cortex-A55, GPU Mali-G52|
|Main frequency||Up to 2.0 GHz|
|RAM||DDR4 2G/4G optional|
|Built-in storage capacity||EMMC 8GB/16G/32G/64G optional (label 16GB)|
|LVDS interface (single-channel, 6-bit dual-channel, 8-bit dual-channel). Support maximum resolution 1920x1080, support 7"-84" display|
|Screen voltage||Support 3.3V/5V/12V optional|
Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch).
Support USB multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch.
|With RJ45 interface, support 10/100/1000M Ethernet.|
|Equipped with WIFI &BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0|
|Image rotation||Support 0-degree, 90-degree, 180-degree, 270-degree manual/auto rotation, support gravity sensor function|
|Real Time Clock||External real-time clock power supply battery|
|Support MIPI interface camera, up to 500W pixels|
|4 USB HOST, 1 USB OTG (support usb camera@500W usb printer, U disk, mouse, keyboard, standard usb peripherals)|
|3 groups of serial ports. Support external serial device module (NFC module, printer, card reader, etc.)|
|TF card, maximum support 32GB|
|Class D power amplifier: 3W*2 8 ohms, support microphone|
|HDMI 2.0 output|
|Audio||MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP format|
|Video||Support 4K 60fps H.265/H.264/VP9 video decoding. Support 1080P 100fps H.265/H.264 video encoding. Support 8M ISP, support HDR.|
|Picture||Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function|
|Power Adapter||Input: AC100-240V.50-60HZ, output: DC12V 3A|
Basic software specifications:
|Operating system||Android 11 system|
|Basic software functions||Web browsing, web chat, email, e-book, resource manager|
|Sound effect mode||Clock, alarm clock, calculator, recording|
|Recording||Support MP3, WMA format recording|
|Weather + clock|
|Word processing||EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT|
|Input||Standard Android keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.)|
|Browser -Chrome Lite|
|System Management||Support OTA remote upgrade, U disk upgrade, SD upgrade (silent installation)|
|Original ecological Android system, open root permission, can carry out product customization development|
|Customizable local or remote server management system|
|Support a variety of third-party Android remote advertising systems|
|Support multiple serial devices, USB devices|
|Support dual-screen different display|
Sunchip is one of Apple's providers and Tesla. We are professional manufacturer, designer and solution company that established in 2012, dedicated to the development of embedded motherboards, software and hardware, and finished product manufacturing, as well as digital signage retail solutions.
We focus on Rockchip chipsets solution and in-depth development, also deep customization of Android OS & Linux OS; Specialized on LCD Digital Signage & Android ARM Board.
1. So far, there are more than 10 years of PCBA design and production experience.
In 2022, we had the 10th Anniversary Celebration.
2. A R&D team with more than 80 people, including hardware engineers (layout boards, debugging, etc.), software engineers (driver, kernel, test and apk engineers), ID design, mechanical design engineers, support OEM/OEM
3. The whole team has about 160 people.
4. One-stop service: product definition, schematic design, PCB layout design,
prototype, production, PCBA SMT, test production, housing design, assembly, software customization, QC control, after-sales etc.
5. Passed ISO9001 factory certification
6. There are more than 3,800 square meters of office and workshop area, which is still expanding.
We mainly manufacture
1, Android board for industrial digital signage, (RK3288, RK3399, RK3328, RKPX30, RK3188, RK3128, RK3566 and RK3568, ...)
2, Android digital signage media player box, (RK3328, RK3288, RK3399)
3, Stretched lcd display signage,
4, Open frame lcd display signage, (Such as, 10.1’’, 15.6’’, 21.5’’, …)
5, Other types wall/desktop/standing lcd digital signage, (from 7’’ to 84’’, ...)
6, Embedded touch desk, (Such as, 32-inch, ...)
7, Face recognition temperature detection and attendance equipment, (8-inch)
8, CMS system. (Publish contents/programs by remotely.)
Packing & Delivery:
Why Choose SUNCHIP:P
Introduction of the advantages from Sunchip:
1, More than 10 years of PCBA design and production experience.
2, A R&D team of more than 80 people, including hardware engineers (layout, debugging) and software engineers (drivers, kernels, testing, apk engineers).
ID Design engineer, Mechanical Design engineer, -> Support OEM/ODM.
3, Team of more than 160 people.
4, One-stop service: PCB design, prototype, production, PCBA SMT, testing, shell design, assembly, software customization, QC control, after-sales.
5, Got ISO9001 factory certification.
6, More than 3500 square meters of office and factory area
SUNCHIP ARM board Solution list:
RK3588, RK3566, RK3568, RK3399, RK3288, RK3328, RKPX30, RK3188, RK3128 etc.
Display interface: HDMI output, HDMI input, LVDS, EDP, MIPI.
Network optional: WIFI, Bluetooth, Ethernet, 4G, Optical.
SUNCHIP product list:
1, Android industrial Embedded board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android media player box for digital signage advertising: RK3399, RK3288, RK3328.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Stretched lcd Display signage, support ODM.
5, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
6, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
7, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
8, Embedded touch desk: such as 32inch.
9, Face recognition temperature detection terminal machine: such as 8inch.
