Product Details:
|
| OS: | Android 4.4/5/6/7/8/9/10/11 Version | Material: | Metal Case |
|---|---|---|---|
| CPU: | RK3566, RK3568, RK3288, RK3399, RK3328, RKPX30, RK3188, RK3128 Etc. | Application: | Indoor, Embedded, Wall Mounted |
| RAM: | 1GB/2GB/4GB (optional) | ROM: | 8GB/16GB/32GB (optional) |
| Touch: | Optional | Size: | 8'', 10.1'', 13.3'', 15.6'', 21.5'' Etc. Optional |
| Resolution: | Optional | Brightness: | Optional |
| WIFI: | 2.4g Or 5g WIFI Optional | LAN: | 100M Or 1000M Ethernet Optional |
| High Light: | RK3566 interactive Digital Signage,Wifi 4G interactive Digital Signage,Open Frame LCD Advertising Screen |
||

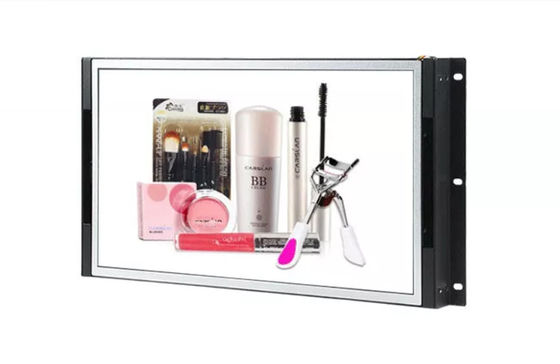

RK3566 LCD Advertising Screen Wifi 4G Ultra Thin Metal Open Frame interactive Digital Signage from Sunchip
Products Description:
| CPU | Rockchip RK3566 Quad-core A55 architecture |
| Main frequency | 1.8GHz |
| GPU | ARM Mali-G52 2EE |
| OpenGL ES 1.1/2.0/3.2 | |
| Vulkan 1.1 | |
| OpenCL 2.0 | |
| Embedded with high performance 2D acceleration hardware | |
| NPU | 1TOPS computing power, support int8/int16 |
| RAM | 2G DDR4 |
| Built-in storage capacity | EMMC 16G/32G/64G optional |
| Display Interface | HDMI2.0(maximum support 4K@60FPS) |
| MIPI display interface (MIPI and LVDS can only be selected as one) | |
| LVDS display interface (MIPI and LVDS can only be selected as one) | |
| EDP display interface | |
| Screen voltage | 3.3V/5V/12V optional |
| System | CPU |
RK3566, RK3568, RK3288, RK3399, RK3328, RKPX30, RK3188, RK3128 etc. |
| RAM | 1GB/2GB/4GB (optional) | |
| Internal memory | 8GB/16GB/32GB (optional) | |
| Operation system | Android 4.4/5/6/7/8/9/10/11 Version | |
| Touch screen | 10-point capacitive touch (optional) | |
| Display | LCD Panel | 8'', 10.1'', 13.3'', 15.6'', 21.5'' etc. optional |
| Resolution | 1280*800, 1920*1080P | |
| Contract Ratio | optional | |
| Luminance | optional | |
| Aspect Ratio | optional | |
| Network | WIFI | 802.11b/g/n (2.4G/5G WIFI Optional) |
| Mobile network | Support full Netcom 4G (optional) | |
| Bluetooth | Bluetooth 4.0/5.0 optional | |
| Ethernet | 10M/100M or 1000M Ethernet optional |
| Interface | Type-C USB | Type-C USB_OTG*1 | ||||||||||||
| DC | DC power 12V input | |||||||||||||
| SD Card reader | Maximum support 128G | |||||||||||||
| HDMI | Support HDMI output | |||||||||||||
| Speaker output | Support 8 ohm 2W speaker*2 | |||||||||||||
| Power connector | 6PIN pitch 2.0 built-in power board interface *1 (optional) | |||||||||||||
| GPIO expansion port | 4PIN spacing 2.0 GPIO external expansion port *1 (optional) | |||||||||||||
| RS232 interface | 4PIN spacing 2.0 RS232 or UART external expansion port *1 (optional) | |||||||||||||
| UART interface | 4PIN spacing 2.0 UART external expansion port *1 (optional) | |||||||||||||
| MIC interface | 2PIN spacing 2.0 MIC external expansion port *1 (optional) | |||||||||||||
| Infrared remote control; | Support built-in infrared remote control (optional) | |||||||||||||
| Infrared remote control and LED light | support 6PIN spacing 2.0 external expansion port (optional) | |||||||||||||
| USB expansion port | 4PIN spacing 2.0 supports USB host external expansion port *3 (optional) | |||||||||||||
| Key | Buttons/Keys | Power key, V+, V-; | ||||||||||||
| Media play | Video format | Support H.264, MPEG2, VP6, VP8, MVC and other video formats 2160P@24FPS decoding. YouTube and other online videos, up to 1080P, HTML5 video playback, Flash 10.1 playback |
||||||||||||
| Audio format | MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP etc. | |||||||||||||
| Text processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT | |||||||||||||
| E-book | PDF,TXT,CHM,DOC,EXCEL,EPUB,RTF,FB2 | |||||||||||||
| Photo | JPG,BMP,PNG | |||||||||||||
system management |
APK install | APK installer | ||||||||||||
| Root permission | Original ecological Android system, open root permissions, customizable development | |||||||||||||
| Remote control | Real-time remote monitoring, system crash self recovery, 7*24 hours unattended | |||||||||||||
| OTA upgrade | Support OTA remote upgrades | |||||||||||||
| Camera | Pre 2MP/5MP (default none , optional) | |||||||||||||
| Language | Multi-language | |||||||||||||
| Others | Dual screen different display | Support dual-screen different display function (optional) | ||||||||||||
| VESA interface | Support 75*75mmVESA interface | |||||||||||||
| Gravity Sensor | Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation | |||||||||||||
| Accessories | Adapter | Adapter,12V/2A | ||||||||||||
Products Pictures:
Application Scenarios:
Packing & Delivery:
Why Choose SUNCHIP:
Sunchip is a software and hardware solution provider, retailer store digital signage display solution provider, and it’s located in Shenzhen, China.
Sunchip has a huge R&D team which more than 80 employees.
They include hardware layout engineer, hardware debugging engineer, ID design engineer, mechanical design engineer, android kernel software engineer, android driver software engineer, apk development engineer, FAE software test engineer, and so on.
So, if our clients choose Sunchip, don’t need to worry about anything, we can provide one-stop service for them.
Introduction of the advantages from Sunchip:
1, More than 10 years of PCBA design and production experience.
2, A R&D team of more than 80 people, including hardware engineers (layout, debugging) and software engineers (drivers, kernels, testing, apk engineers).
ID Design engineer, Mechanical Design engineer, -> Support OEM/ODM.
3, Team of more than 160 people.
4, One-stop service: PCB design, prototype, production, PCBA SMT, testing, shell design, assembly, software customization, QC control, after-sales.
5, Got ISO9001 factory certification.
6, More than 3500 square meters of office and factory area
FAQ.:
1. who are we?
We are based in Guangdong, China, started from 2011, there are total about 160-200 people in our office.
2. how can we guarantee quality?
Always sample testing, aging testing before shipping;
Always final Inspection before shipment;
3.what can you buy from us?
AIO Advertising machine, Commercial media box, ARM board;
4. why should you buy from us not from other suppliers?
More than 10 years of R&D and production experience
More than 100 R&D team
Over 3000 square meters' factory space
Processing fully automatic assembly lines and high request working team
Owning CE/ROHS/FCC & national high-tech enterprise and patents
5. what services can we provide?
Accepted Payment Currency: USD, CNY;
Accepted Payment Type: T/T, Credit Card, Western Union, Cash, PayPal;
Language Spoken: English, Chinese
Product Quality: before-sales, after-sales services;
Recommend Products:
SUNCHIP ARM board Solution list:
RK3588, RK3566, RK3568, RK3399, RK3288, RK3328, RKPX30, RK3188, RK3128 etc.
Display interface: HDMI output, HDMI input, LVDS, EDP, MIPI.
Network optional: WIFI, Bluetooth, Ethernet, 4G, Optical.
