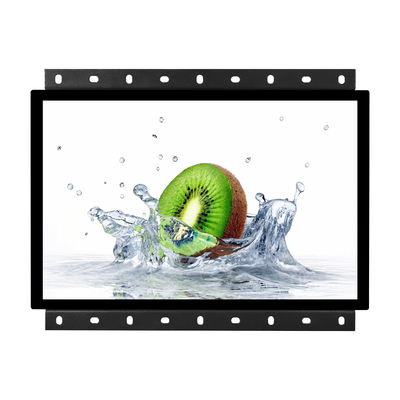

Android RK3288 Digital Signage Screen EDP LVDS Interface Open Frame LCD Display

Android RK3288 Digital Signage Screen EDP LVDS Interface Open Frame LCD Display
Android RK3288 Digital Signage Screen EDP LVDS Interface Open Frame LCD Display Android RK3288 Digital Signage Screen EDP LVDS Interface Open Frame LCD Display

Large Image :  Android RK3288 Digital Signage Screen EDP LVDS Interface Open Frame LCD Display

Product Details:
Place of Origin: Shenzhen, China
Brand Name: ADW
Certification: CE, ROHS, FCC, ISO9001
Model Number: AD-P1050-3288
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Carton / Wooden case
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 6000 Units per Month

Android RK3288 Digital Signage Screen EDP LVDS Interface Open Frame LCD Display

Description
CPU&GPU: RK3288 Quad-core Cortex-A17 @1.8G GPU Mali T764 Panel: 15.6"
Mobile Network: Support Full Netcom 4G (optional) Resolution: 800*1280
Speaker: 8Ω*5W * 2(optional) IR Remote Control: Support Infrared Remote Control
OTA Upgrade: Support OTA Remote Upgrades Photo: JPG、BMP、PNG
High Light:

Open Frame LCD Digital Signage Screen

,

EDP LVDS Digital Signage Screen

,

Android RK3288 Open Frame LCD Display



Android RK3288 High Definition WiFi Ethernet EDP LVDS Capacitive Touch Open Frame LCD Display



Model No: AD-P1050-3288



Sunchip is one of Apple's provider.We have provided advertising screen to Apple.

We are professional manufacturer and designer of LCD digital signage and Android board which was established in 2012,

we have more than 80 engineers focus on Android mainboard's software and hardware R & D, commercial media player/box(support Android and Linux OS), also provide SKD parts for LCD digital signage.





Digital signage is a new robust form of information display on digital screens. It allows static and scrolling text, digital images, videos and real-time information such as date, time and social posts to be displayed on the digital screen all at the same time. Advancement in display technology also drives the adoption of Sunchip digital signage by the mass market. Our digital signage is suitable for common types of digital display that include LED, LCD screens, digital standing kiosks, digital media boards and digital video walls. You can easily book the advertisement from this digital advertising platform.







Characteristic:

  • High performance. The RK3288 chip adopts the quad-core A17 solution, which is one of the most powerful quad-core chips on the market. The RK3288 motherboard solution using this chip has a qualitative leap in performance compared to the common single-core, dual-core, and quad-core solutions on the market. It can play various formats of high-definition video screens and can handle complex interactive operations.



  • High stability. The RK3288 Android integrated board adds its own unique technology to the hardware and software to ensure the stability of the product, which can make the final product reach 7*24 hours unattended.



  • High integration. RK3288 Android all-in-one board integrates functions such as Ethernet, wifi, Bluetooth, 4G, power amplifier, SD card, backlight power supply, etc., which greatly simplifies the design of the whole machine. The ultra-thin motherboard design can make the design of the whole machine more beautiful.



  • High scalability. 5 USB ports and 3 serial ports, which can expand more peripheral devices.







Specification of the Machine

System CPU RK3288 Quad-core Cortex-A17 @1.8G GPU Mali T764
RAM 2GB
Internal memory Default 16GB ,8GB/32GB/64GB optional
Operation system Android 7.1
Touch screen Default 10 point capacitive touch (optional)
Display Panel 10.1"
Resolution 800*1280
Luminance 300cd/㎡
Aspect Ratio 16:10
Network WiFi 802.11b/g/n
Mobile network Support full Netcom 4G (optional)
Buletooth Bluetooth 4.1
Ethernet 10M/100M/1000M Ethernet
Interface USB interface Support USB2.0 host*2
Type-c interface Type-c*1
DC DC power 12V input
TF card Maximum support 64GB
HDMI Support HDMI_4K 2.0 out
Screen interface EDP screen interface_2K output / LVDS screen interface 1080P output(optional)
speaker 8Ω*5W * 2(optional)
UART UART2*1(optional)
IR Remote Control Support infrared remote control
RJ45 Ethernet port
Headset 3.5mm stereo headphone output
Key Key Power V+ V-
Media play Video format MPEG-1,MPEG-2,MPEG-4,H.263,H.264,H.265,VC1,VP8,RV etc.,support up to 3840x2160
Audio format MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP etc.
Text processing EPUB, WORD, EXCEL, POWERPOINT, PDF,
E-book PDF,TXT,CHM,DOC,EXCEL,EPUB,RTF,FB2
Photo JPG,BMP,PNG

system management
APK install APK installer
Root permission Original ecological Android system, open root permissions, customizable development
Remote control Real-time remote monitoring, system crash self recovery, 7*24 hours unattended
OTA upgrade Support OTA remote upgrades
Camera Pre 200W (default none , optional)
Language Multi-language
Accessories Adapter Adapter,12V/2A





Android RK3288 High Definition WiFi Ethernet EDP LVDS Capacitive Touch Open Frame LCD Display 0Android RK3288 High Definition WiFi Ethernet EDP LVDS Capacitive Touch Open Frame LCD Display 1Android RK3288 High Definition WiFi Ethernet EDP LVDS Capacitive Touch Open Frame LCD Display 2Android RK3288 High Definition WiFi Ethernet EDP LVDS Capacitive Touch Open Frame LCD Display 3Android RK3288 High Definition WiFi Ethernet EDP LVDS Capacitive Touch Open Frame LCD Display 4Android RK3288 High Definition WiFi Ethernet EDP LVDS Capacitive Touch Open Frame LCD Display 5
