Product Details:
|
| CPU: | RK3288 | OS: | Android 6.0-10.0 |
|---|---|---|---|
| RAM: | 2GB/4GB (optional) | ROM: | 16GB/32GB(optional) |
| LCD Panel: | 23.8'' | Resolution: | IPS 1920*1080 |
| WIFI&BT&LAN: | Available | 4G LTE: | Optional |
| POE: | Optional | Speaker: | 3W * 8Ω * 2 |
| TF Card Slot: | Available | Micro USB: | USB_OTG |
| USB: | USB*2 | DC: | DC Power Supply 12V Input |
| Language: | Multi-language | Release System: | Support |
| Material: | Plastic | ||
| Highlight: | lcd bar display,stretch monitor display |
||

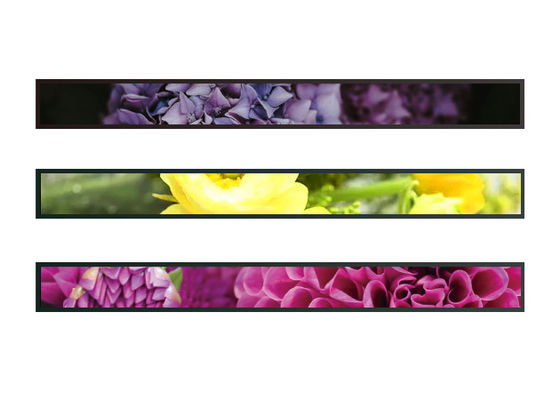

Supermarket 23.8inch Monitor Screen Type LCD Advertising Display from Sunchip
4G LTE: optional for clients.
POE: optional for clients.
Quad-Core High-Performance Board
Uses RK3288 quad-core Cortex-A17processor, supports 4K hardware decoding, has a rich expansion interface, as well as compatible with mainstream displays. It adopts the immersion gold process and has passed various pressure tests, which can be applied to the product directly.
RK3288 development board is an all-in-one high performance multi-core computing platform. Based on the Rockchip RK3288 SoC featuring an Arm Cortex-A17 (MP4) and Arm Mali-T760 (MP4), it features powerful graphics processing and video decoding ability, and support for Android OS.
High-performance Core Configuration
with RK3288 quad-core Cortex-A17 processor, frequency up to 1.8GHz, integrated quad-core Mali-T764 GPU. Its excellent performance makes products more possibilities.
| System | CPU | RK3288 | ||||||||||||
| RAM | 2GB/4GB (optional) | |||||||||||||
| Storage | 16GB/32GB(optional) | |||||||||||||
| Operation system | Android 6.0-10.0 | |||||||||||||
| Display | LCD panel | 23.8" | ||||||||||||
| Resolution | IPS 1920*1080P | |||||||||||||
| Contrast ratio | 3000:1 | |||||||||||||
| Brightness | 300cd/m2 | |||||||||||||
| Network | WiFi | 802.11b/g/n(802.11a/b/g/n/ac optional) | ||||||||||||
| Buletooth | Buletooth 5.2 | |||||||||||||
| Mobile Network | Built in 3G/4G LTE(optional, default none) | |||||||||||||
| Ethernet | 10M/100M Ethernet | |||||||||||||
| Interface | USB interface | support USB host*2 | ||||||||||||
| Micro USB | USB_OTG*1 | |||||||||||||
| DC | DC power supply 12V input | |||||||||||||
| TF card | Maximum support 32GB | |||||||||||||
| RJ45 | Ethernet port | |||||||||||||
| Speaker | 3W * 8Ω * 2 | |||||||||||||
| Media player | Video format | MPEG-1,MPEG-2,MPEG-4,H.263,H.264,H.265,VC-1,VP8,MVC etc.,max support 1080p | ||||||||||||
| Audio format | MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP format | |||||||||||||
| Image Format | Support JPG,BMP, PNG,etc,support image rotation/slide show/zoom | |||||||||||||
System management | APK installation | APK installation | ||||||||||||
| Root permission | Original Android system,open root permissions, system customization | |||||||||||||
| Remote control | Real-time remote monitoring, system crash self-recovery, 7*24 hours unattended. | |||||||||||||
| OTA upgrade | Support OTA remote upgrades | |||||||||||||
| Others | Gravity sensor | support G-sensor | ||||||||||||
| POE function | support POE (optional, default none) | |||||||||||||
| OSD Language | Multilingual OSD includes Chinese and English,etc | |||||||||||||
| Color | Black | |||||||||||||
| Accessories | Adapter | Power Adapter 12V/2A | ||||||||||||
| User manual | Standard | |||||||||||||
| Warranty Card | Standard | |||||||||||||
Scenarios:
Certifications:
Company:
Introduction of the advantages from Sunchip:
1, More than 10 years of PCBA design and production experience.
2, A R&D team of more than 80 people, including hardware engineers (layout, debugging) and software engineers (drivers, kernels, testing, apk engineers).
ID Design engineer, Mechanical Design engineer, -> Support OEM/ODM.
3, Team of more than 160 people.
4, One-stop service: PCB design, prototype, production, PCBA SMT, testing, shell design, assembly, software customization, QC control, after-sales.
5, Got ISO9001 factory certification.
6, More than 3500 square meters of office and factory area
SUNCHIP mainly manufactures:
1, Android industrial Embedded ARM board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android player box for digital signage advertising: RK3399, RK3288, RK3328 & RK3568.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
5, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
6, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
7, Embedded touch desk: such as 32inch.
8, Face recognition temperature detection terminal machine: such as 8inch.
[You can also tell us your detailed requirements, so that we advise you a matched solution]
