Product Details:
|
| Material: | Metal | OS: | Android 6.0 |
|---|---|---|---|
| CPU: | RK3128 | POE: | Optional |
| 4G LTE: | Optional | WIFI&BT: | Available |
| High Light: | lcd bar display,stretched display screen |
||

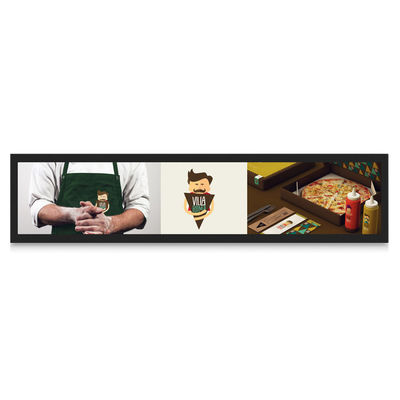

Ultra Wide Stretched LCD Bar Display for Shopping Mall And Bus Advertising
Sunchip is one of Apple's provider.We have provided advertising screen to Apple.
We are professional manufacturer and designer of LCD digital signage and Android board which was established in 2012,
we have more than 80 engineers focus on Android mainboard's software and hardware R & D, commercial media player/box(support Android and Linux OS), also provide SKD parts for LCD digital signage.
Place of Origin: Guangdong, China (Mainland)
Brand Name: ADW
Model Number: CX-ADW3840
Type: TFT
Application: Indoor
Viewing Angle: 89/89/89/89
Pixel Pitch: 0.4845(H)*0.4845 (V)
Color: 16.7M
Contrast Ratio: 5000:1
Brightness: 600cd/m2
Response Time: 8ms
Input Voltage: AC100~240V 50 /60 HZ
Warranty: 1 Year
Material: metal
Size: 38 inch
CPU: RK3188
RAM: 1GB
ROM: 8GB, 16GB, 32GB is optional
OS: Android 5.1
WIFI: WIFI IEEE 802.11 b/g/n
Max Resolution: 1920*540
Panel Size: 38 Inch
Packaging Details
Packing
1. Packing in carton and wooden.
2. As customer demand.
3. Shipping port: Shenzhen, Guangzhou.
4. Shipping: by sea, by air and by express delivery.
| System | CPU | RK3128 quad-core Cortex-A7 @1.2G GPU Mali - 400MP2 |
| RAM | DDR3 1GB/2GB (optional) , default: 1GB | |
| Internal memory | EMMc 8GB/16GB/32GB(optional),default: 8GB | |
| Operation system | Android 6.0 | |
| Touch screen | default: none | |
| Display | Panel | 38" |
| Resolution | 1920*540P | |
| Contrast ratio | 5000:1 | |
| Luminance | 600 nits | |
| viewing angle | 178(H/)178(V) | |
| Pixel Pitch | 0.4845(H)*0.4845 (V) | |
| Network | WiFi | 802.11b/g/n |
| Buletooth | Bluetooth 4.0 | |
| Ethernet | optional,default: none | |
| Interface | USB | USB host *2 |
| Mini USB | Mini USB OTG | |
| HD | optional,default: none | |
| Power jack | DC power 12V input | |
| Card slot | TF card | |
| RJ45 | optional,default: none | |
| speaker | 1pc*8Ω 5W | |
| Earphone | optional,default: none | |
| Media play | Video format | MPEG-1,MPEG-2,MPEG-4,H.263,H.264,H.265,VC1,VP8,RV etc. |
| Audio format | MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP etc. | |
| Text processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, | |
| E-book | PDF,TXT,CHM,DOC,EXCEL,EPUB,RTF,FB2 | |
| Photo | JPG,BMP,PNG | |
system management |
APK installation | APK installation |
| Root permissions | Original ecological Android system, open root permissions, customizable development | |
| Remote control | Real-time remote monitoring, system crash self recovery, 7*24 hours unattended | |
| OTA upgrade | Support OTA remote upgrades | |
| Language | Multi-language |
Available Sizes
| Diagonal | Viewing angle | Contrast | Aspect ratio |
Resolution | Display area(mm) |
Dimension(mm) | Luminance |
| 7.36" | 89/89/89/89 | 500:1 | 1280*400 | 178.56*55.8 | 192*70.6 | 400 | |
| 16.4 | 85/85/80/80 | 1000:1 | 16:2.7 | 1366*230 | 409.7*69 | 431.4*92.8*14.5 | 700 |
| 16.8" | 85/85/80/80 | 1000:1 | 16:4.4 | 1366*378 | 409.7*115.2 | 431.8*141 | 700 |
| 19.1" | 85/85/80/80 | 1000:1 | 16:2.8 | 1920*338 | 476.6*84.4 | 497.4*109.5*14.5 | 700 |
| 19.7" | 85/85/80/80 | 1000:1 | 16:5.2 | 1920*624 | 476.6*154.9 | 497.4*179.4*14.5 | |
| 19.2" | 85/85/80/80 | 1000:1 | 16:3.2 | 1920*384 | 476.6*96.3 | 497.4*120.8*14.5 | 700 |
| 21.9" | 85/85/80/80 | 1000:1 | 16:6 | 1920*720 | 521.28*195.48 | 541.9*221*14.5 | 700 |
| 24.6" | 85/85/80/80 | 1200:1 | 16:4.8 | 1920*578 | 597.9*180 | 625.4*210.2*17.5 | 700 |
| 23.9" | 85/85/80/80 | 1200:1 | 16:3 | 1920*359 | 597.9*112 | 627.1*152.5*25.8 | 700 |
| 28" | 89/89/89/89 | 5000:1 | 16:3 | 1920*360 | 698.4*131 | 729.3*167.3*19.2 | 600 |
| 28.8" | 89/89/89/89 | 1200:1 | 16:4.5 | 1366*384 | 697.68*196.12 | 739*239.4*29 | 550 |
| 88/88/88/88 | 5000:1 | 16:4.5 | 1920*540 | 698.4*196.425 | 739*239.4*29 | 550 | |
| 30" | 88/88/88/88 | 3000:1 | 16:6 | 1366*512 | 697.68*261.5 | 739.1*339*29 | 750 |
| 38" | 88/88/88/88 | 5000:1 | 16:4.5 | 1920*540 | 930.2*261.6 | 972*304*29 | 700 |
| 37.2" | 89/89/89/89 | 5000:1 | 16:3 | 1920*360 | 927.94*174.42 | 972*218*24.8 | 700 |
| 36.8" | 89/89/89/89 | 3000:1 | 16:3 | 1920*360 | 919.3*172.4 | 956.8*210.9*27 | 700 |
| 36.6" | 89/89/89/89 | 3000:1 | 16:2.4 | 1920*290 | 919.3*139 | 956.9*176.5*27 | 550 |
| 41.5" | 88/88/88/88 | 450:1 | 16:4.5 | 1920*540 | 1017.5*285.5 | 1057.5*326.5*29.7 | 770 |
| 40.8" | 88/88/88/88 | 3000:1 | 16:3 | 1920*360 | 1018.1*191.2 | 1057.5*232.2*17.9 | 550 |
| 41.9" | 89/89/89/89 | 3000:1 | 16:2 | 1920*247 | 1054.08*136 | 1092*175*24.8 | 700 |
| 43.8" | 89/89/89/89 | 3000:1 | 16:4.38 | 1920*526 | 1073.78*294.5 | 1087.9*309 | 700 |
| 44.8" | 89/89/89/89 | 3000:1 | 16:5.6 | 1920*675 | 1073.78*377.5 | 1113.9*418.7 | |
| 48.5" | 89/89/89/89 | 4000:1 | 16:3 | 1920*360 | 1209.6*226.8 | 1249.6*267.8*27 | 700 |
| 48" | 89/89/89/89 | 4000:1 | 16:2.25 | 3840*540 | 1209.6*170 | 1250.6*212.1*29.7 | 400 |
| 49.5" | 89/89/89/89 | 4000:1 | 16:4.5 | 3840*1080 | 1209.6*340.1 | 1250.6*382.2*29.7 | 620 |
| 89/89/89/89 | 4000:1 | 16:4.5 | 1920*540 | 1209.6*340.1 | 1250.6*382.2*29.7 | 700 | |
| 47.95" | 89/89/89/89 | 4000:1 | 16:1.98 | 1920*238 | 1209.6*150 | 1249.1*189.9*29.7 | 700 |
| 57.2" | 89/89/89/89 | 4000:1 | 16:3 | 1920*364 | 1429*272.2 | 1470*314.2*29 | 700 |
| 57.5" | 89/89/89/89 | 4000:1 | 16:3.375 | 1920*405 | 1428.4*301.2 | 1471.5*345.9*29 | 700 |
| 89/89/89/89 | 4000:1 | 16:3.375 | 1920*405 | 1428.4*301.2 | 1460.2*332.1*21 | 700 |
