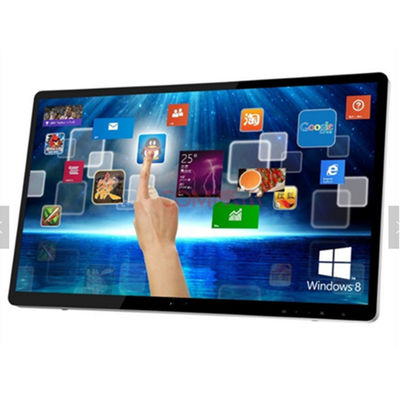

Super Slim Flat Screen Digital Signage Monitor 21.5 23.8 27 32Inch LCD advertising touch display plastic wifi machine

Super Slim Flat Screen Digital Signage Monitor 21.5 23.8 27 32Inch LCD advertising touch display plastic wifi machine
Super Slim Flat Screen Digital Signage Monitor 21.5 23.8 27 32Inch LCD advertising touch display plastic wifi machine
Super Slim Flat Screen Digital Signage Monitor 21.5 23.8 27 32Inch LCD advertising touch display plastic wifi machine Super Slim Flat Screen Digital Signage Monitor 21.5 23.8 27 32Inch LCD advertising touch display plastic wifi machine Super Slim Flat Screen Digital Signage Monitor 21.5 23.8 27 32Inch LCD advertising touch display plastic wifi machine Super Slim Flat Screen Digital Signage Monitor 21.5 23.8 27 32Inch LCD advertising touch display plastic wifi machine Super Slim Flat Screen Digital Signage Monitor 21.5 23.8 27 32Inch LCD advertising touch display plastic wifi machine Super Slim Flat Screen Digital Signage Monitor 21.5 23.8 27 32Inch LCD advertising touch display plastic wifi machine Super Slim Flat Screen Digital Signage Monitor 21.5 23.8 27 32Inch LCD advertising touch display plastic wifi machine

Large Image :  Super Slim Flat Screen Digital Signage Monitor 21.5 23.8 27 32Inch LCD advertising touch display plastic wifi machine

Product Details:
Place of Origin: CHINA
Brand Name: ADW, SUNCHIP
Certification: CE ROHS FCC ISO9001
Model Number: AD-32''-RK3288
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 1pc/color box, 2pcs or proper qty in a carton by customer request
Delivery Time: 30 days
Payment Terms: T/T, Western Union
Supply Ability: 10000 pcs per month

Super Slim Flat Screen Digital Signage Monitor 21.5 23.8 27 32Inch LCD advertising touch display plastic wifi machine

Description
CPU: RK3566 RK3568, RK3288, RK3399, RKPX30 Etc. Ram: 1GB Or 2GB
Rom: 8GB Or 16GB Resolution: 1920*1080P
Material: Metal OS: Android 4.4 Or 5.1
WIFI: 802.11 B/g/n 4G LTE: Optional
High Light:

stand alone digital signage

,

digital advertising player



Super Slim Flat Screen Digital Signage Monitor , 21.5 23.8 27 32Inch LCD Digital Signage

Super Slim Flat Screen Digital Signage Monitor 21.5 23.8 27 32Inch LCD advertising touch display plastic wifi machine 0





















motherboard specs:





CPU Rockchip RK3568 quad-core 64-bit Cortex-A55, GPU Mali-G52
Main frequency Up to 2.0 GHz
RAM DDR4 2G/4G optional
Built-in storage capacity EMMC 8GB/16G/32G/64G optional (label 16GB)

Display interface





LVDS interface (LVDS and MIPI are Only one of them can be selected)
MIPI interface (LVDS and MIPI are Only one of them can be selected)
EDP interface
Screen voltage Support 3.3V/5V/12V optional
Touch screen

Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch).

Support USB multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch.

The internet



With RJ45 interface, support 10/100/1000M Ethernet.
Equipped with WIFI &BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0
Image rotation Support 0-degree, 90-degree, 180-degree, 270-degree manual/auto rotation, support gravity sensor function
Real Time Clock External real-time clock power supply battery





Interface device







Support MIPI interface camera, up to 500W pixels
4 USB HOST, 1 USB OTG (support usb camera@500W usb printer, U disk, mouse, keyboard, standard usb peripherals)
3 groups of serial ports. Support external serial device module (NFC module, printer, card reader, etc.)
TF card, maximum support 32GB
Class D power amplifier: 3W*2 8 ohms, support microphone
HDMI 2.0 output
Audio MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP format
Video Support 4K 60fps H.265/H.264/VP9 video decoding. Support 1080P 100fps H.265/H.264 video encoding. Support 8M ISP, support HDR.
Picture Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function
Power Adapter Input: AC100-240V.50-60HZ, output: DC12V 3A



Product Name: Android Embedded ARM Board

Application Scenario: Industrial, Medical, Advertising machine, LCD digital signage, Education etc.



Application products:

It can be directly applied to a variety of products. Such as Computing Storage, Smart Robot, Game Equipment, Commercial Display, Medical Equipment, Vending Machine, Intelligent POS, Interactive Printer etc.

Product Name: Android Embedded ARM Board

Application Scenario: Industrial, Medical, Advertising machine, LCD digital signage, Education etc.

Super Slim Flat Screen Digital Signage Monitor 21.5 23.8 27 32Inch LCD advertising touch display plastic wifi machine 1Super Slim Flat Screen Digital Signage Monitor 21.5 23.8 27 32Inch LCD advertising touch display plastic wifi machine 2

Super Slim Flat Screen Digital Signage Monitor 21.5 23.8 27 32Inch LCD advertising touch display plastic wifi machine 3



Sunchip is providing services & solutions in ARM board and digital signage. We are specializing in OEM&ODM service.









Super Slim Flat Screen Digital Signage Monitor 21.5 23.8 27 32Inch LCD advertising touch display plastic wifi machine 4



WELCOME TO CONTACT US!



SUNCHIP mainly manufactures:

1, Android industrial Embedded ARM board: RK3588, RK3566, RK3568, RK3288, RK3399,

RK3328, RKPX30, RK3188, RK3128 etc.

2, 【4K】Android player box for digital signage advertising: RK3399, RK3288, RK3328 & RK3568.

3, 【8K】Android Player Box for Industrial-Control Application: RK3588.

4, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.

5, SKD Kit: Android board + LCD panel with touch or not:

7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.

6, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.

7, Embedded touch desk: such as 32inch.

8, Face recognition temperature detection terminal machine: such as 8inch.

[You can also tell us your detailed requirements, so that we advise you a matched solution]
