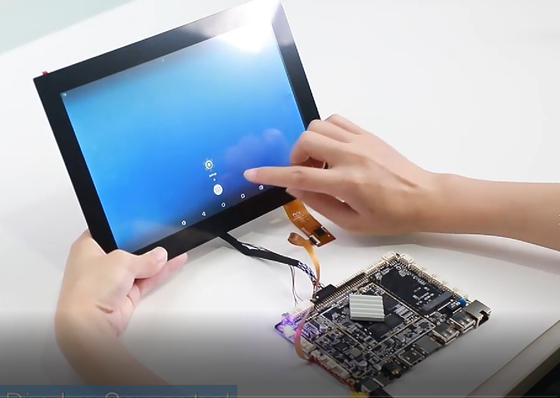

Embedded SKD Display 10.1 Inch Android Capacitive Touch Industrial Monitor for Industrial Control Projects

Embedded SKD Display 10.1 Inch Android Capacitive Touch Industrial Monitor for Industrial Control Projects
Embedded SKD Display 10.1 Inch Android Capacitive Touch Industrial Monitor for Industrial Control Projects Embedded SKD Display 10.1 Inch Android Capacitive Touch Industrial Monitor for Industrial Control Projects

Large Image :  Embedded SKD Display 10.1 Inch Android Capacitive Touch Industrial Monitor for Industrial Control Projects

Product Details:
Place of Origin: CHINA
Brand Name: SUNCHIP
Model Number: AD-10.1inch
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton or Wooden Case
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 50000 PCS / Month
Contact Now

Embedded SKD Display 10.1 Inch Android Capacitive Touch Industrial Monitor for Industrial Control Projects

Description
CPU: RK3288 /RK3399/RK3566/RK3568 Etc. (optional) OS: Android 7-14 (optional)
RAM: 2GB/4GB Etc (optional) ROM: 16GB/32GB Etc (optional)
LCD Panel: 7/8/10.1 Etc (optional) Etc (optional) Resolution: 1280*800/1920*1080
WIFI&BT&LAN: Available 4G LTE: Optional
POE: Optional TF/SD Card Slot: Available
USB: Yes DC: DC Power Supply 12V Input
Language: Multi-language





CPU Rockchip RK3288 Quad-core Cortex-A17 Quad-core GPU Mali-T764
Main frequency 1.8GHz
RAM LPDDR3 2G/4G Optional
Built-in storage capacity EMMC 8GB/16G/32G/64G Optional
Display interface MIPI Screen interface, Max resolution 1920*1080
EDP screen interface
Touch Panel

Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch).

Support USB multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch.
The internet With RJ45 interface, support 10/100 Ethernet.
Equipped with Wifi&BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0
Image rotation Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation, support gravity sensor function
Real Time Clock Built-in (optional external) real-time clock power supply battery
Interface device Support MIPI interface camera, up to 500W pixels
3 USB HOST, 1 USB OTG (support usb camera@500W usb printer, U disk, mouse, keyboard, standard usb peripherals)
3 groups of serial ports. Support external serial port device modules (3G module, NFC module, printer, card reader, etc.)
SD card, maximum support 32GB
Class D power amplifier: 3W*2 8 ohms, support microphone
HDMI 2.0 Output
Audio MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP format
Video Support H.264, MPEG2, VP6, VP8, MVC and other video formats 2160P@24FPS decoding. YouTube and other online videos, up to 4K, HTML5 video playback, Flash 10.1 playback
Picture Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function
Power Adapter Input: AC100-240V.50-60HZ, output: DC12V 3A




Embedded SKD Display 10.1 Inch Android Capacitive Touch Industrial Monitor for Industrial Control Projects 0Embedded SKD Display 10.1 Inch Android Capacitive Touch Industrial Monitor for Industrial Control Projects 1Embedded SKD Display 10.1 Inch Android Capacitive Touch Industrial Monitor for Industrial Control Projects 2



Certifications:



Embedded SKD Display 10.1 Inch Android Capacitive Touch Industrial Monitor for Industrial Control Projects 3



FAQ:

Q: Does it support RS485, RS232?

A: Some of models support RS232 port,but not support RS485,so, need to use RS232 or RS485 converter board.



Q: Does it support 12MP MIPI camera?

A: Yes, some of our models can support max. 12MP camera.



Q: What is the working and storage temperature?

A: Working temperature 0~50℃,Storage temperature -20~60℃



Q: How about your defect rate?

A: less than 3/1000



Q: Can I have firmware OTA update?

A: Yes, USB OTA or Online OTA.



Q: How about the packing list for the android motherboard?

A: Based on different board style,60pcs or 90pcs/carton.
