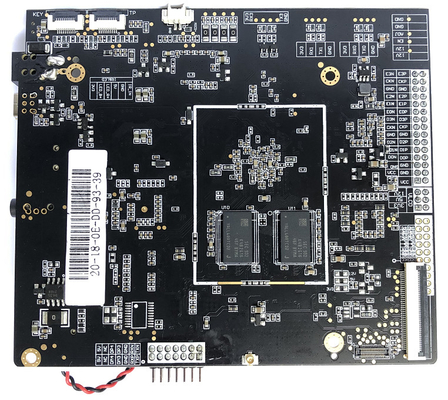

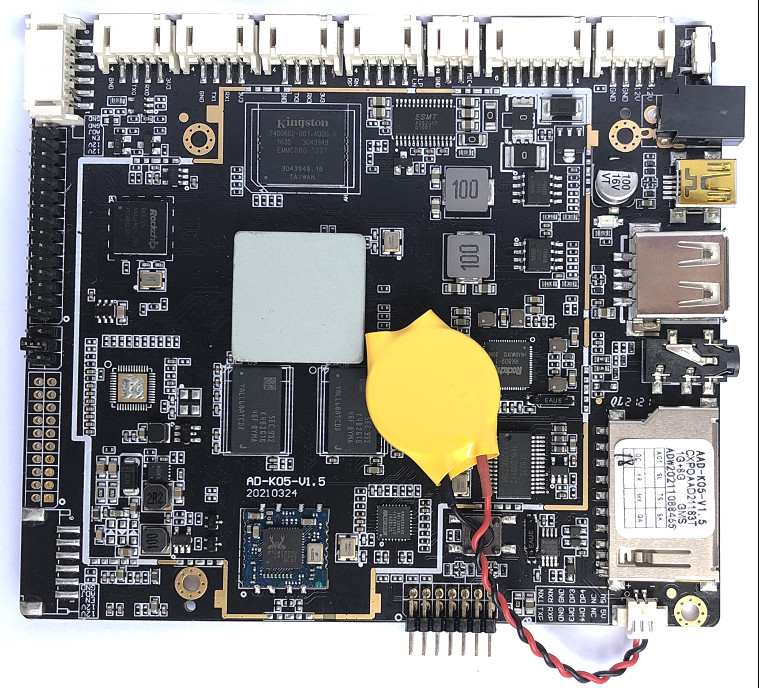

PX 30 Mainboard ,Android 8.0 operating system
Characteristic:
- Support 7-inch to 84-inch LVDS interface display (point-to-point full HD display 1920*1080).
- Support EDP interface display
- Support MIPI interface display
- A variety of interactive mode interfaces: capacitive touch, infrared touch, infrared remote control, USB mouse and keyboard, multi-point optical touch
- Various network interfaces: Ethernet, Wireless Wifi, Bluetooth.
- Multi-channel USB interface, serial port
- Strong anti-electromagnetic interference and electromagnetic compatibility
|
System
|
CPU
|
Rockchip PX30 Quad-core Cortex-A35 Mali-G31 MP2 GPU, 1.5GHz
|
|
RAM
|
DDR3 1G/2G optional
|
|
Internal memory
|
EMMC 8GB/16G/32G/64G optional (default: 8GB)
|
|
Operation system
|
Google Android 8.1
|
|
Display
|
Panel
|
7''-82" (Accept customization)
|
|
Resolution
|
1920*1080
|
|
Contrast ratio
|
1000:1
|
|
Brightness
|
about 300 cd/m2
|
|
Aspect Ratio
|
16:9
|
|
Network
|
WiFi
|
802.11 b/g/n_2.4G ( support 5G optional)
|
|
Mobile network
|
Support 4G(optional)
|
|
Ethernet
|
10M/100M Ethernet
|
|
Interface
|
--Support USB camera,
--3*USB HOST,1*USB OTG,
--3*Serial ports, support external devices
--(NFC module, printer, card reader etc.)
--Support MIPI camera, max 8MP
--D classamplifier,5W*2 8R
--support microphone *1
|
|
RJ-45
|
10/100M Ethernet port
|
|
ower adapter
|
3.5mm stereo headphone output
|
|
Display
|
Display screen
|
LVDS/EDP/MIPI Screen
|
|
System Management
|
APK install
|
APK installer
|
|
Root permission
|
Original Android system, open root permissions, product customization development
|
|
Remote control
|
Real-time remote monitoring, system crash self-recovery, 7*24 hours unattended
|
|
OTA upgrade
|
Support OTA remote upgrade
|
|
|
Touch Screen
|
Support USB IR multi touch, sonic multi touch, optical multi touch
|
|
|
RTC
|
Built in internal battery for Real time clock
|
|
Others
|
Recording
|
Support high-quality recording function (optional), default none
|
|
Camera
|
200W/500W(Optional), default none
|
|
OSD Language
|
Multi-language OSD Operation
|
Pcking and Shipment
1.Packing: carton box
2.Payment methods: accept T/T,Western Union,Paypal and Cash.
3.RMA Policy: customer bear all the freight and duty charge to factory,and the factory afford return freight charge. 4.Warranty: 12 months warranty. Paid maintenance over 12 months.
5.Remark: ROHS, CE & FCC certificates in e-file format are available.
6.MOQ: 1pc, sample order are welcome for your evaluation.
Why choose us
1.We are a professional indoor & outdoor digital signage complete solution & mass production technoloy provider.
2.We have integrate more than 100 mature supply chain to provide ONE-STOP service for hardware & software development.
3.We having our own ERP system to control our factory’s procedures help us make sure of our delivery times and product quality. Over 12 years of experience gives us the edge!
4. We currently provide OEM/ODM services for many customers worldwide. R & D design and a large number of orders are our advantages. 5. We understand that our new partners need to order samples, in fact we encourage them to do so. Once you see the quality of our products, you will understand our professional strength. 6.Our years experiences made us faster and better, our teams are truly specialized, from our R & D department to our factory workers, everyone is key to our success.
