RK3288 Quad-core Board Supports Android 7.1 And Above OS Suitable For Intelligent Industrial Medical Advertising Device

Digital Signage Rockchip RK3288 Board Android Control With LVDS Output

Rockchip RK3288 Cortex-A17 Android PCBA Motherboard Digital Signage Android Control Board With LVDS Output​

(Model NO.:AD-Z33 / AD-Z33M )

Intelligent industrial all-in-one large board, using Rockchip RK3288 quad-core chip solution. Support Android 7.1 and above system. Enhanced power management circuit. Support common external devices. Rich interface and stable performance. Suitable for intelligent remote network control: class industrial, medical, large advertising machines, educational video terminals and other equipment.

* Quad-Core High-Performance Board
Uses RK3288 quad-core Cortex-A17processor, supports 4K hardware decoding, has a rich expansion interface, as well as compatible with mainstream displays. It adopts the immersion gold processand has passed various pressure tests, which can be applied to the product directly.

* High-performance Core Configuration
with RK3288 quad-core Cortex-A17 processor, frequency up to 1.8GHz, integrated quad-core Mali-T764 GPU. Its excellent performance makes products more possibilities.

* Powerful Hardware Decoding Capability
It supports LVDS/EDP/HD-MI display interfaces, 4K hardware decoding, dual-screen identical display/dual-screen differential display, and can drive the mainstream 5~100 inch display directly.

** Summary:

The big board of intelligent industrial all-in-one machine adopts Rockchip RK3288 quad-core chip solution. Support Android8.0 and above system. Enhanced power management circuitry. Support common external devices. Rich interfaces and stable performance. Suitable for intelligent remote network control: industrial, medical, large advertising machines, educational video terminals and other equipment.

** Features:

- Supports various LVDS interface displays from 7 inches to 84 inches

(point-to-point full HD display 1920*1080).

- Support EDP interface display.

- Multiple interactive mode interfaces:

capacitive touch, infrared touch, infrared remote control, USB mouse and keyboard, multi-point optical touch.

- Multiple network interfaces: Ethernet, Wireless Wifi, Bluetooth.

- Multi-channel USB interface, serial port.

- Strong anti-electromagnetic interference and electromagnetic compatibility.

* Basic hardware specifications:

* Basic software specifications:

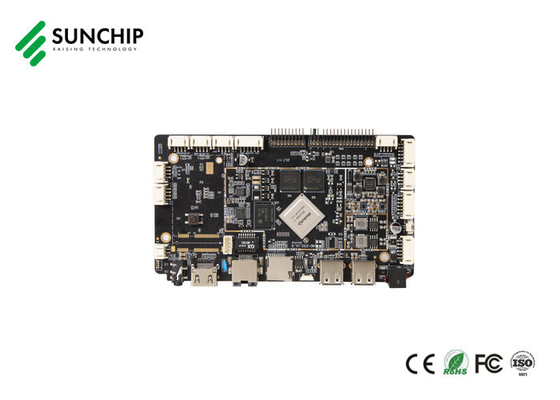

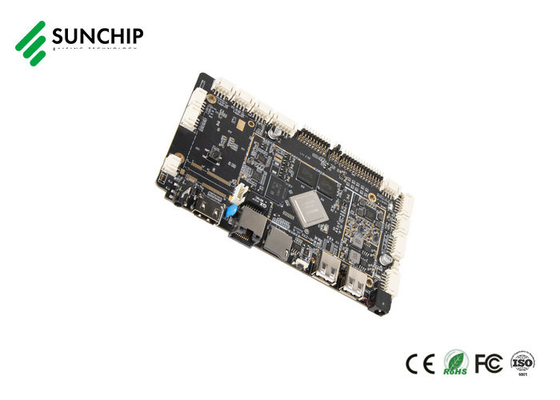

Android board images:

Application Scenarios:

3288 can be directly applied to a variety of products. Such as Computing Storage, Smart Robot, Game Equipment, Commercial Display, Medical Equipment, Vending Machine, Intelligent POS, Interactive Printer etc.

Support 4G lte network:

Sunchip introduction:

FAQ

1) Q: Is SUNCHIP a factory or simply a trading company?

A: We are a TRUE OEM/ODM factory. Please read our COMPANY PROFILE, for more information on this issue.

2) Q: What payment methods are available to me?

A: We accept most of the payment methods: accept VISA, Pay Later,T/T,Western Union,Paypal and Cash.

3) Q: How long is the warranty time?

A: 1 Year.

4) Q: What are the shipment terms and delivery times of your company?

A: Delivery / production time is directly affected by the size of the order. Also depending in which season you are shipping.

5) Q: Do you give any discounts ?

A: Prices are directly affected by the quantity. We have many ways to help our partners when starting the sample processes. Make sure to ask our sales on how we can make you save some charges.

6) Q: I would like to add my company logo on your products, is this possible?

A: SURE.We customize on a regular basis products for many large retaillers and brands. If your order is at the below 10 units, we can consider this as a SAMPLE order, some fees might apply for the logo prints.

Different methodes are used for logos, please ask our sales for more information on this issue, we will surely find the right solution for you!
