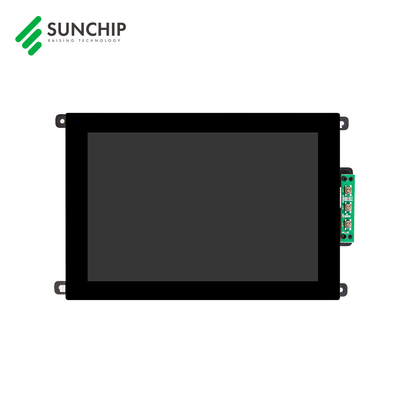

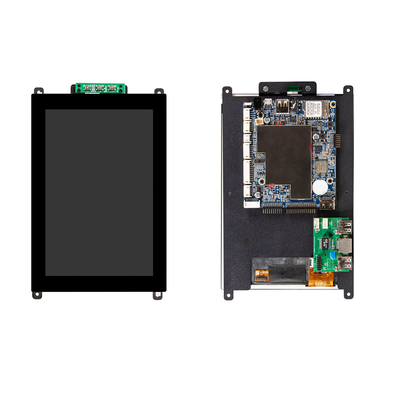

Factory 10.1 Inch Mipi LCD CTP Touch Screen With RK3288 Android PCBA Control Board
Feature
◆ High-performance: ARM cortex-A17 Quad-core CPU+Mali-T76x GPU and 2GB DDRAM. Capable of playing 4K*2K UHD videos and handling complex interactive operations.
◆High Robustness: Can achieve 7*24 hours unattended.
◆High level of integration: Integrated with gigabit Ethernet, Wi-Fi, Blue tooth, 6W audio amplifier, TF card reader, IR remote control, HD output, LVDS, eDP, microphone,etc. It is greatly simplify the design of the whole machine.
◆ High definition high brightness LCD , sensitive touch
◆ Customization , more optionals
AD-Z37M is a smart solution adopts with RK3288 quad core chipset,running android 9.0/Android 7.1 /Android 6.0 OS,Linux OS can also be supported.
Integrated with multimedia decoding,LCD driving,Network functions,amplifier in one board.
It compatible with most of popular video&audio format,support display 4K video,could be use as android box for media displaying.
Comes with features : High integrated, High definition,Build in amplifier,Rich function interfaces ,Easy management.
This smart android board integrated with smart OS and rich function interfaces on one board,
Is great suitable for applying on high definition network media box, advertising displays, frame displays,interactive displays,security system,and smart industrial control. etc.
Specifications
| System |
CPU |
Rockchip RK3288 Quad-core Cortex-A17 Quad-core GPU Mali-T764 |
| Frequency |
1.8GHZ |
| RAM |
2GB/4GB (optional) |
| Internal Storage |
16/32GB(optional) |
| Operating System |
Android 6.0/7.1/8.0/9.0/10.0 |
| Interaction Method |
Touch screen |
10-point capacitive touch (optional) |
| Display |
LCD panel |
10.1" HD IPS screen |
| Resoluton |
1280*800 |
| Viewable Area |
216.58(H)x135.36mm(V) |
| Viewing Angle |
89/89/89/89 |
| Contrast Ratio |
800 |
| Luminance |
300cd/m2(optional) |
| Aspect Ratio |
16:10 |
| Network |
WiFi |
802.11b/g/n |
| Bluetooth |
Bluetooth 4.0 |
| Ethernet |
10M/100M network port |
| Interface |
USB_A*3 |
USB host*3 |
| Mini USB |
Mini USB OTG |
| SD card |
SD card port*1, support 64G |
| RJ45 |
Ethernet port |
| DC |
DC power 12V input |
| Headphone |
3.5mm stereo headphone output |
| Media play |
Video format |
MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etc.,support up to 1920x1080p |
| Audio format |
MP3/WMA/AAC etc. |
| Image format |
jpeg |
| Other |
UART |
Support UART communication expansion port*3 groups |
| Speaker |
Support 5W*2 dual channel speaker interface 1 group |
| Camera |
Support MIPI camera interface a group of up to 8 million |
| MIC |
Support a set of MIC interface |
| Battery |
Built-in clock-powered battery |
| Operating temperature |
0°C-50°C |
| OSD language |
Multiple languages |
| Key |
Supports three keys |
Power button, volume +, volume - (default no keypad) |
| Installation |
Installation method |
Screw fixing hole embedded installation (can be customized according to the actual use environment of customers) |
| Accessories |
Adapter |
Power adapter 12V/2A |
| Antenna |
Built-in 2-in-1 WIFI/BT antenna |
| Package |
Neutral package |
Service:
1. PCBA design
2. Housing design
3. Software and hardware customization
4. Logo print on housing
5. Software customization: Booting image, Boot animation,UI, Launcher, APP, Function
6. Good quality products
7. full after-sales service with technology support
8.100% QC check before shipping
