Sunchip RK3588 Android 12.0 AI NPU 6.0tops Media Player Intelligent Industrial Edge Computing Device

Sunchip RK3588 Android 12.0 AI NPU 6.0tops Media Player Intelligent Industrial Edge Computing Device
Sunchip RK3588 Android 12.0 AI NPU 6.0tops Media Player Intelligent Industrial Edge Computing Device
Sunchip RK3588 Android 12.0 AI NPU 6.0tops Media Player Intelligent Industrial Edge Computing Device Sunchip RK3588 Android 12.0 AI NPU 6.0tops Media Player Intelligent Industrial Edge Computing Device Sunchip RK3588 Android 12.0 AI NPU 6.0tops Media Player Intelligent Industrial Edge Computing Device

Large Image :  Sunchip RK3588 Android 12.0 AI NPU 6.0tops Media Player Intelligent Industrial Edge Computing Device

Product Details:
Place of Origin: CN
Brand Name: ADW Sunchip
Certification: CE FCC ROSH
Model Number: AD-0160 box
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: 1pc/box, 5pcs in a carton
Delivery Time: 1~3 days if have stock, 15-30 days if no stock
Payment Terms: T/T, Western Union, L/C
Supply Ability: 5000 pcs per month
Contact Now

Sunchip RK3588 Android 12.0 AI NPU 6.0tops Media Player Intelligent Industrial Edge Computing Device

Description
CPU: RK3588 Android 12 Device GPU: Mali G610
NPU: 6Tops MCU: For Low Power Contro
RAM: 4G/8GB/16G (optional) Internal Memory: 32GB/64GB/128GB/256GB(optional)
Operating System: Android 12 Dual Wired Network: Dual Gigabit Ethernet
Mobile Network: Supports Wireless 4G Network Bluetooth: Bluetooth 5.0
Power Supply: 12V/3A TF Card: Maximum Support 64GB
Network: WIFI, BT, LAN, 4G Lte Housing Material: Metal
Application: Advertising Display Etc Max Resolution Output: 8K
Other Interface: RS232 X1 Display Port: HD, DP, LVDS,
Highlight:

Intelligent Industrial Edge Computing Device

,

Android 12.0 Media Player

,

Sunchip RK3588 Media Player

RK3588 Octa Core Embedded Industrial Edge Computing Rk3588 AI NPU 6.0tops Box Computer Android 12.0





Product OverView:

-1. Intelligent industrial all-in-one large board, using Rockchip RK3588 octa-core chip solution.

-2. Support Android 12 system. Enhanced power management circuit, support common external devices, rich interface, stable performance.

-3. Suitable for intelligent remote network control: class industrial, medical, large advertising machines, educational video terminals and other equipment.



Main Feature::

1. Octa-Core, 8K output, 4K hardware decoding;

2. Main frequency up to 2.4GhZ;

3. RK3588 performance is higher 3.3 times than RK3399

4. Android 12 OS;

5. Rich interfaces, including RS232,RS485, USB 3.0, HD -MI, DP, etc.

6. Network: 2.4G & 5G WIFI; Bluetooth 5.0; 4G LTE Optional; Dual Gigabit Ethernet ;

7. Build-in M.2 SSD Extended interface (SSD optional)

Sunchip RK3588 Android 12.0 AI NPU 6.0tops Media Player Intelligent Industrial Edge Computing Device 0Sunchip RK3588 Android 12.0 AI NPU 6.0tops Media Player Intelligent Industrial Edge Computing Device 1Sunchip RK3588 Android 12.0 AI NPU 6.0tops Media Player Intelligent Industrial Edge Computing Device 2Sunchip RK3588 Android 12.0 AI NPU 6.0tops Media Player Intelligent Industrial Edge Computing Device 3
System CPU RK3588 8-core CPU 8nm process 4 Cortex-A76 and 4 Cortex-A55
  GPU ARM Mali G610 MP4 GPU
  NPU INT4/INT8/INT16/FP16 mixed computing capability with up to 6TOPs of computing power (INT8)
  RAM 8GB/16G (optional)
  Memory 32GB/64GB/128GB/256GB (optional)
  Operating System Android 12
Network WiFi IEEE 802.11 a/b/g/n/ac
  Dual wired network Support 1000M wired network network*2
  Mobile Network Support wireless 4G network
  Bluetooth BT5.0

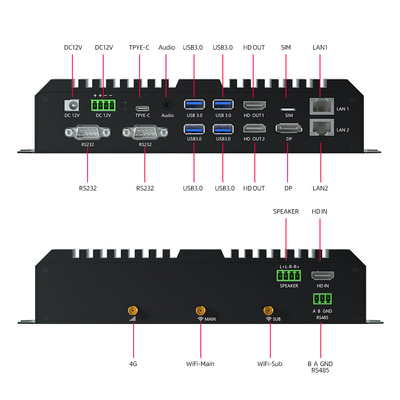

Motherboard Interface TYPE_C Standard Type_c*1
  DC holder*1 Front 5.5/2.5mm
  DC terminal input interface*1 4PIN pitch 3.81 terminal power input port*1
  Headphones 3.5MM support stereo with MIC headphone output port
  USB 3.0 USB 3.0_A port*2
  HDMI_OUT 1 Support HDMI 2.1 _OUT*1 (maximum support 7680*4320 60HZ output for single HDMI display)
  SIM card SIM card port*1
  Ethernet port Support 10/100/1000M Ethernet*1
  Horn Dual channel 4 Europe 5W speaker interface 4PIN spacing 3.81mm green terminals * 1
  HDMI_IN Support HDMI 2.0_4K input*1
Sub-board interface RS232 COM port RS232 output port DB9*2
  USB 3.0 USB 3.0_A port*2
  HDMI_OUT 2 HDMI 4K 60HZ output*1 (this interface does not work when HDMI_OUT 1 is selected to output 8K)
  DP display interface DP display output interface*1 7680x4320@30Hz output*1
  Ethernet port Support 10/100/1000M Ethernet*1
  M.2 internal SSD interface M.2 built-in SSD expansion interface*1
  RS485 RS485 3PIN pitch 3.81 green terminal block*1
Environmental parameters General working temperature/humidity Temperature:-20-60℃ Humidity 5%-85%RH(non-condensing)
  General storage temperature/humidity Temperature:-20-70℃ Humidity 5%-85%RH(non-condensing)
Housing Color Black
  Material Aluminum alloy + metal profile
Size Motherboard Size 200*125mm
  Sub-board size 200*125mm
  Whole machine size 244*128*49.5mm
Other Indicator light Red and blue 2 colors
  Button Upgrade key*1
  Power adapter DC:12V/3A





About Sunchip :


SUNCHIP is an OEM / ODM factory, customizing products to tailor your needs is our strength and mission, over 130 employees’ team that including over 70 research and development engineers, who can provide services and solutions in electronic Android mainboard design for digital signage industries and domains as it is becoming a critical function in the product development life cycle, diverse categories of embedded systems such as industrial automation, consumer electronics, embedded digital signage devices and exhibition display screen.





Sunchip has become the ODM / OEM partner of a number of world-class companies. Our products have been exported to over eighty worldwide countries.We do the best we can consistently to provide excellent quality products and one-stop services for all customers.

We are looking forward to cooperating, developing and growing with you sincerely.
