Quad-core RK3568 Android Media Player,Android 11 OS.

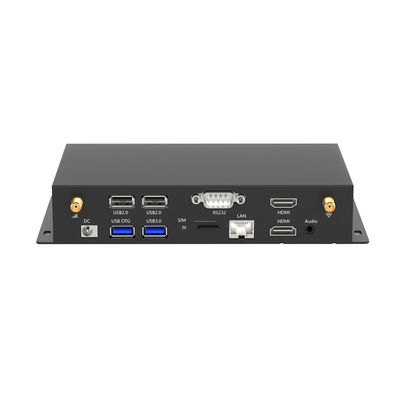

Product pictures
Features:
High performance: The RK3288 chip uses the quad-core A17 solution and is one of the most powerful quad-core chips on the market. Compared with the common single-core, dual-core and quad-core solutions in the market, it has a qualitative leap in performance, can play high-definition video in various formats, and can process the complex interactive operations.
High stability: RK3288 Android integrated board, add their own unique technology in the hardware&software to ensure the stability of the product. To make sure the device 7*24 hours unattended.
High integration: RK3288 Android integrated board integrates Ethernet, wifi, Bluetooth, 4G, power amplifier, SD card, backlight power supply and other functions, greatly simplifying the design of the device. The ultra-thin motherboard makes the design of the device more beautiful.
Multi interfaces: 6*USB ports, 3*UART ports, can connect more peripheral devices.
Application Field
■ Commercial advertising display machine
■ POS machine
■ Digital photo frame advertising machine
■ Touch all-in-one machine
■ Self-service vending machine
■ Vending / Kiosk
■ Media player box
■ Face recognition device
■ Roboter
Basic hardware specifications:
| System |
CPU&GPU |
Rockchip RK3568 quad-core 64-bit Cortex-A55, GPU Mali-G52 |
| RAM |
2GB/4G (optional) |
| Internal Storage |
8GB/16GB/32GB/64GB(optional) |
| OS |
Android 11 |
| Network |
WiFi |
IEEE 802.11b/g/n(optional) |
| Ethernet |
Support 10/100/1000M Ethernet |
| Mobile Network |
Support wireless 4G network(optional) |
| Bluetooth |
Bluetooth5.2 |
| Interface |
RS232 |
RS232 com port, male head DB9*1 |
| USB 2.0 |
USB 2.0_A*2 |
| HDMI_OUT_2 |
HDMI-A output supporting 1920*1080 60HZ |
| DC holder*1 |
DC_12V input 5.5*2.1mm plug |
| Headphone |
3.5mm stereo headphone output |
| USB_OTG |
USB_A*1 |
| USB 3.0 |
USB 3.0_A*1 |
| HDMI_OUT_1 |
HDMI-A 2.0 output(supporting 3840*2160 60HZ) |
| SIM card |
SIM card slot*1(optional) |
| Extended memory port |
TF card slot*1 |
| Button |
Button |
Upgrade button*1 |
| Environmental Conditions |
Working Environment |
Temperature:-20~60℃,5%-85%RH (No condensation) |
| Storage environment |
Temperature:-20~70℃,5%-95%RH (No condensation) |
| Material |
Shell material |
Metal |
| Size |
Product Size |
Shell size:190.6*98.9*34.7mm |
