4GB 16GB AIoT WIFI RK3568 Android 11 Advertising 4K HD Media Player Box With RS232

Overview:

The intelligent industrial all-in-one machine adopts the Rockchip RK3568 quad-core chip solution. Support Android 11 system. Enhanced power management circuit. Support commonly used external devices. Rich interfaces and stable performance. Suitable for intelligent remote network control: equipment such as industrial, medical, large advertising machines, educational video terminals and other equipment.





Basic specifications:

System	CPU&GPU		Rockchip RK3568 quad-core 64-bit Cortex-A55, GPU Mali-G52
	RAM		2GB/4G (optional)
	Internal Storage		8GB/16GB/32GB/64GB(optional)
	OS		Android 11
Network	WiFi		IEEE 802.11b/g/n(optional)
	Ethernet		Support 10/100/1000M Ethernet
	Mobile Network		Support wireless 4G network(optional)
	Bluetooth		Bluetooth5.2



Interface	RS232		RS232 com port, male head DB9*1
	USB 2.0		USB 2.0_A*2
	HDMI_OUT_2		HDMI-A output supporting 1920*1080 60HZ
	DC holder*1		DC_12V input 5.5*2.1mm plug
	Headphone		3.5mm stereo headphone output
	USB_OTG		USB_A*1
	USB 3.0		USB 3.0_A*1
	HDMI_OUT_1		HDMI-A 2.0 output(supporting 3840*2160 60HZ)
	SIM card		SIM card slot*1(optional)
	Extended memory port		TF card slot*1



Button	Button		Upgrade button*1
Environmental Conditions	Working Environment		Temperature:-20~60℃,5%-85%RH (No condensation)
	Storage environment		Temperature:-20~70℃,5%-95%RH (No condensation)
Material	Shell material		Metal
Size	Product Size		Shell size:190.6*98.9*34.7mm

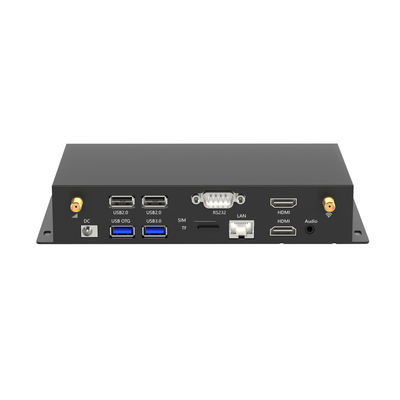

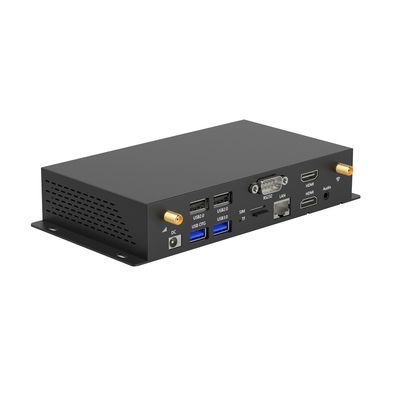

Product pictures:



WELCOME TO INQUIRY US ANY TIME. THANKS IN ADVANCE!
