Product Details:
|
| Touch Screen: | 10-point Capacitive Touch (optional) | Resolution: | 1280*800 |
|---|---|---|---|
| Viewing Angle: | 85/85/85/85 | Luminance: | 300cd/m2(optional) |
| CPU: | Rockchip RK3288 | Display Size: | 7 Inch |
| Android OS: | Android 8.0 | RAM: | 1GB |
| ROM: | 8GB | Customize: | YES,LOW MOQ |
| Brand Name: | Sunchip | Place Of Origin: | China |
| Functions: | LAN, WIFI, BT, Etc. | External Equipment: | Support Mouse, Keyboard, Printer, QR Scanner, Camera, Etc. |
| Highlight: | 7 Inch Android Embedded Board,BT Android Embedded Board,LAN Android Embedded Board |
||

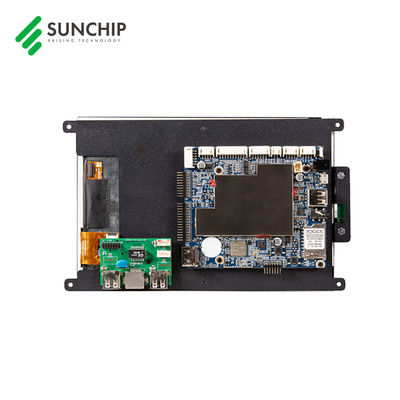

WIFI LAN BT Rockchip PX30 UART USB HD 7 Inch Touch Interactive Android Embedded LCD Display Module
Model: AD-07E
Cheap,Small/Medium size, Flexible & Easy-to-Modify Embedded LCD Solution
Feature:
--. Support Dual LVDS; MIPI; display interface; support 7 inch to 10.1-inch Dual LVDS display interface (point-to-point full HD display 1920*1080).
--. Multiple interactive mode interfaces: capacitive touch, infrared touch, infrared remote control, USB mouse and keyboard, multi-point optical touch.
--. Multiple network interfaces: Ethernet, wireless Wi-fi, Bluetooth.
--. Multi-channel USB interface, serial port, IO port output.
--. Strong resistance to electromagnetic interference and electromagnetic compatibility.
PRODUCT INFORMATION:
| System | CPU | Rockchip RK-PX30 Quad-core Cortex-A35 Mali-G31 MP2 GPU | ||||||||||||
| Frequency | 1.5GHZ | |||||||||||||
| RAM | 1GB(optional) | |||||||||||||
| Internal storage | 8GB(optional) | |||||||||||||
| Operating System | Android 8.0 | |||||||||||||
| Interaction Method | Touch screen | 10-point capacitive touch (optional) | ||||||||||||
| Display | LCD panel | 7" HD IPS screen | ||||||||||||
| Resolution | 1280*800 | |||||||||||||
| Viewable Area | 150.72(H)x94.2mm(V) | |||||||||||||
| Viewing Angle | 85/85/85/85 | |||||||||||||
| Contrast Ratio | 800 | |||||||||||||
| Luminance | 300cd/m2(optional) | |||||||||||||
| Aspect Ratio | 16:10 | |||||||||||||
| Network | WiFi | 802.11b/g/n | ||||||||||||
| Bluetooth | Bluetooth 4.0 | |||||||||||||
| Ethernet | 10M/100M network port | |||||||||||||
| Interface | USB_A*3 | USB host*3 | ||||||||||||
| Mini USB | Mini USB OTG | |||||||||||||
| SD card | SD card port*1, support 64G | |||||||||||||
| RJ45 | Ethernet port | |||||||||||||
| DC | DC power 12V input | |||||||||||||
| Headphone | 3.5mm stereo headphone output | |||||||||||||
| Media play | Video format | MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etc.,support up to 1920x1080p | ||||||||||||
| Audio format | MP3/WMA/AAC etc. | |||||||||||||
| Image format | jpeg | |||||||||||||
| Other | UART | Support UART communication expansion port*3 groups | ||||||||||||
| Speaker | Support 5W*2 dual channel speaker interface 1 group | |||||||||||||
| Camera | Support MIPI camera interface a group of up to 8 million | |||||||||||||
| MIC | Support a set of MIC interface | |||||||||||||
| Battery | Built-in clock-powered battery | |||||||||||||
| Operating temperature | 0°C-50°C | |||||||||||||
| OSD language | Multiple languages | |||||||||||||
| Key | Supports three keys | Power button, volume +, volume - (default no keypad) | ||||||||||||
| Installation | Installation method | Screw fixing hole embedded installation (can be customized according to the actual use environment of customers) | ||||||||||||
